This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.55 inches by 39.37 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

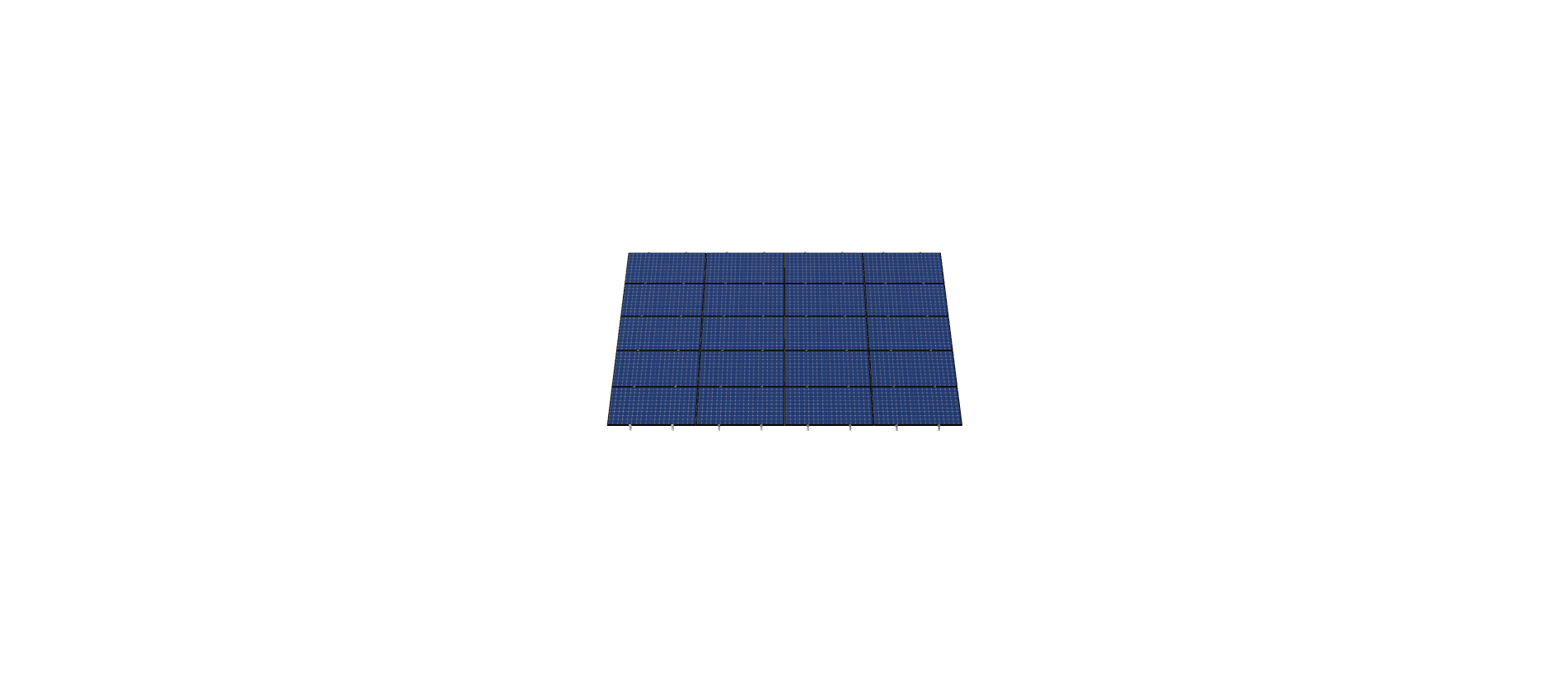

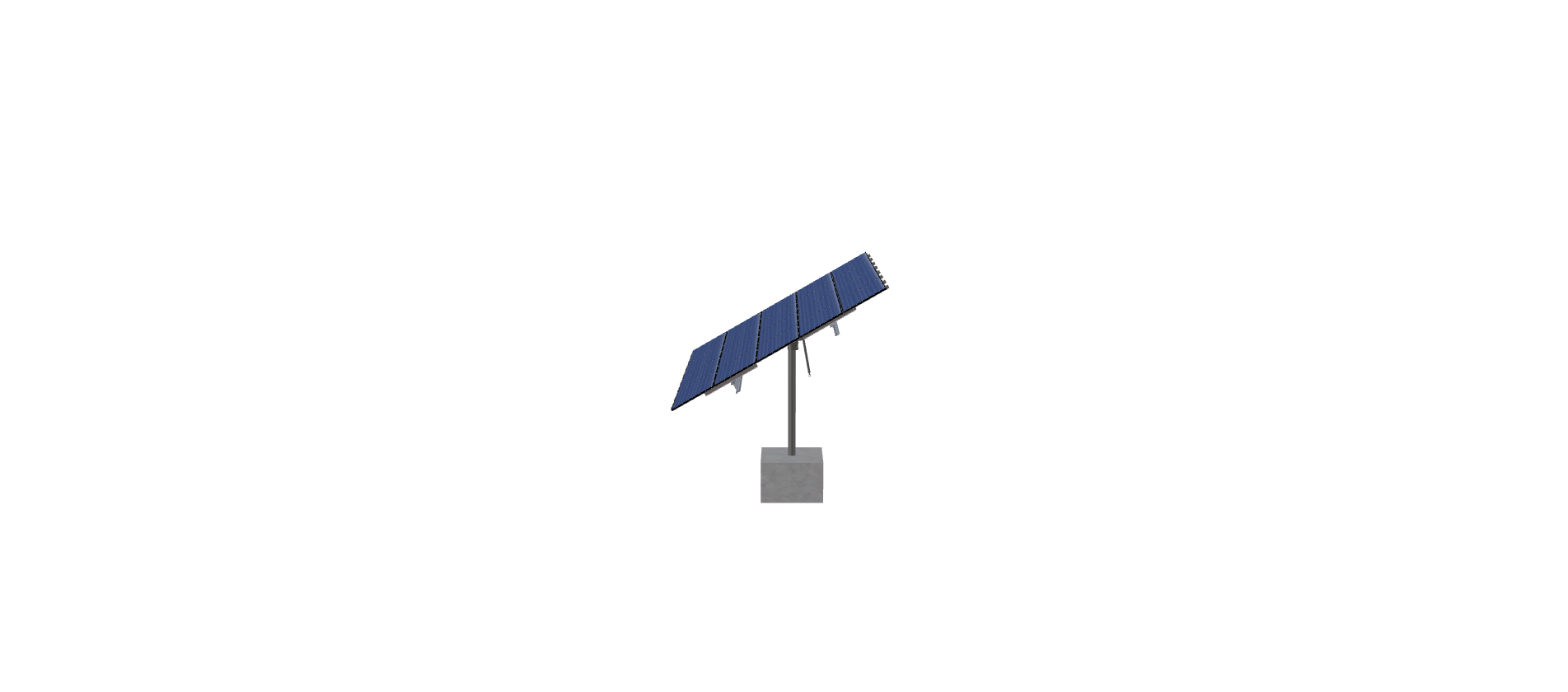

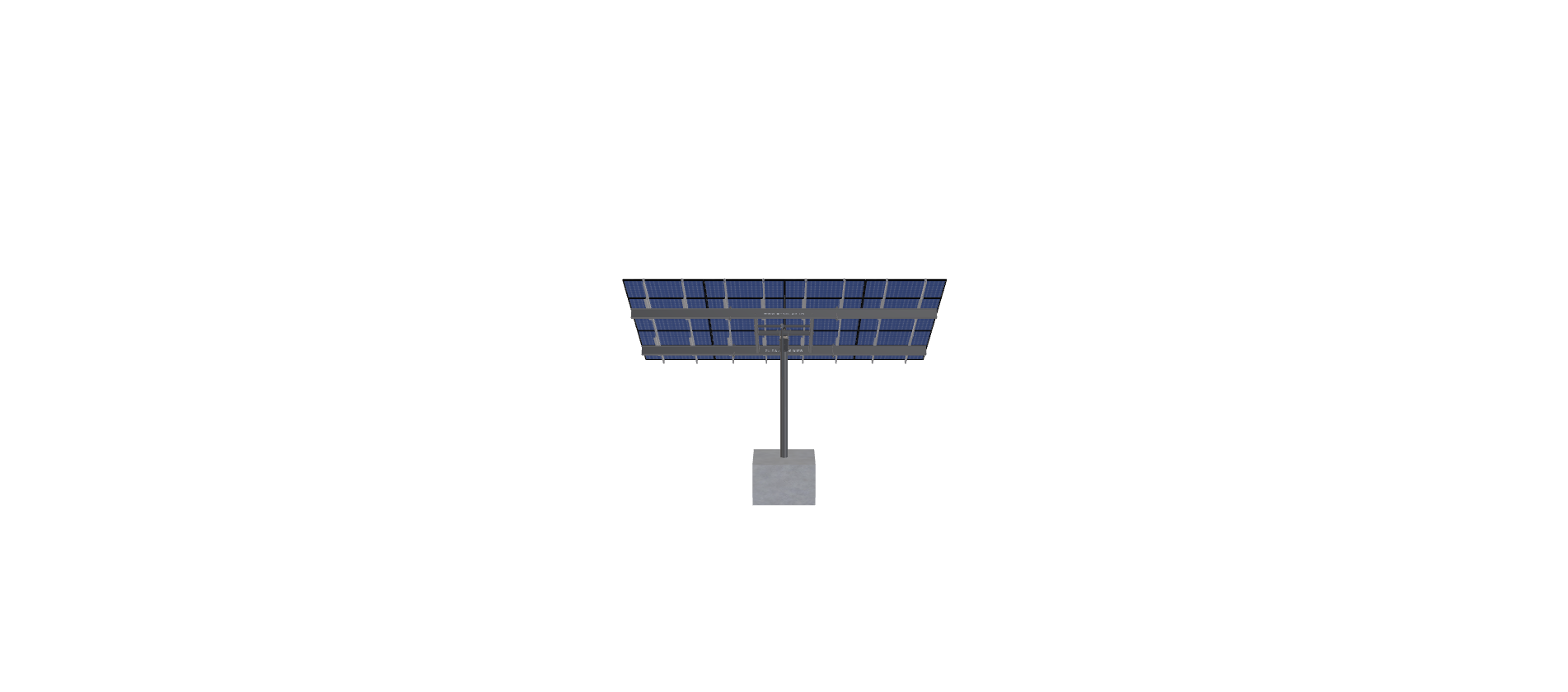

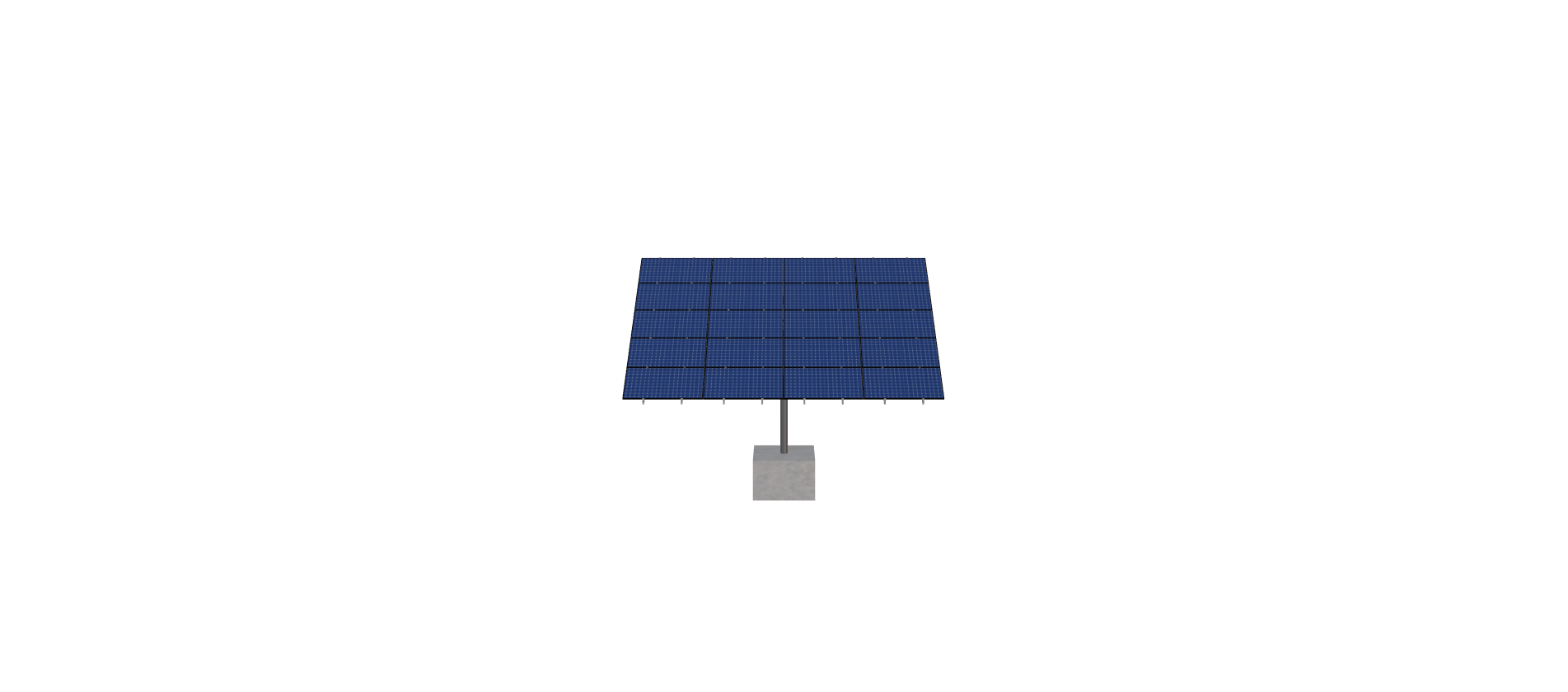

See 3D Model Here
CHriss Merrial – top 20- Earth ship
$6,860.26
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.55 inches by 39.37 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1333.21 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-XD-84-L-5HX4W-44GH |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 9.15 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 3.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 368.52 |
| ARRAY WIDTH | 22.18 |
| ARRAY HEIGHT | 16.61 |
| RAIL LENGTH | 199.35 |
| MODULE LENGTH | 65.55 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 13.25 |
| PROJECTED PANEL HEIGHT | 8.20 |
| PROJECT ID | CHRISS, MERRIAL, -, TOP, 20-, EARTH, SHIP |
| SITE ADDRESS | 490, S, LAWRENCE, RD, HUNTINGTON, UT, 84528, USA |
| MODULE WIDTH | 39.37 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 9.00 |
| SNOW LOAD OVERRIDE | 31.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 6533.58 |
| TOTAL WEIGHT | 1333.21 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/d4ef3ada-98f2-45f8-9a05-41dc0c4dad6f.pdf |
|
| ID | 2571.00 |
| 3D Solar link |
