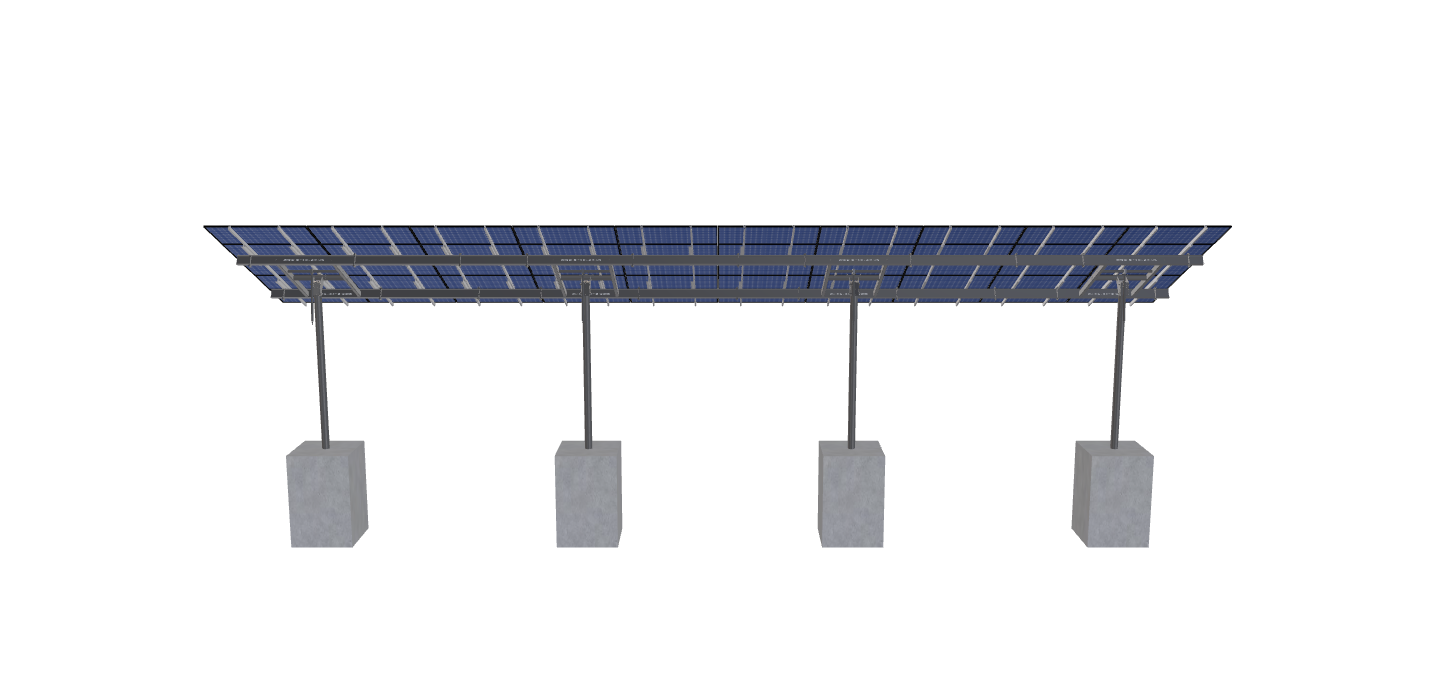

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.3 inches by 41.3 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
City of South Bend|Central Fire Station 5×10 – V1Jb
$23,116.60
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.3 inches by 41.3 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4451.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-XD-12-L-5HX10W-3G4B |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.82 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 26.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1223.52 |
| ARRAY WIDTH | 70.25 |
| ARRAY HEIGHT | 17.42 |
| RAIL LENGTH | 209.00 |
| MODULE LENGTH | 83.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 16.63 |
| PROJECTED PANEL HEIGHT | 7.63 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | CITY, OF, SOUTH, BEND, CENTRAL, FIRE, STATION, 5X10, -, V1JB |
| SITE ADDRESS | 1222, S, MICHIGAN, ST, SOUTH, BEND, IN, 46601, USA |
| MODULE INFO | CROSSROADS, 450W |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 23116.60 |
| TOTAL WEIGHT | 4451.40 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/181acf92-a07a-4f2c-829e-8e242e0c63db.pdf |
|
| ID | 11947.00 |
| 3D Solar link |
