This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.54 inches by 41.26 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

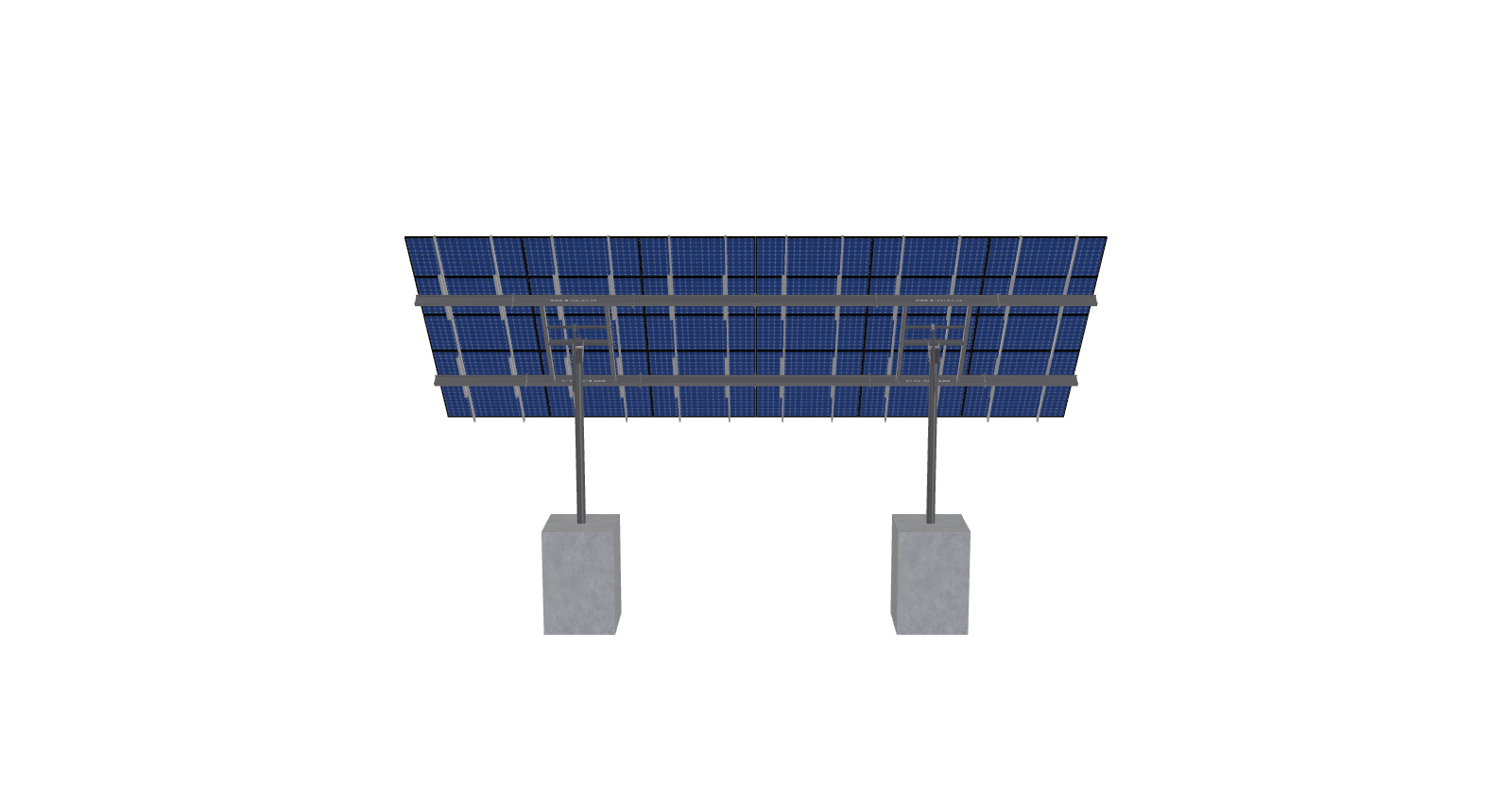

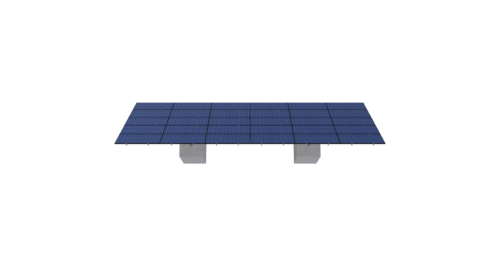

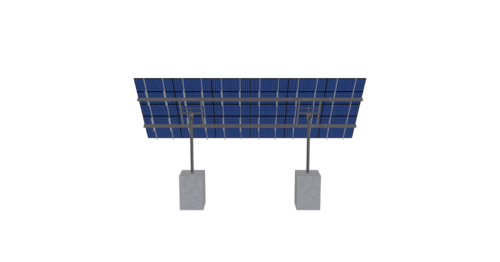

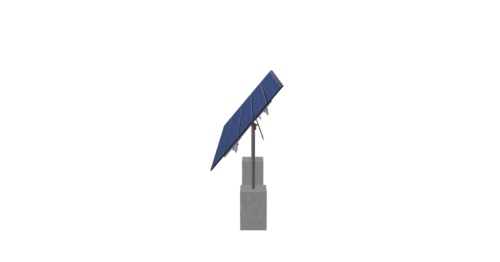

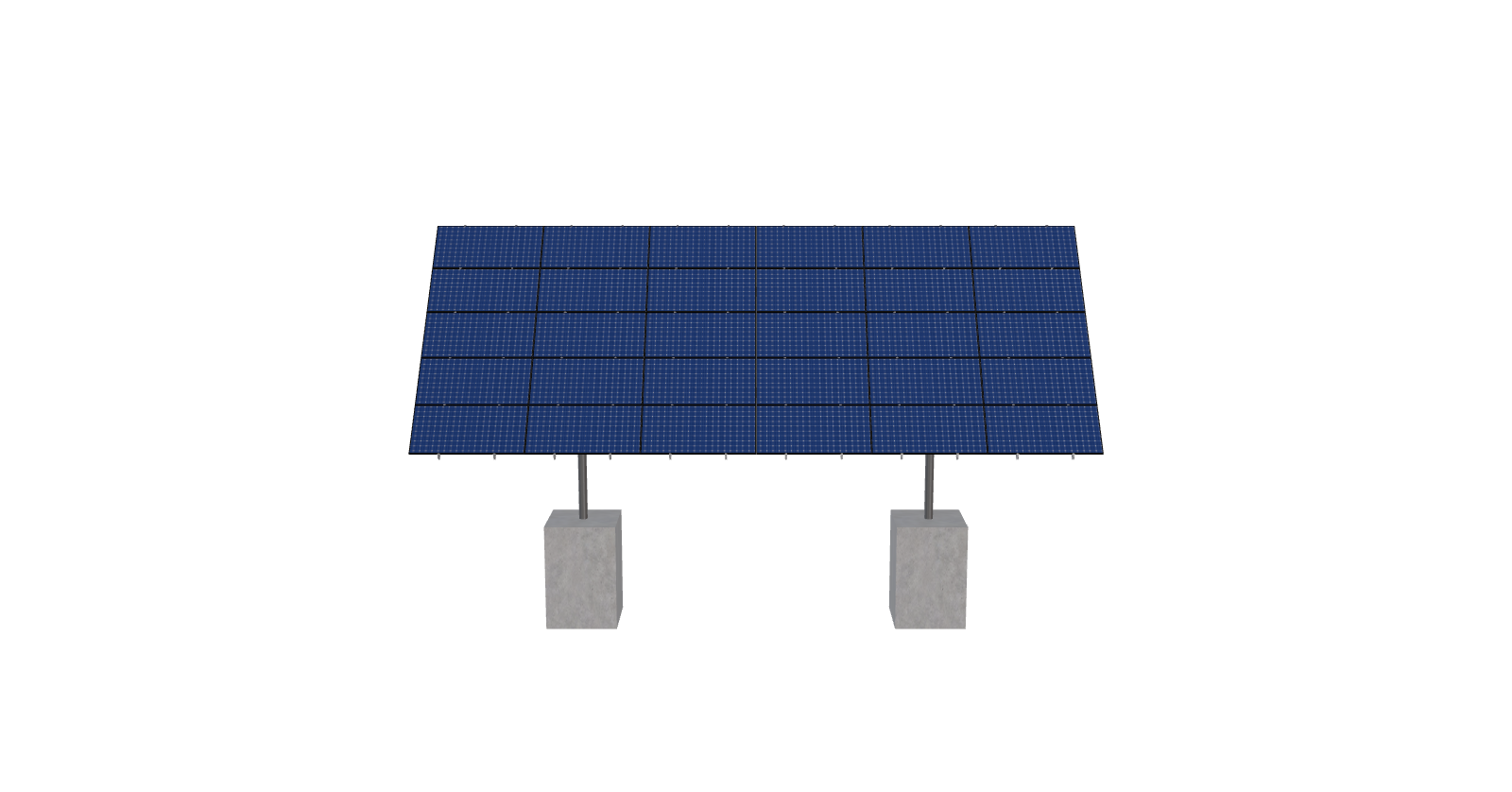

See 3D Model Here
Clarkston-UT-v1cu
$11,580.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.54 inches by 41.26 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2242.7799999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-HD-72-L-5HX6W-STRUTS-H51K |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.66 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 735.50 |
| ARRAY WIDTH | 42.27 |
| ARRAY HEIGHT | 17.40 |
| RAIL LENGTH | 208.80 |
| MODULE LENGTH | 83.54 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 18.25 |
| PROJECTED PANEL HEIGHT | 13.17 |
| PROJECT ID | CLARKSTON-UT-V1CU |
| SITE ADDRESS | WWFJ+QG3, CLARKSTON, UT, 84305, USA |
| MODULE WIDTH | 41.26 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 97.00 |
| SNOW LOAD OVERRIDE | 61.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 11028.77 |
| TOTAL WEIGHT | 2242.78 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/cbecbade-28df-4156-93a3-b10a275243d5.pdf |
|
| ID | 7450.00 |
| 3D Solar link |
