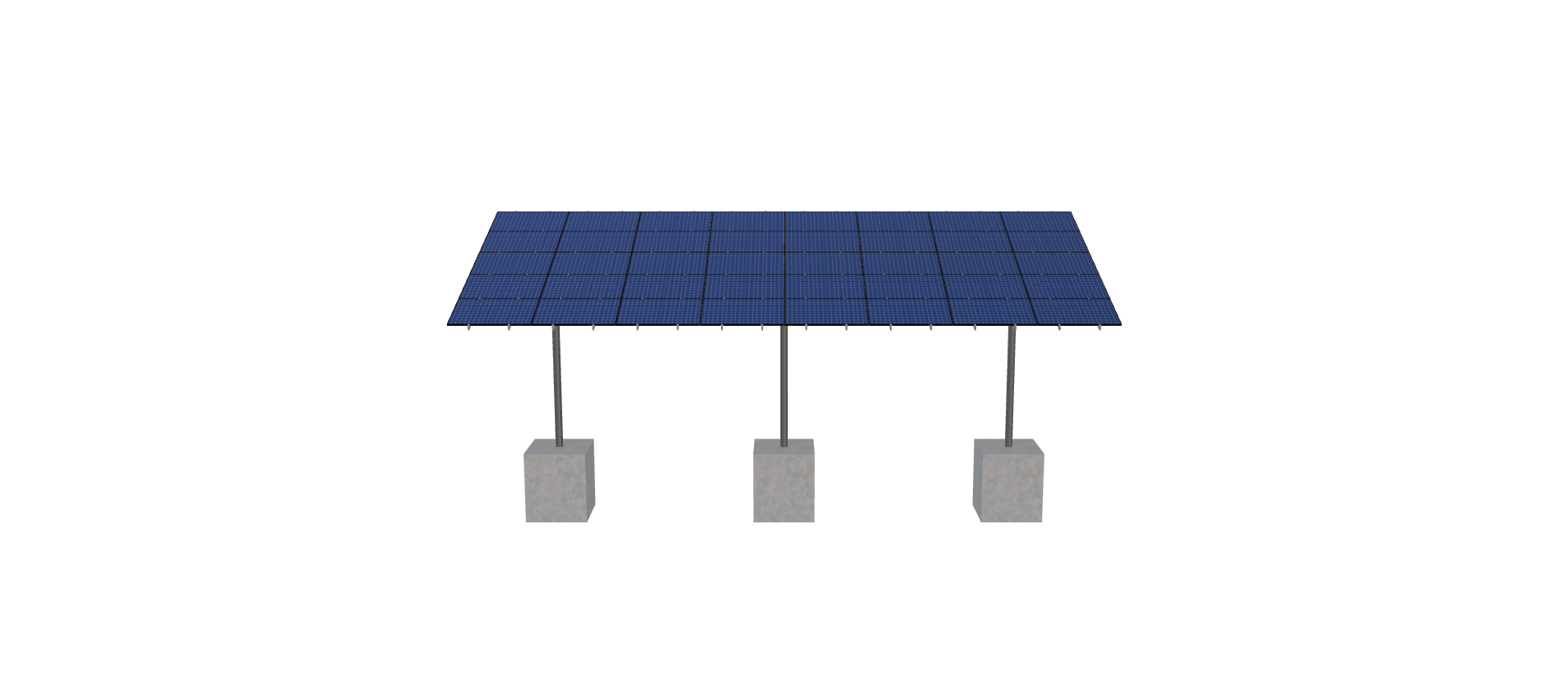

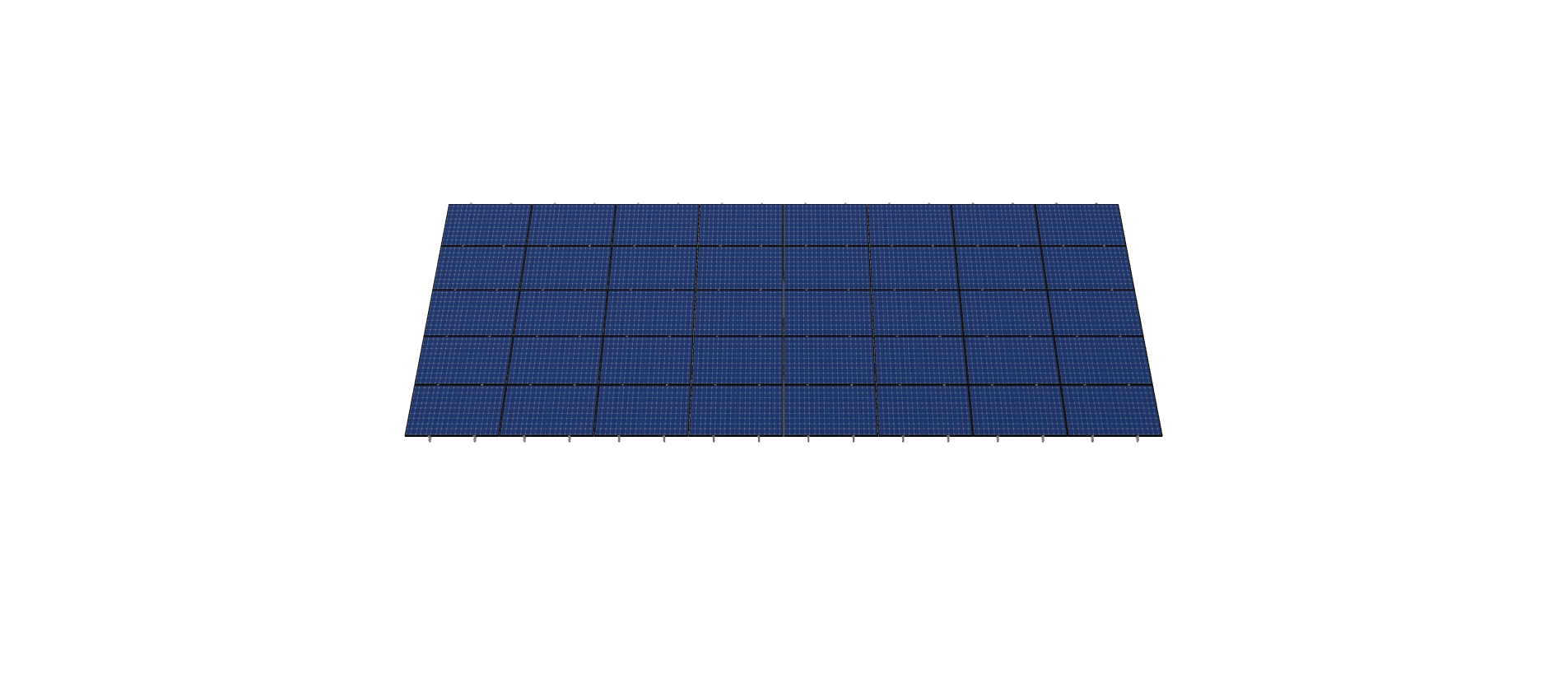

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Coleman Residence- 4566 Casa Redonda
$13,501.49
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2524.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-SD-24-L-5HX8W-E9C9 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 13.22 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 862.87 |
| ARRAY WIDTH | 45.87 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 16.43 |
| PROJECTED PANEL HEIGHT | 6.43 |
| DESIGNER NAME | DANIEL, BUZZURRO |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 916-218-2240 |
| PROJECT ID | COLEMAN, RESIDENCE-, 4566, CASA, REDONDA |
| SITE ADDRESS | 4566, CASA, REDONDA, DR, SHINGLE, SPRINGS, CA, 95682, USA |
| MODULE INFO | JA, SOLAR, JAM54S31-405/MR |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 89.00 |
| SNOW LOAD OVERRIDE | 20.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 13501.49 |
| TOTAL WEIGHT | 2524.52 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/79ff571e-859e-411e-ac9d-68b5f720e82a.pdf |
|
| ID | 12926.00 |
| 3D Solar link |
