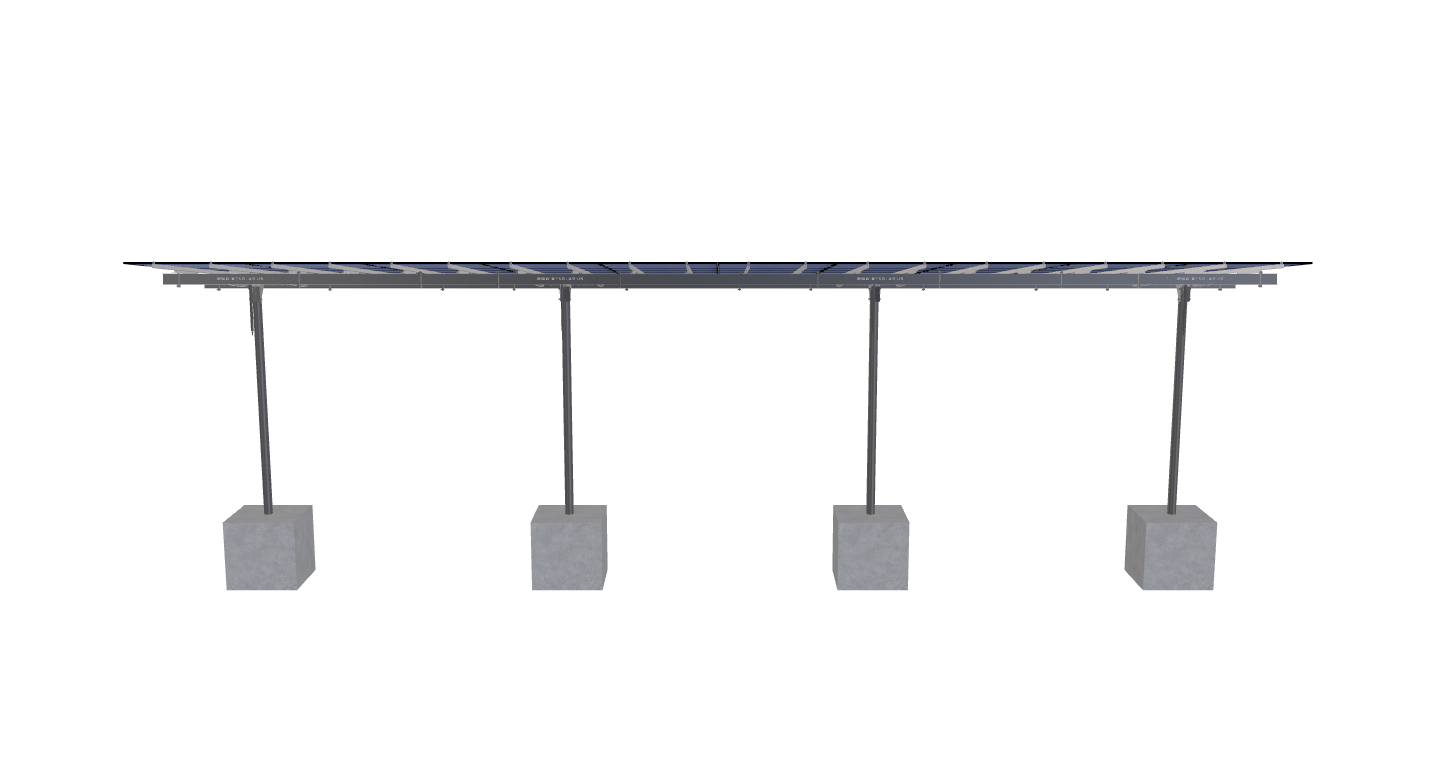

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.6 inches by 44.6 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

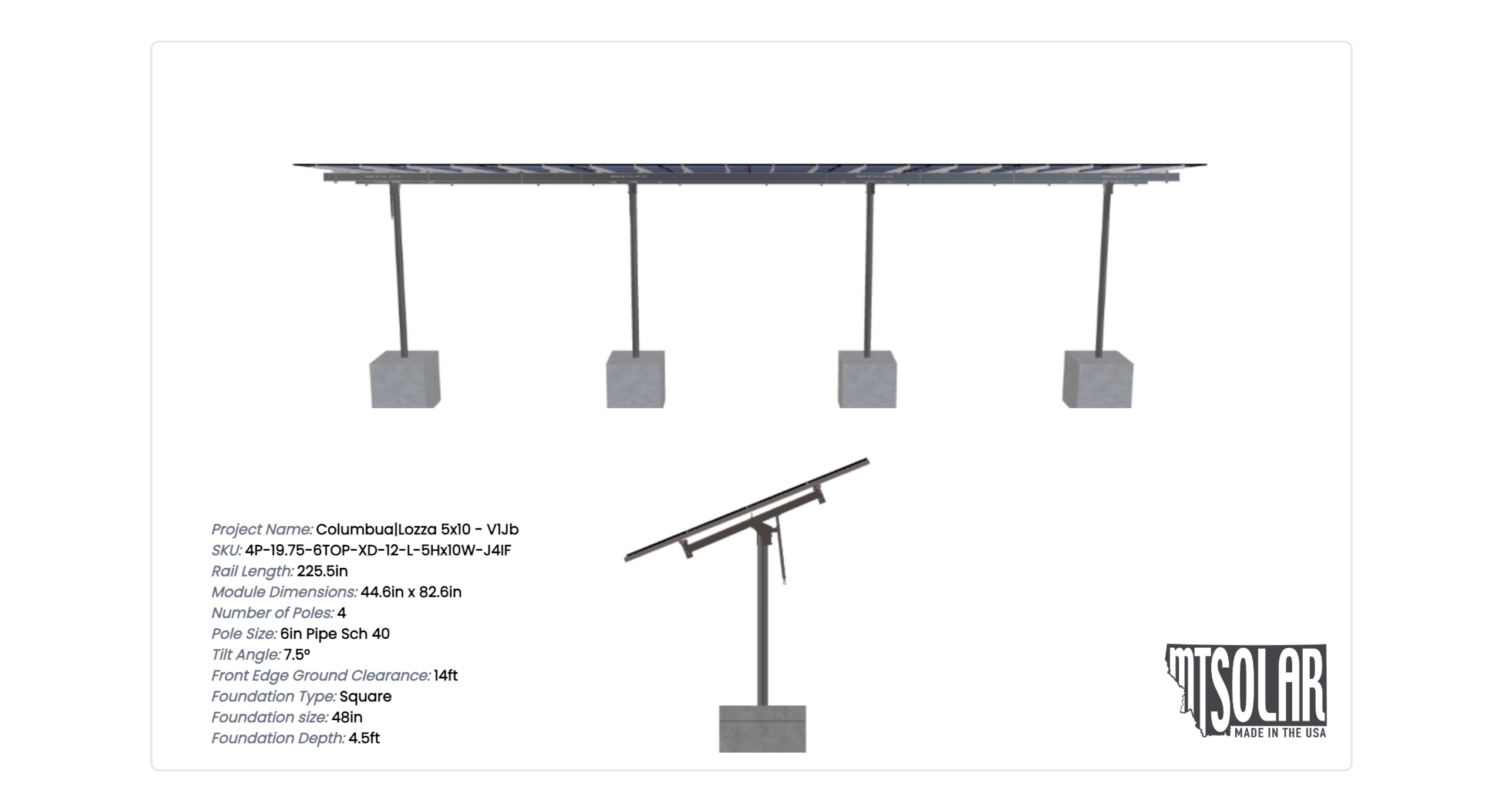

Columbua|Lozza 5×10 – V1Jb
$22,969.68
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.6 inches by 44.6 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4391.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-XD-12-L-5HX10W-J4IF |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.23 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 4.50 |
| TILT ANGLE | 7.50 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1309.15 |
| ARRAY WIDTH | 69.67 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 82.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 16.45 |
| PROJECTED PANEL HEIGHT | 2.45 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | COLUMBUA, LOZZA, 5X10, -, V1JB |
| SITE ADDRESS | 420, COLUMBUS, AVE, VALHALLA, NY, 10595, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 21875.89 |
| TOTAL WEIGHT | 4391.40 |
| TOTAL PALLETS | 4.00 |
