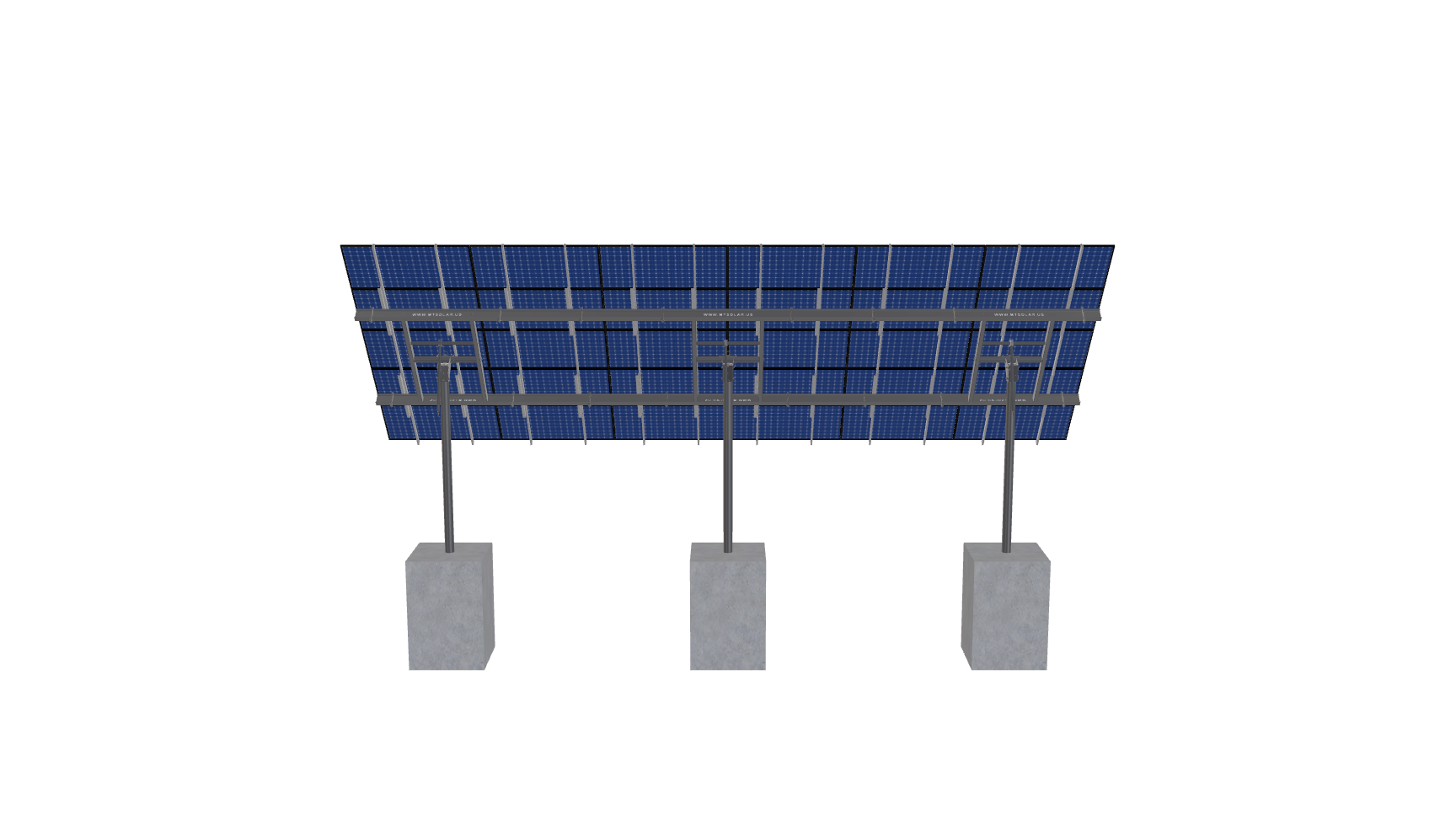

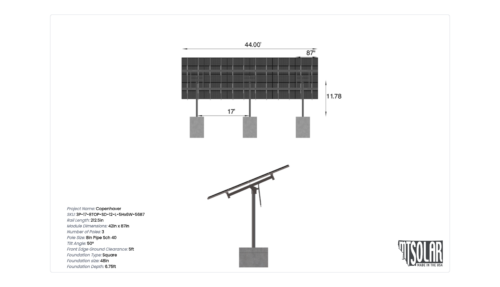

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 42 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Copenhaver
$12,684.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 42 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2330.64 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-SD-12-L-5HX6W-56B7 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.78 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 779.17 |
| ARRAY WIDTH | 44.00 |
| ARRAY HEIGHT | 17.71 |
| RAIL LENGTH | 212.50 |
| MODULE LENGTH | 87.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 18.49 |
| PROJECTED PANEL HEIGHT | 13.41 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | COPENHAVER |
| SITE ADDRESS | 13309, US-95, WHITE, BIRD, ID, 83554, USA |
| MODULE WIDTH | 42.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 12080.53 |
| TOTAL WEIGHT | 2330.64 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/d7f069b8-705a-441c-a3ac-b0054afb7fa2.pdf |
|
| ID | 5276.00 |
| 3D Solar link |
