Covered Picnic Area-v2

$9,742.08

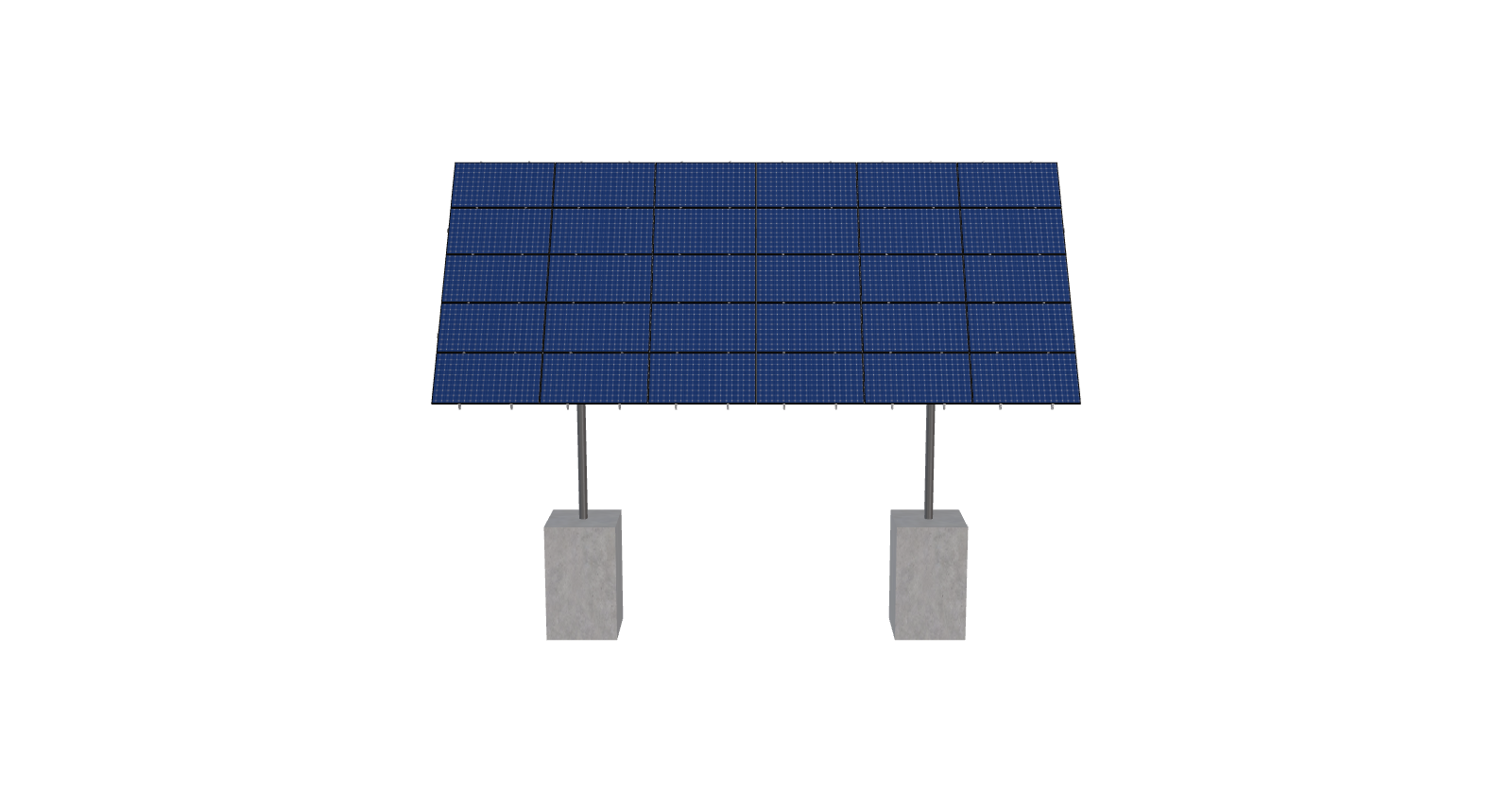

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78 inches by 42 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).

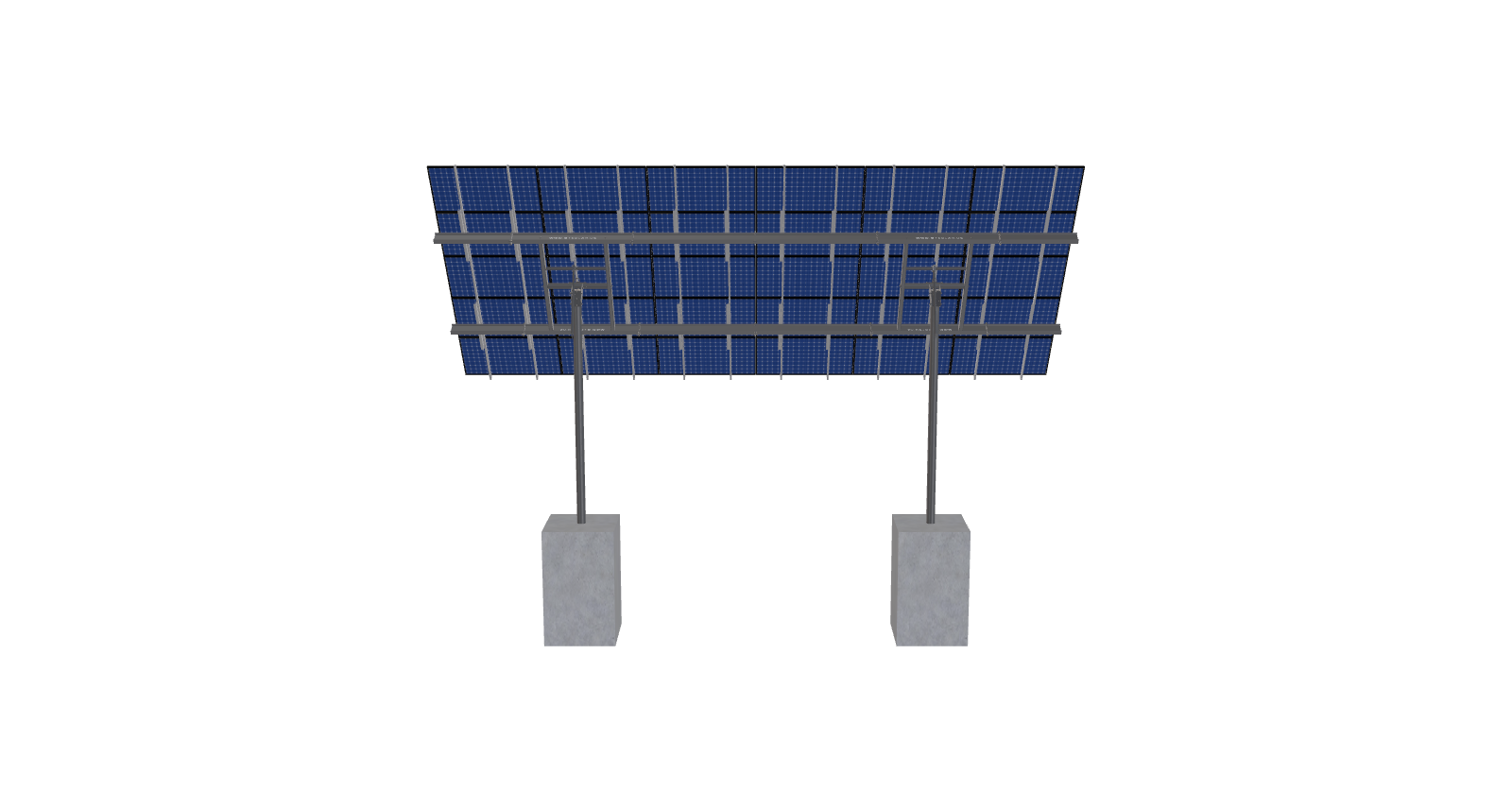

The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $9,742.08
Total options:
Order total:
SKU: 2P-22.5-8TOP-SD-57-L-5Hx6W-JCCL Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78 inches by 42 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1937.6399999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-8TOP-SD-57-L-5HX6W-JCCL

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

15.25

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.50

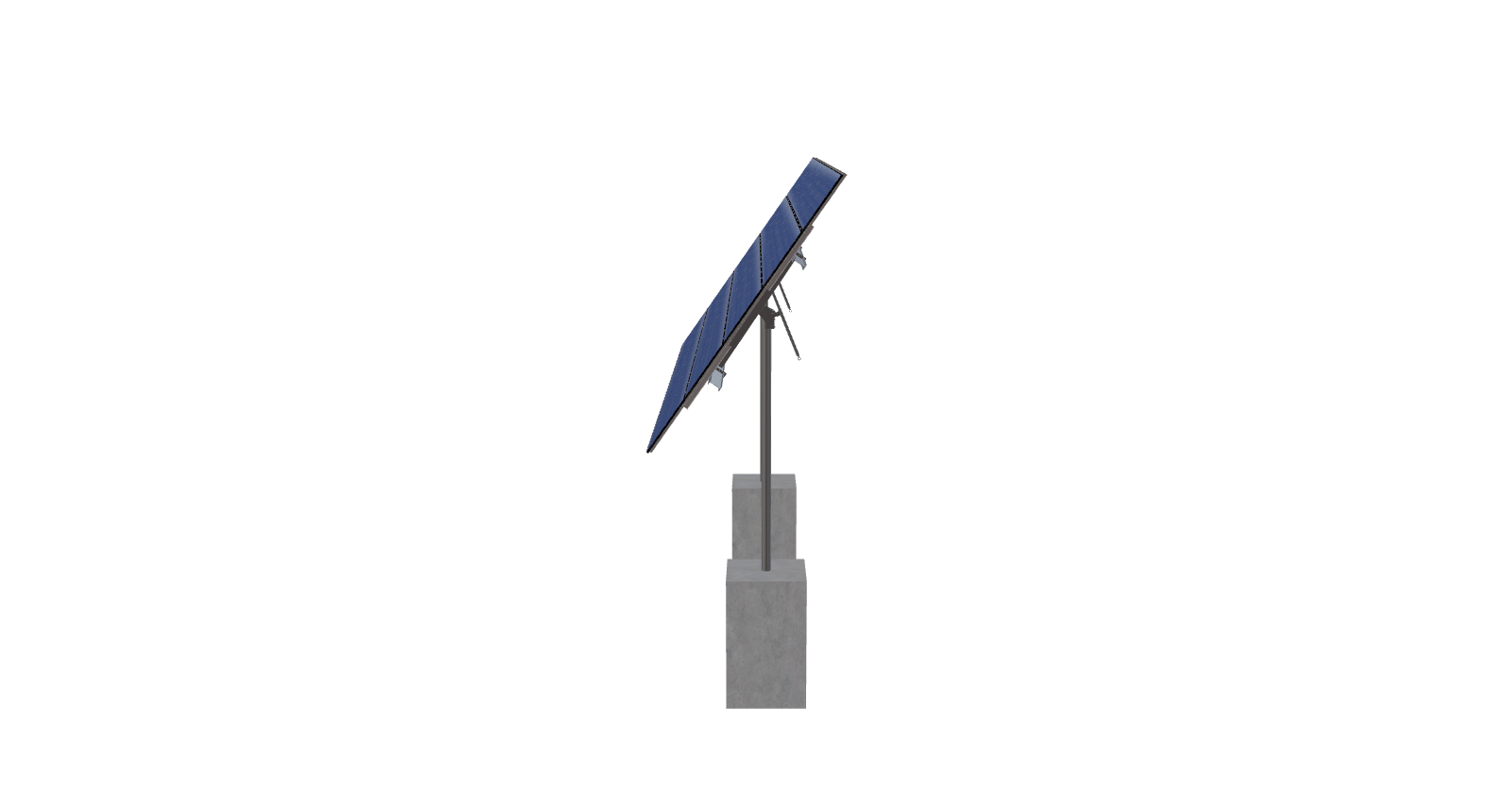

TILT ANGLE

55.00

CANTILEVER

474.00

GROUND CLEARANCE

8.00

NO POLES

2.00

MODULE AREA

699.48

ARRAY WIDTH

39.50

ARRAY HEIGHT

17.71

RAIL LENGTH

212.50

MODULE LENGTH

78.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

22.42

PROJECTED PANEL HEIGHT

14.34

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

COVERED, PICNIC, AREA-V2

SITE ADDRESS

69286, US-93, CHARLO, MT, 59824, USA

MODULE WIDTH

42.00

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

9742.08

TOTAL WEIGHT

1937.64

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/5d4f2a92-d0c3-4c61-91cf-3d6f1011bc24.pdf

ID

6303.00
