Daniel Darby

$13,415.14

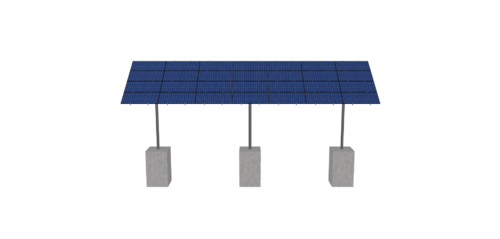

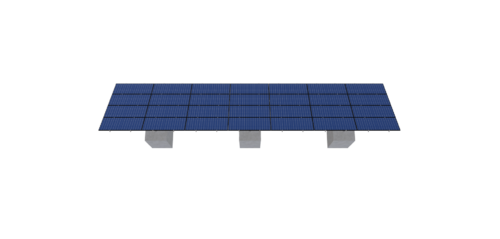

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

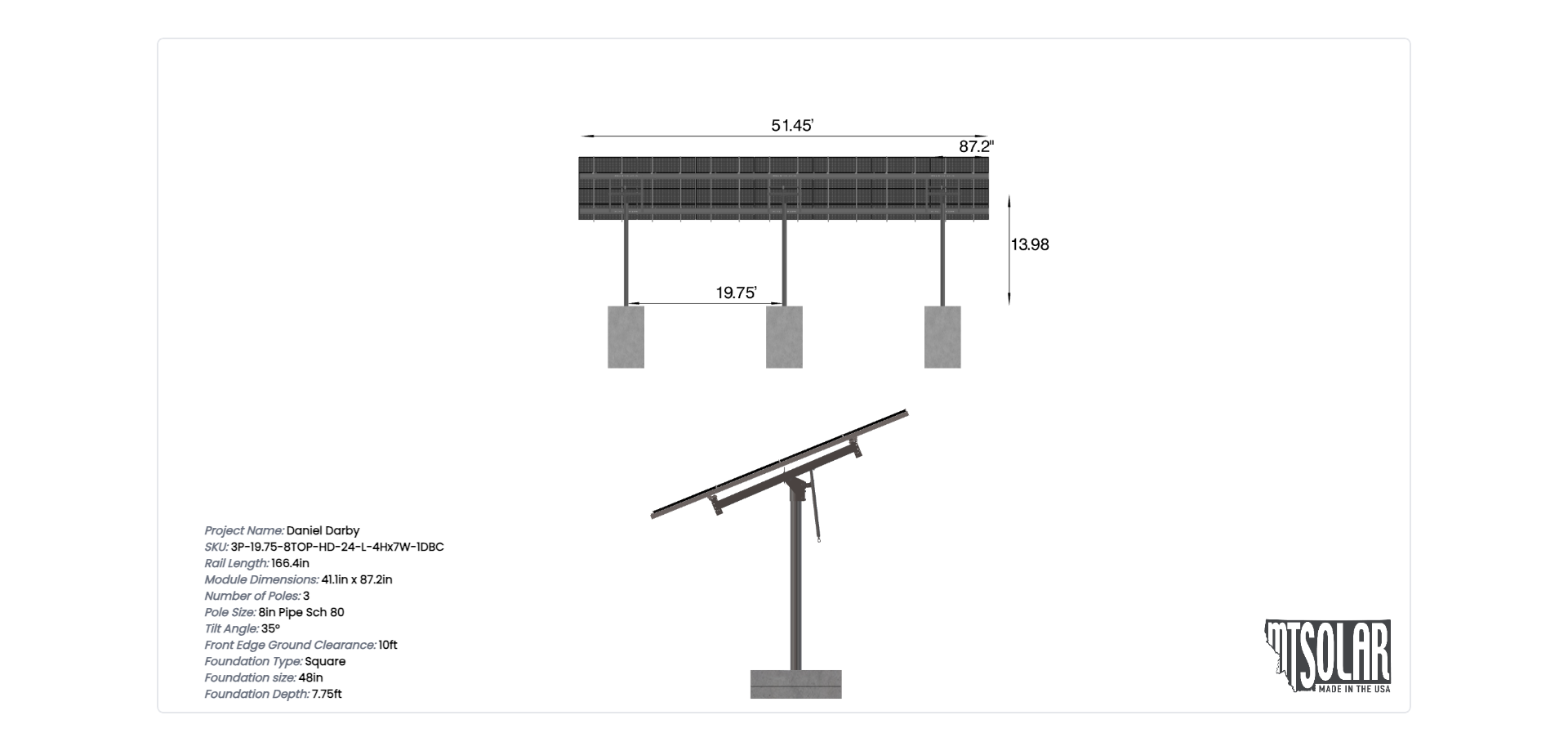

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-19.75-8TOP-HD-24-L-4Hx7W-1DBC Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2486.27 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-8TOP-HD-24-L-4HX7W-1DBC

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

13.98

WING SPAN

24.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

35.00

CANTILEVER

612.00

GROUND CLEARANCE

10.00

NO POLES

3.00

MODULE AREA

713.44

ARRAY WIDTH

51.45

ARRAY HEIGHT

13.87

RAIL LENGTH

166.40

MODULE LENGTH

87.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

51.00

GROUND TO TOP

17.91

PROJECTED PANEL HEIGHT

7.86

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

DANIEL, DARBY

SITE ADDRESS

5236, HUDLOW, RD, UNION, MILLS, NC, 28167, USA

MODULE WIDTH

41.10

NUMBER ROWS

4.00

NUMBER COLUMNS

7.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

13415.14

TOTAL WEIGHT

2486.27

TOTAL PALLETS

3.00
