This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 36 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

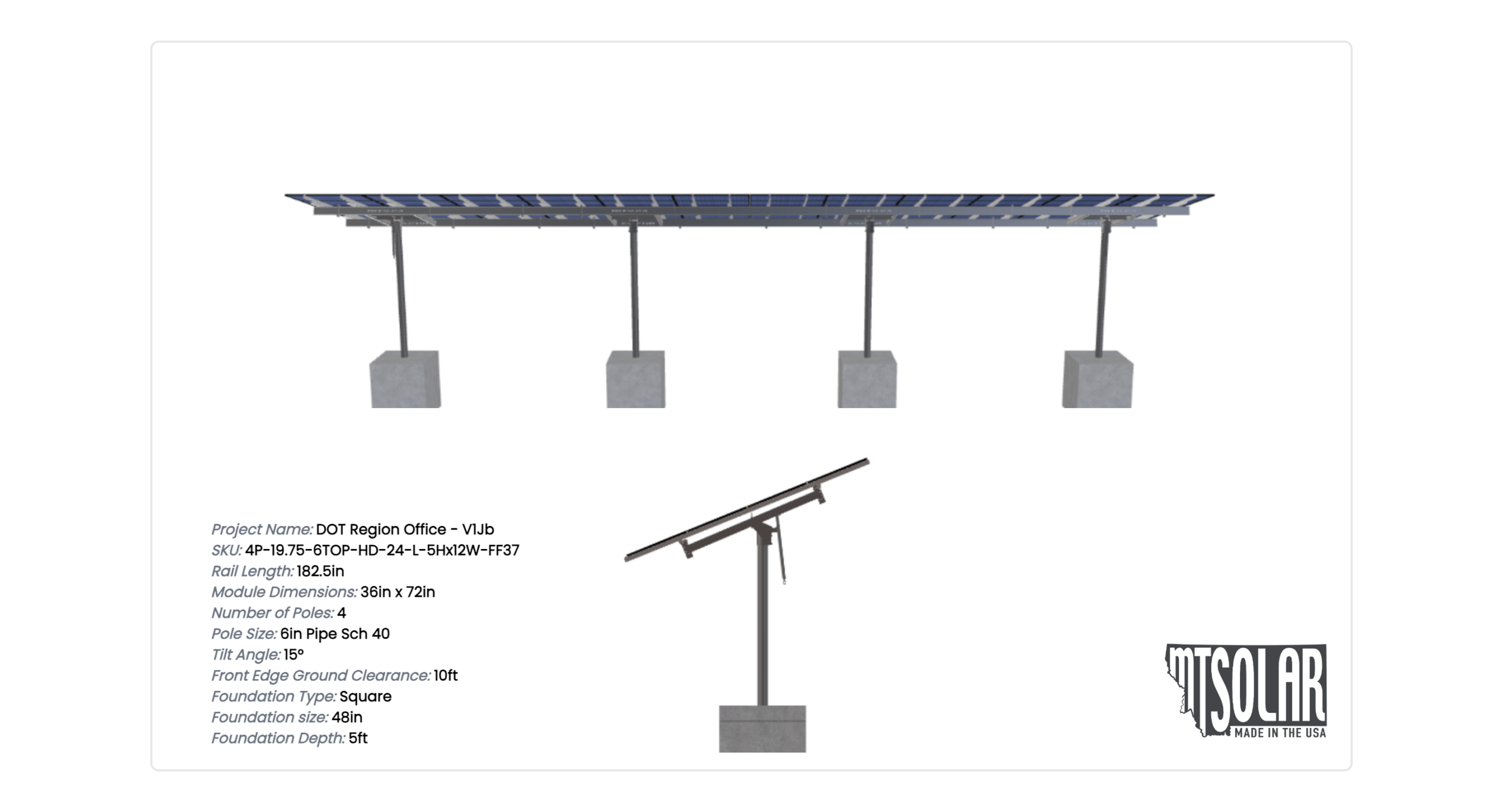

See 3D Model Here
DOT Region Office – V1Jb
$21,922.50
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 36 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4189.5 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-HD-24-L-5HX12W-FF37 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.97 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1110.21 |
| ARRAY WIDTH | 73.00 |
| ARRAY HEIGHT | 15.21 |
| RAIL LENGTH | 182.50 |
| MODULE LENGTH | 72.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 13.94 |
| PROJECTED PANEL HEIGHT | 3.94 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | DOT, REGION, OFFICE, -, V1JB |
| SITE ADDRESS | SMELTER, AVE, GREAT, FALLS, MT, USA |
| MODULE WIDTH | 36.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 20878.57 |
| TOTAL WEIGHT | 4189.50 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/e3ef3310-f4ad-4fa5-baf7-d7d4c1b4686a.pdf |
|
| ID | 9050.00 |
| 3D Solar link |
