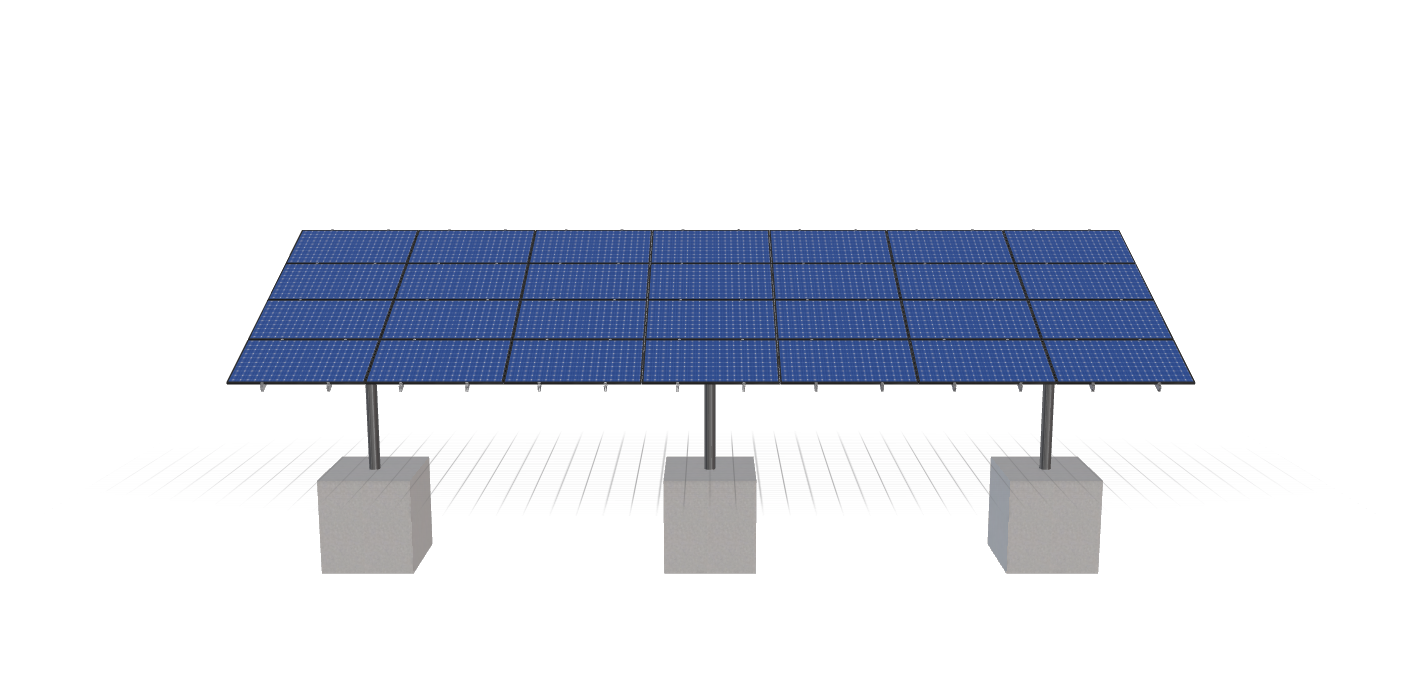

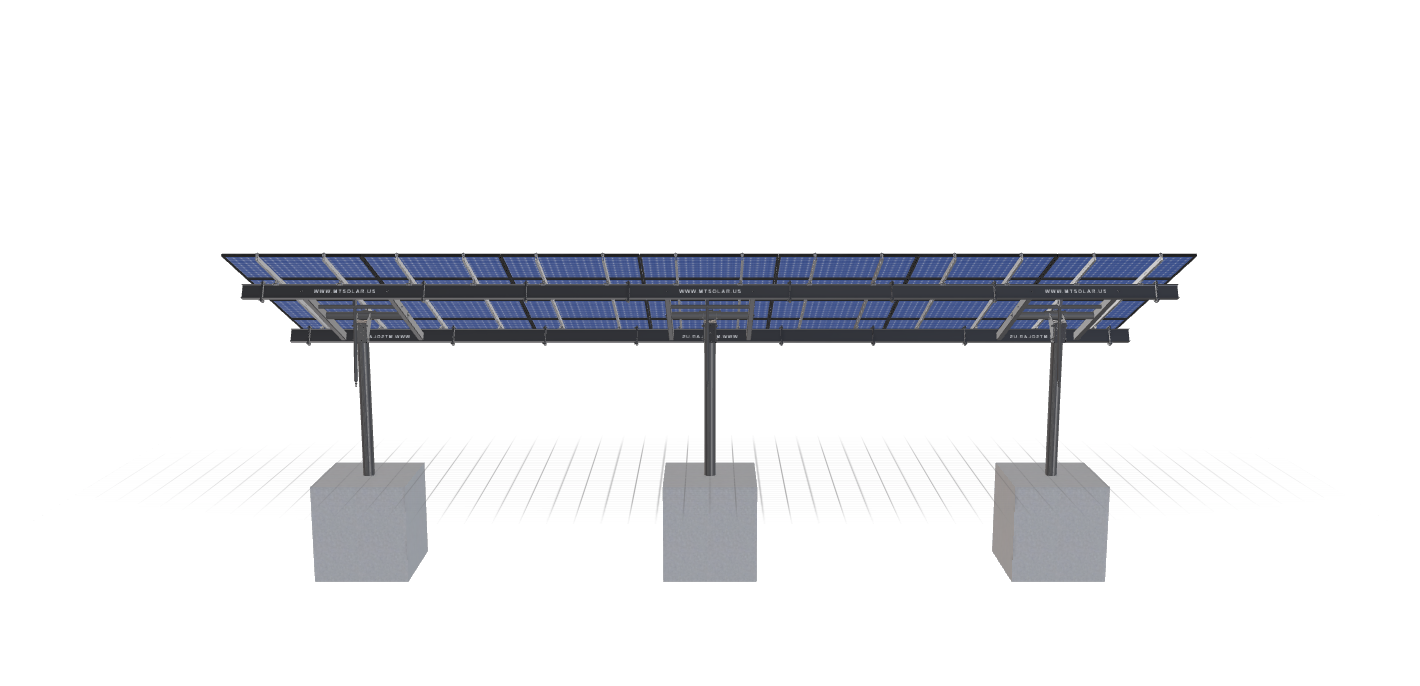

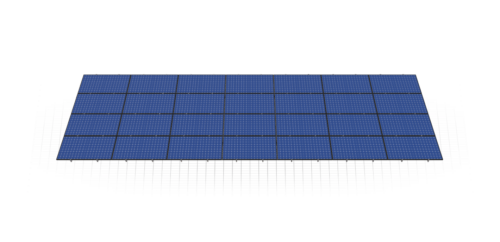

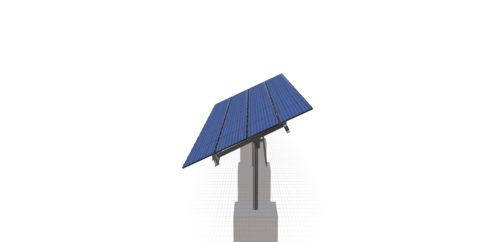

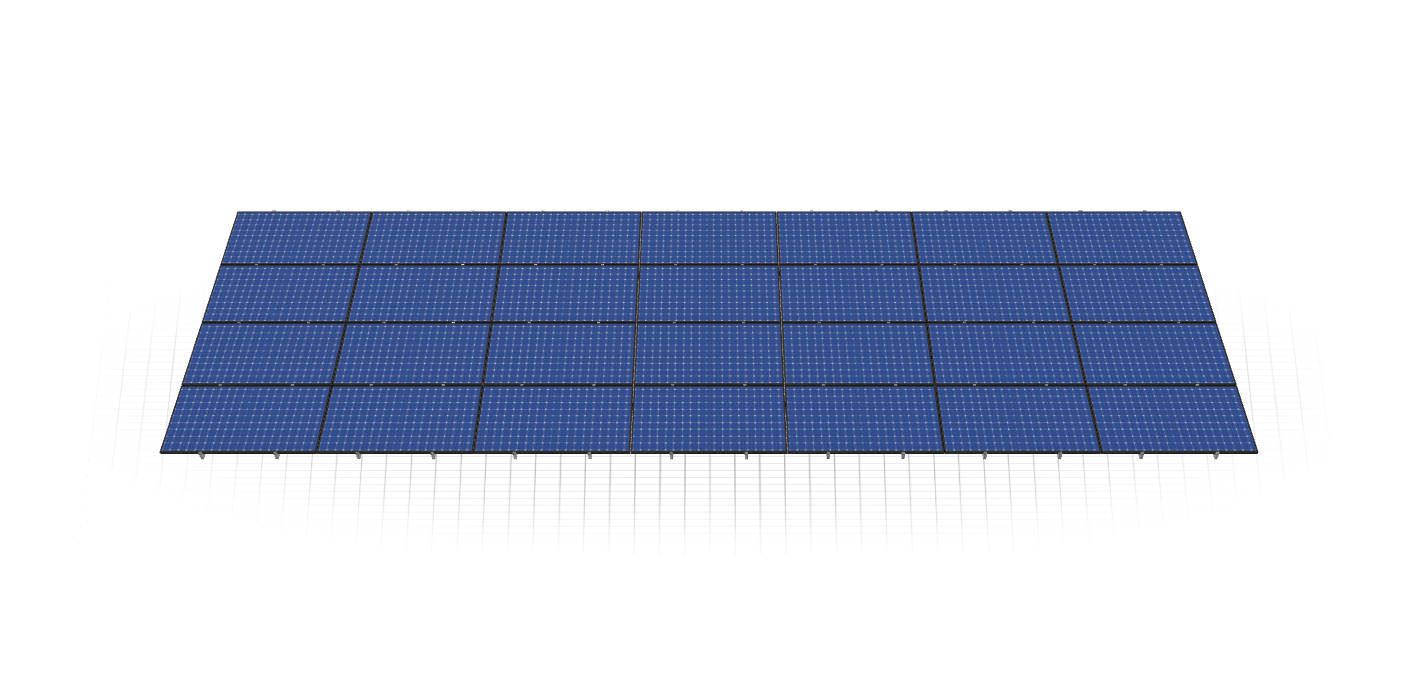

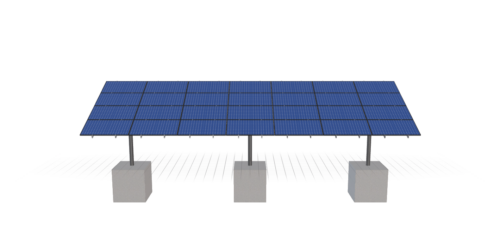

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
DRIFTWAY.A1
$14,091.92
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2591.39 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-XD-12-L-4HX7W-JB25 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 7.93 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 606.67 |
| ARRAY WIDTH | 43.75 |
| ARRAY HEIGHT | 13.87 |
| RAIL LENGTH | 166.40 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 10.83 |
| PROJECTED PANEL HEIGHT | 5.79 |
| PROJECT ID | DRIFTWAY.A1 |
| SITE ADDRESS | 5655, ROYAL, DRIFTWAY, FOREST, RANCH, CA, 95942, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 95.00 |
| SNOW LOAD OVERRIDE | 75.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 14091.92 |
| TOTAL WEIGHT | 2591.39 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/a9170ae0-3a46-4d83-868a-526384226271.pdf |
|
| ID | 1043.00 |
| 3D Solar link |
