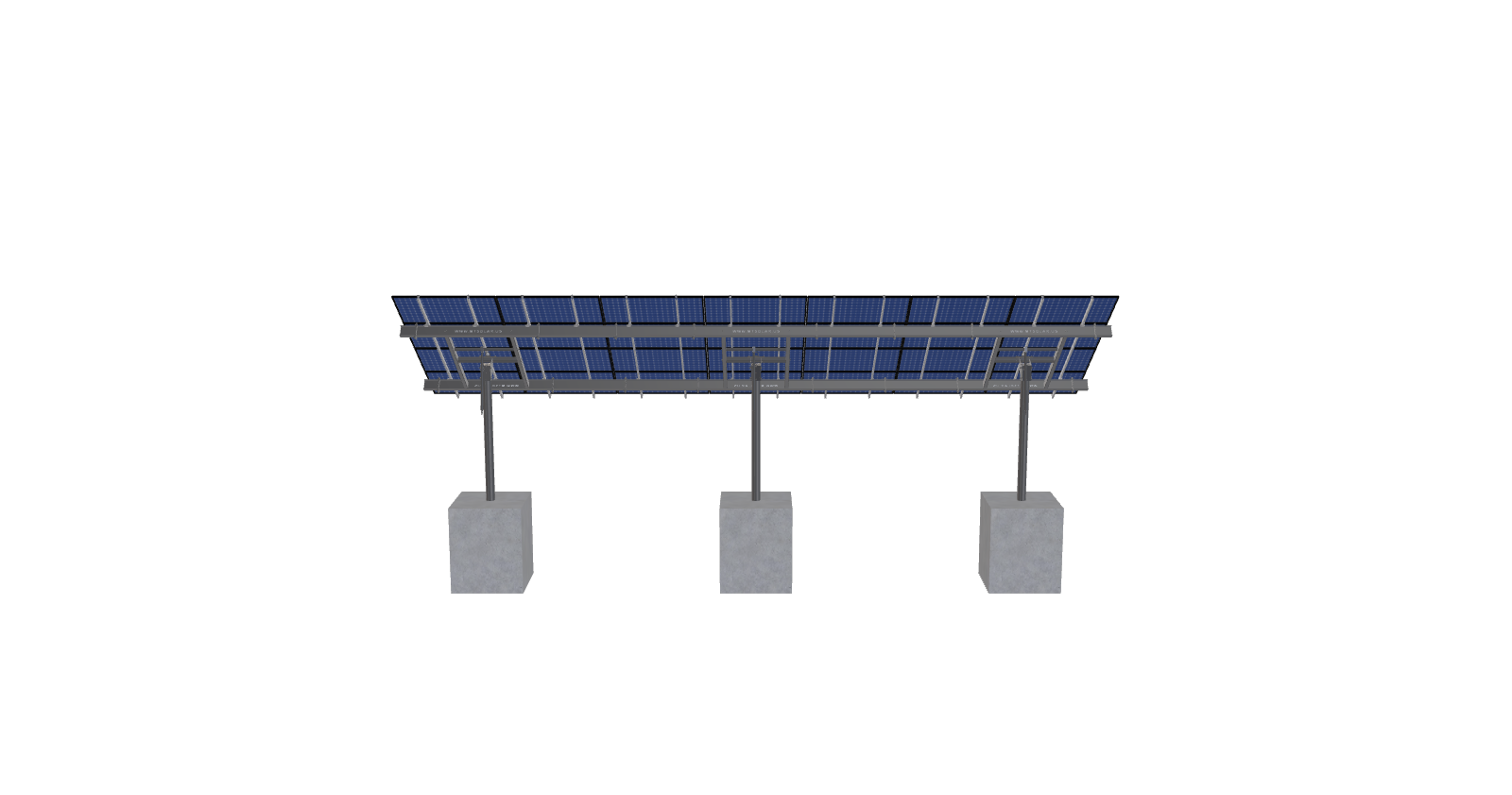

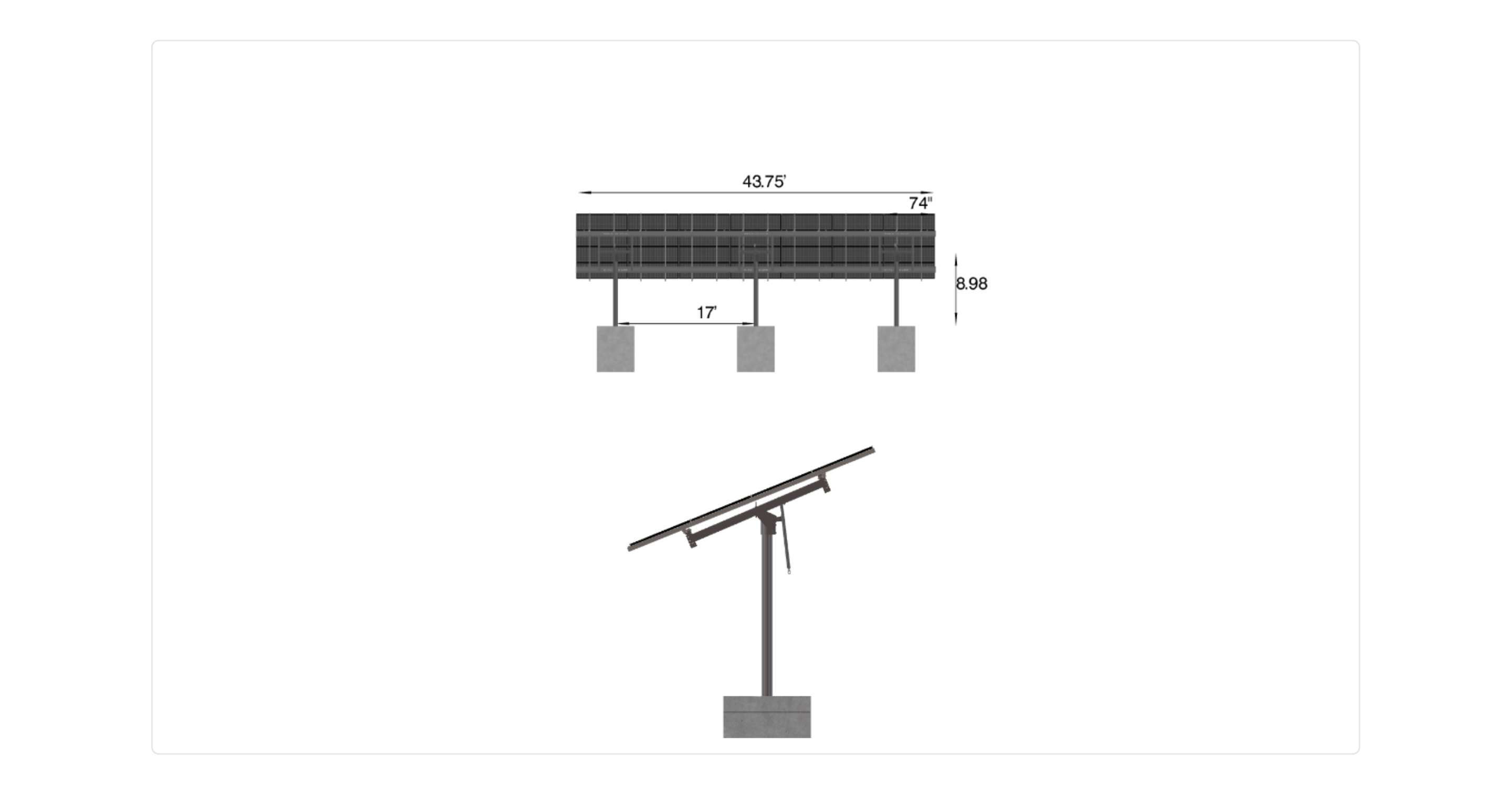

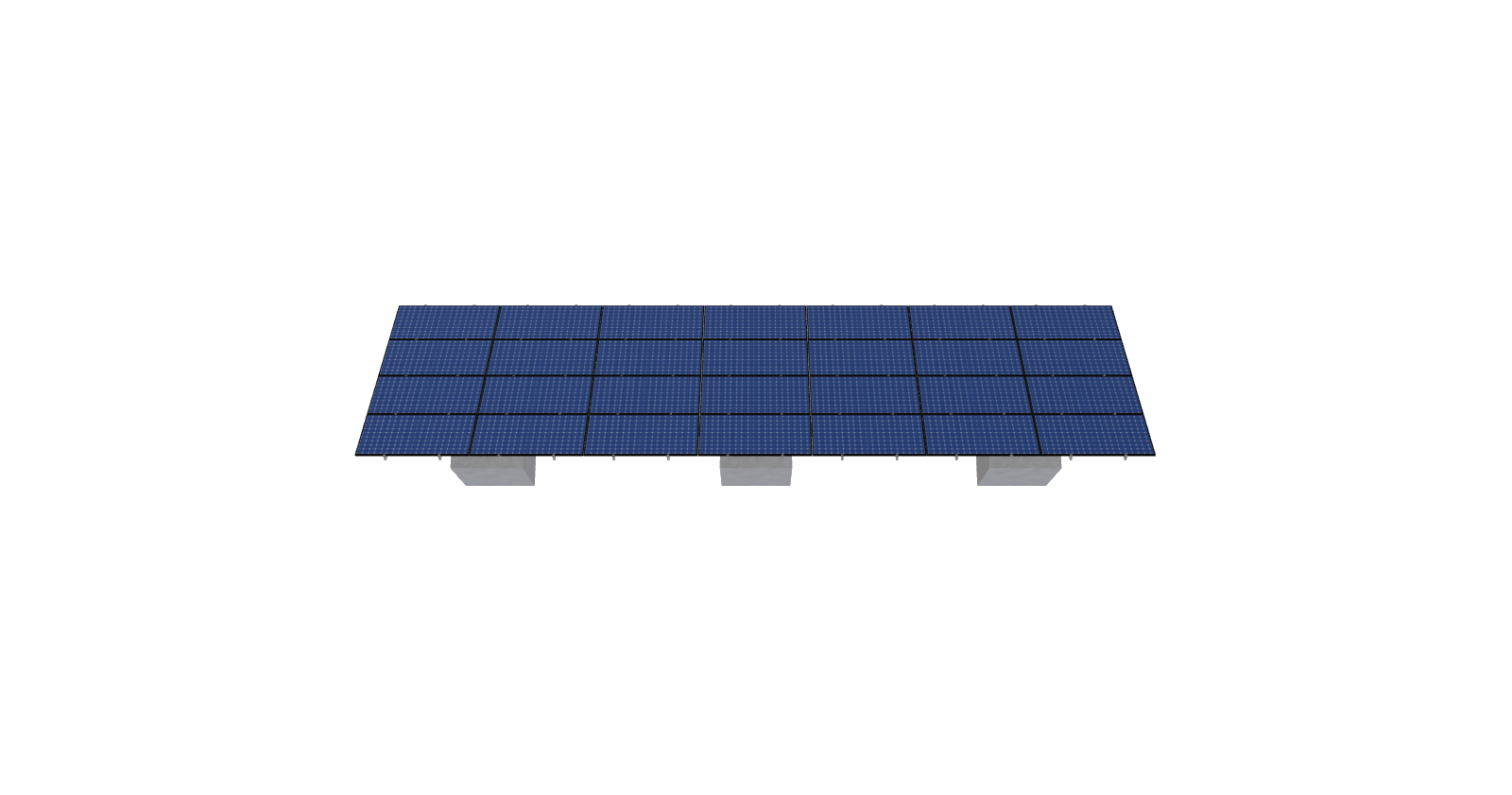

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Driftwood Rev E CU
$14,091.92
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 2591.39 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-17-6TOP-XD-12-L-4HX7W-J072 |
DUTY SIZE | XD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 8.98 |
WING SPAN | 12.00 |
MAX FOUNDATION DEPTH | 5.50 |
TILT ANGLE | 35.00 |
CANTILEVER | 522.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 3.00 |
MODULE AREA | 606.67 |
ARRAY WIDTH | 43.75 |
ARRAY HEIGHT | 13.87 |
RAIL LENGTH | 166.40 |
MODULE LENGTH | 74.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 43.50 |
GROUND TO TOP | 12.91 |
PROJECTED PANEL HEIGHT | 7.86 |
WIND SPEED OVERRIDE | 105.00 |
SNOW LOAD OVERRIDE | 115.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | DRIFTWOOD, REV, E, CU |
SITE ADDRESS | 5655, ROYAL, DRIFTWAY, FOREST, RANCH, CA, 95942, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 7.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 14091.92 |
TOTAL WEIGHT | 2591.39 |
TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/08338e56-bf87-4851-bd24-68a7f1764309.pdf |
|
ID | 2991.00 |
