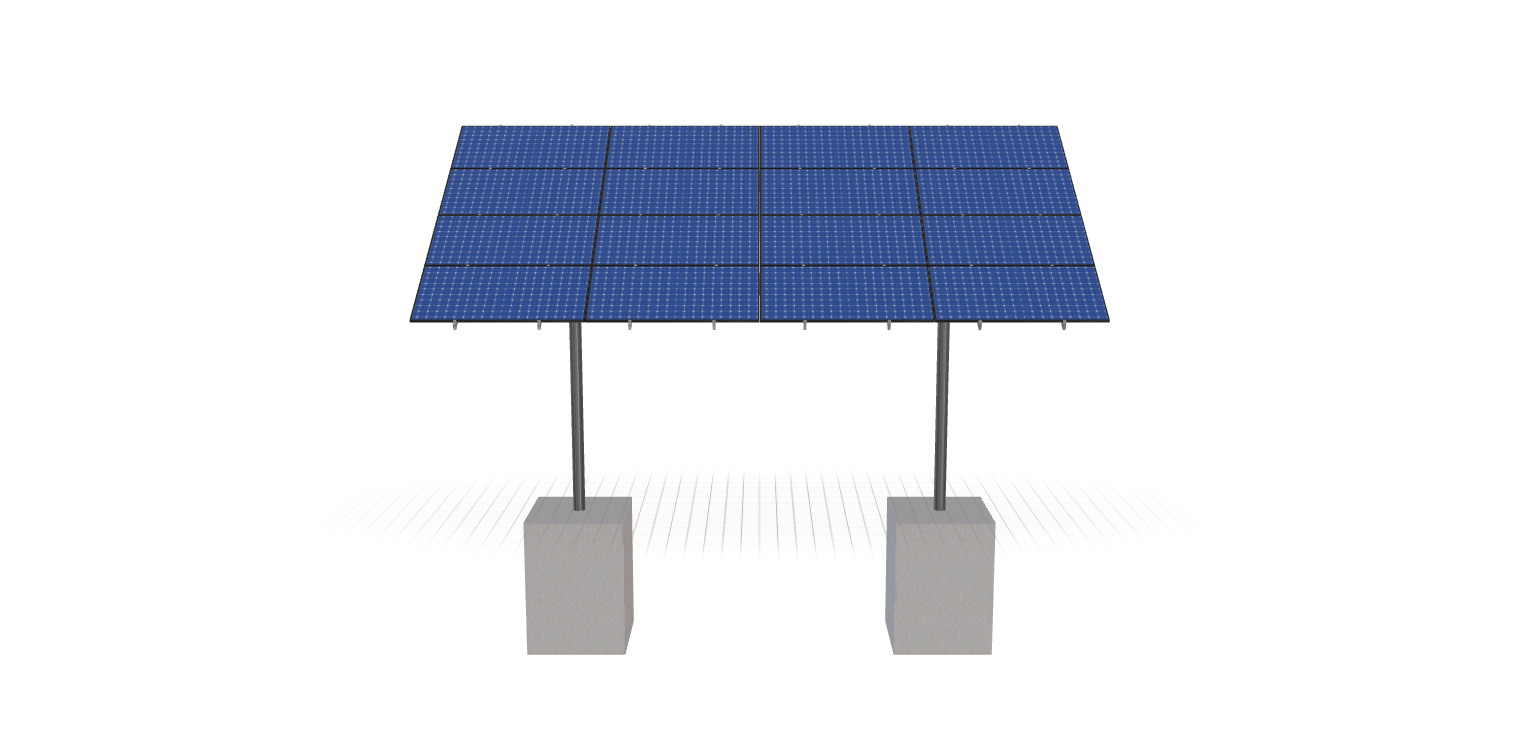

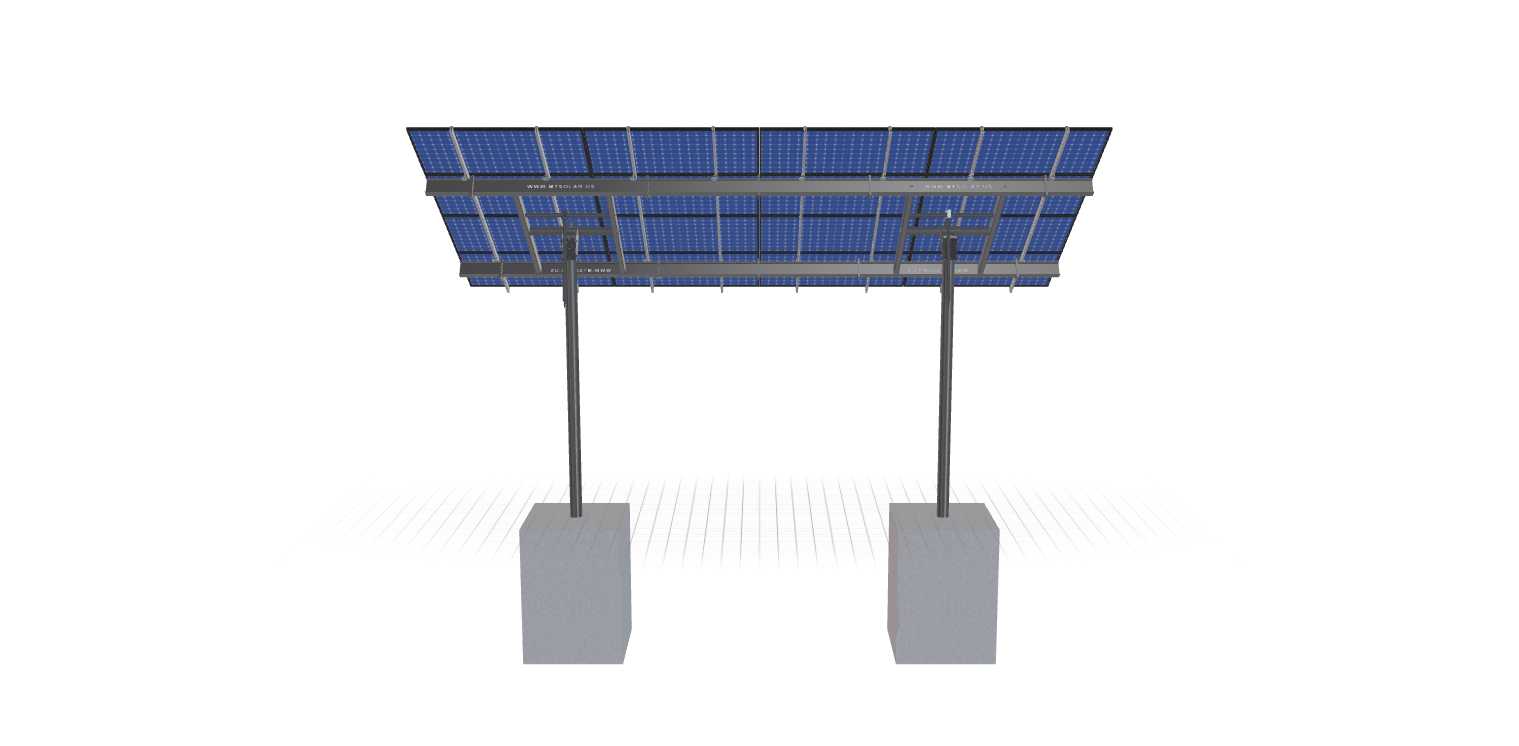

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.1 inches by 43.39 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Dry Creek Preserve RevA
$7,250.04
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.1 inches by 43.39 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1279.88 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-SD-24-L-4HX4W-J007 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.98 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 33.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 2.00 |
| MODULE AREA | 424.76 |
| ARRAY WIDTH | 29.03 |
| ARRAY HEIGHT | 14.63 |
| RAIL LENGTH | 175.56 |
| MODULE LENGTH | 86.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 16.92 |
| PROJECTED PANEL HEIGHT | 7.88 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | DRY, CREEK, PRESERVE, REVA |
| SITE ADDRESS | 8195, N, SUNNYSIDE, AVE, CLOVIS, CA, 93619, USA |
| MODULE WIDTH | 43.39 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 7250.04 |
| TOTAL WEIGHT | 1279.88 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/f7d1dee0-3958-4af9-87af-394d850a45e0.pdf |
|
| ID | 1388.00 |
| 3D Solar link |
