This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.67 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

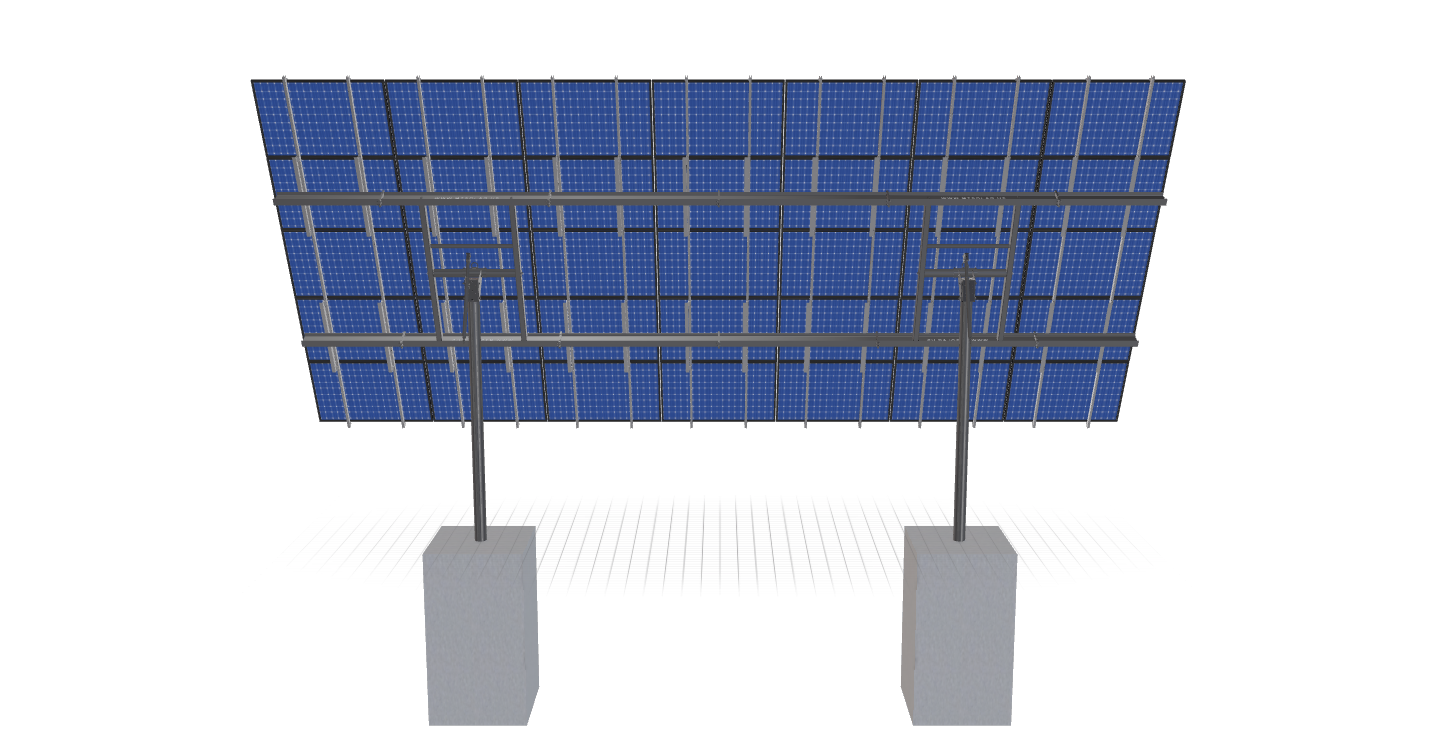

See 3D Model Here
ELA Rev2
$12,057.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.67 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2324.26 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-HD-57-L-5HX7W-E5E8 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.53 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 757.54 |
| ARRAY WIDTH | 40.25 |
| ARRAY HEIGHT | 18.82 |
| RAIL LENGTH | 225.85 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 20.96 |
| PROJECTED PANEL HEIGHT | 16.87 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | ELA, REV2 |
| SITE ADDRESS | 300398, 3RD, ST, INTERNATIONAL, FALLS, MN, 56649, USA |
| MODULE WIDTH | 44.67 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 11483.71 |
| TOTAL WEIGHT | 2324.26 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/33fa3c86-2f08-4a1b-9e5b-7dd6cf10fa24.pdf |
|
| ID | 1145.00 |
| 3D Solar link |
