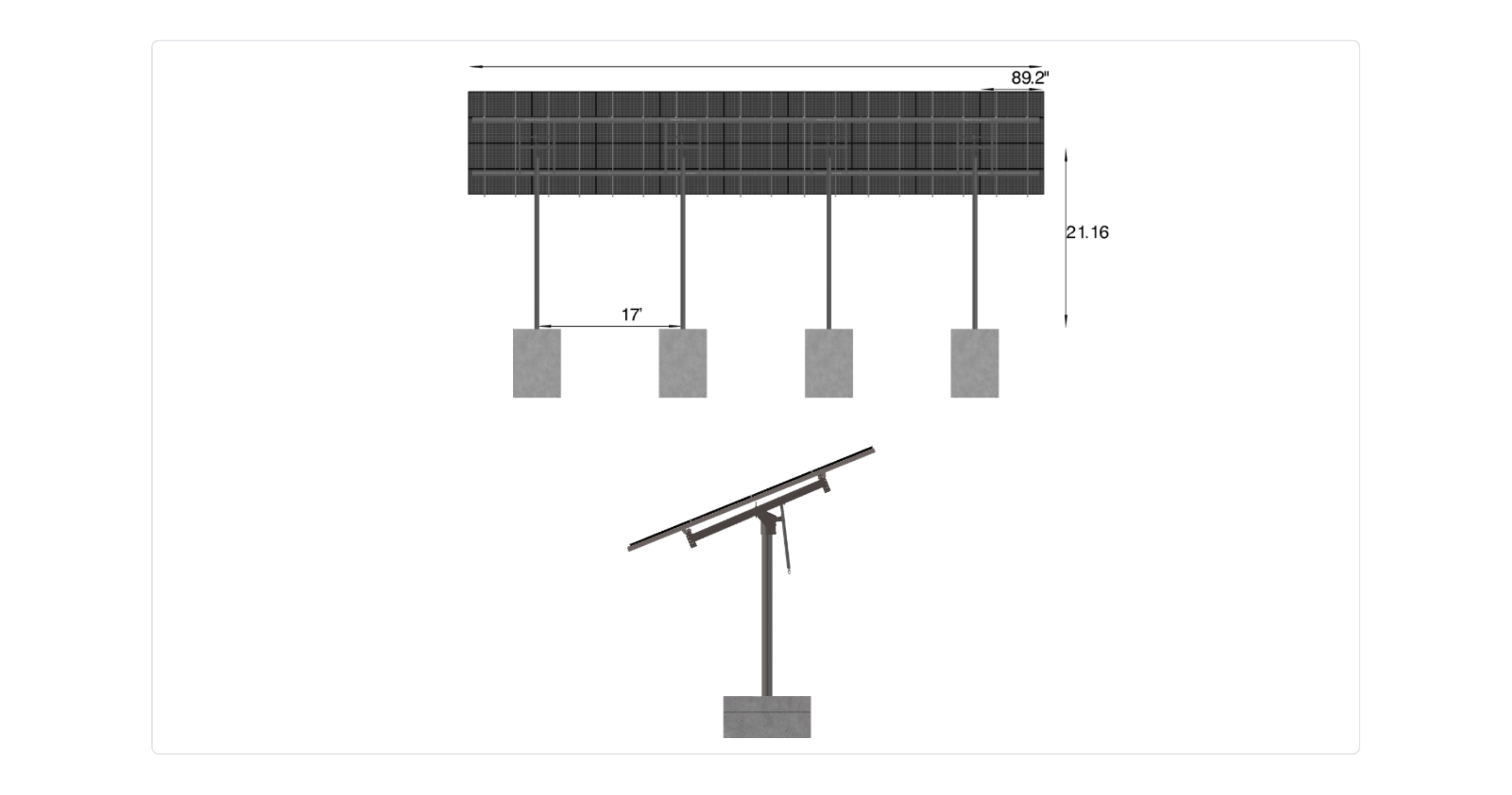

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

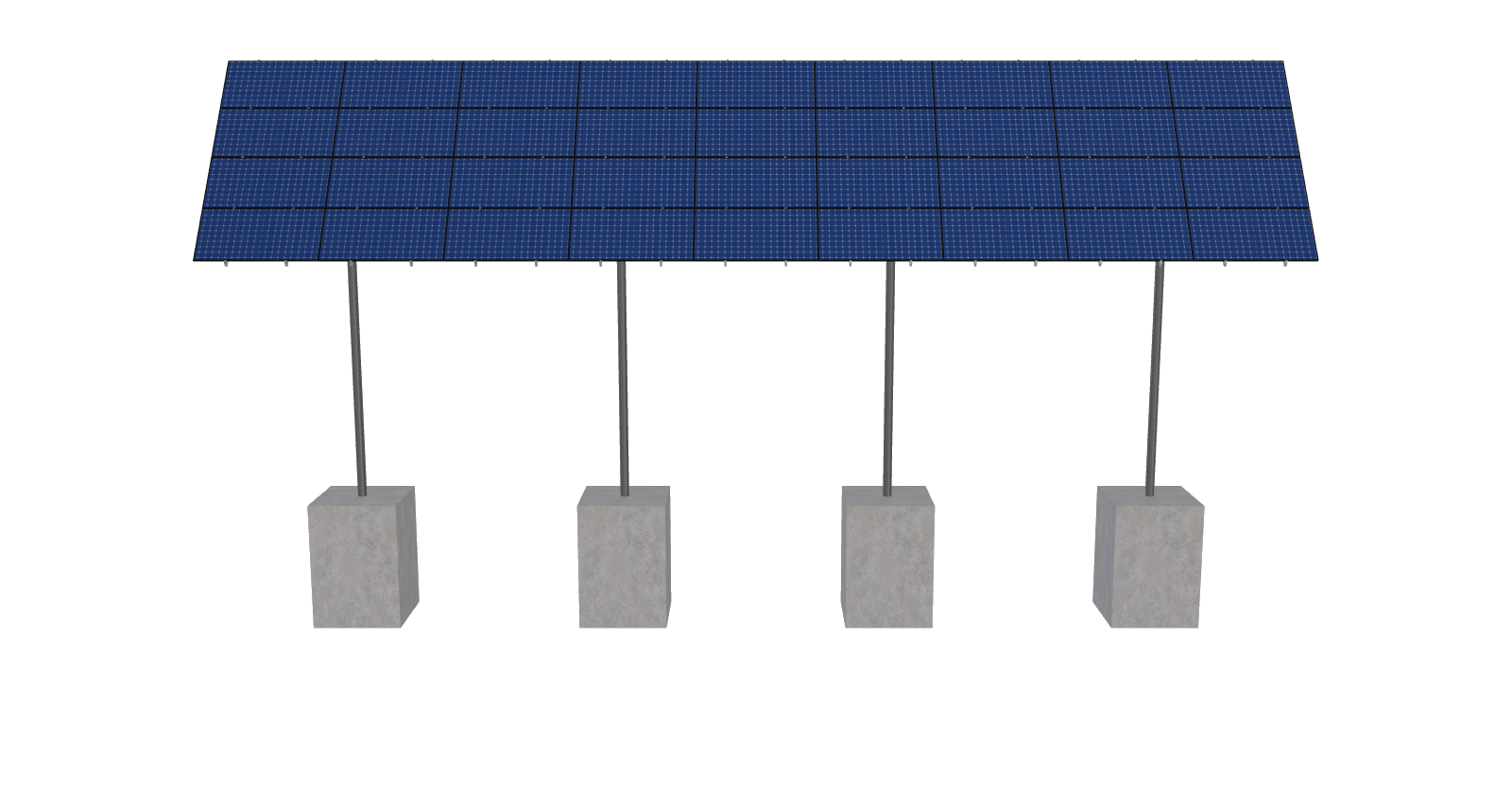

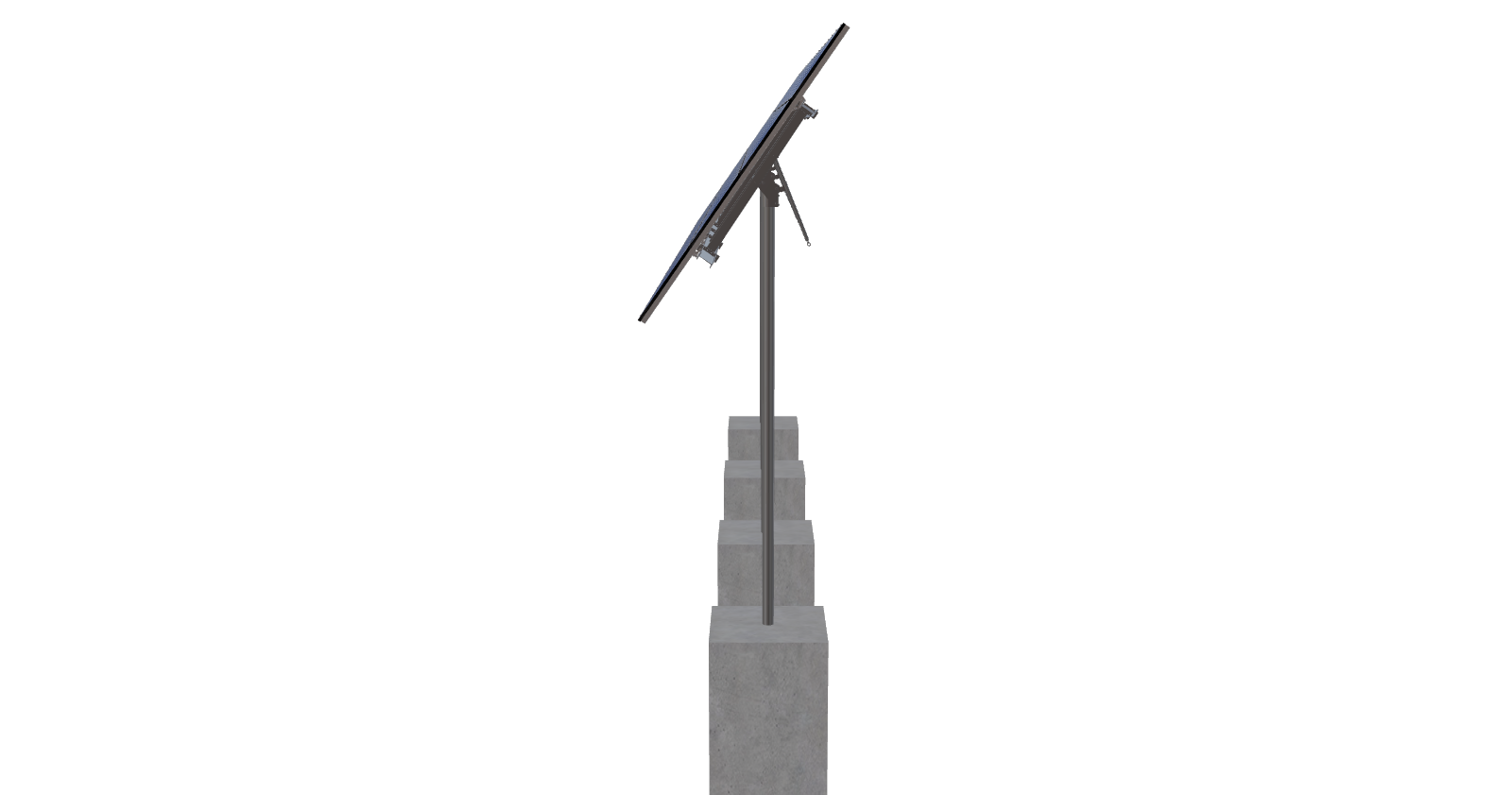

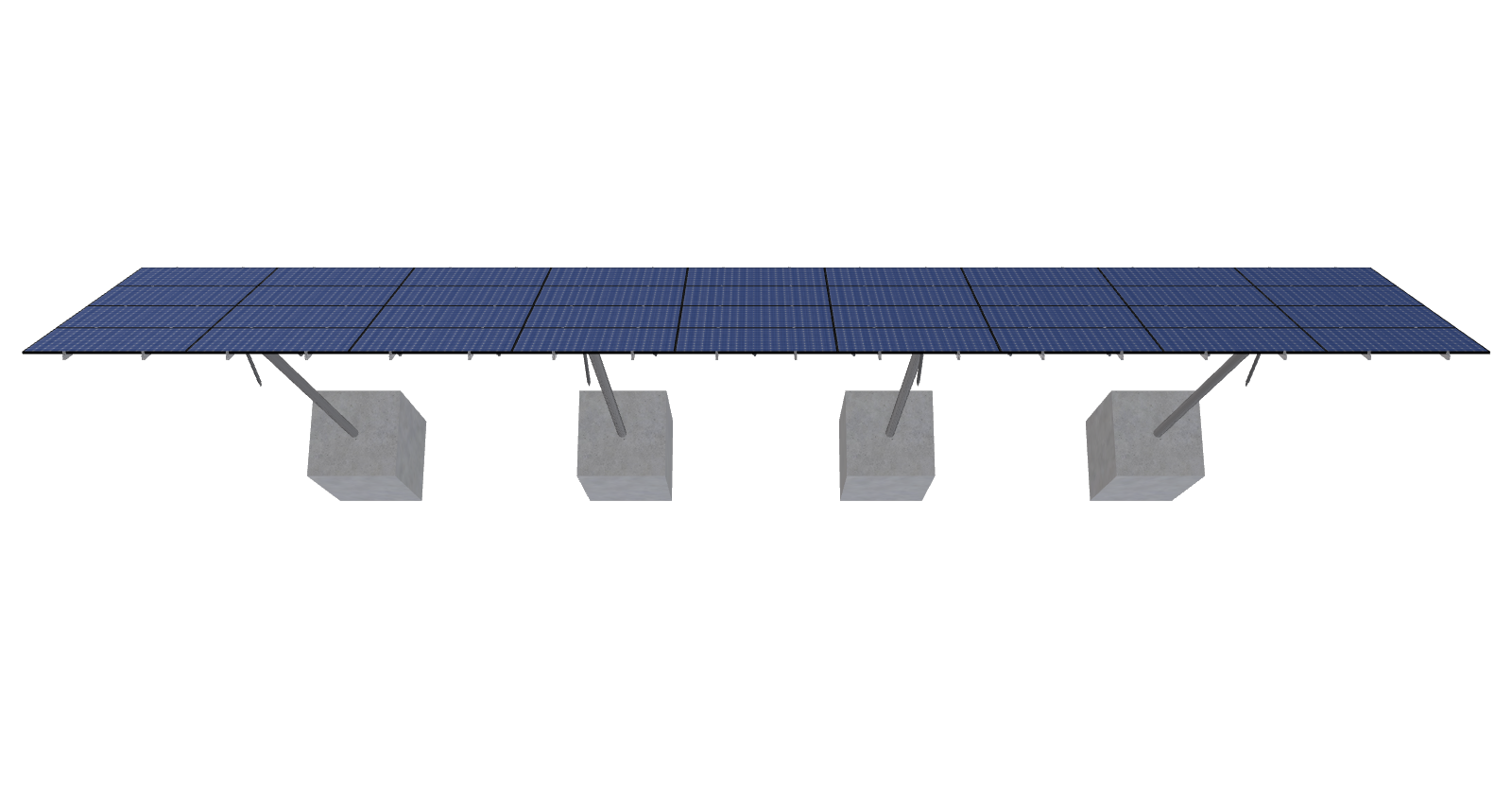

See 3D Model Here
Elk Creek SPS 1 55deg 083023 D
$18,552.66
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3272.2200000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-8TOP-HD-45-L-4HX9W-D2FF |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 21.16 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 792.00 |
| GROUND CLEARANCE | 15.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1017.01 |
| ARRAY WIDTH | 67.65 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 89.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 66.00 |
| GROUND TO TOP | 27.25 |
| PROJECTED PANEL HEIGHT | 12.18 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 172.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | ELK, CREEK, SPS, 1, 55DEG, 083023, D |
| SITE ADDRESS | M73J+HGQ, ALDER, SPRINGS, CA, 95939, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | III |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 60.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 17669.20 |
| TOTAL WEIGHT | 3272.22 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/d7a81371-7b88-4832-9f41-28abc369ed26.pdf |
|
| ID | 2583.00 |
| 3D Solar link |
