This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.79 inches by 44.64 inches and an array layout of 7 wide by 4 high.

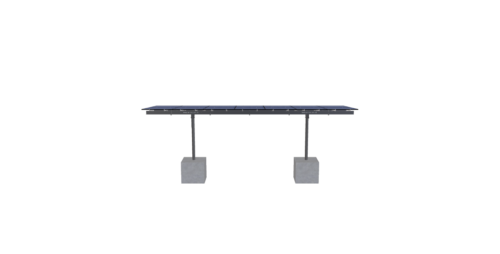

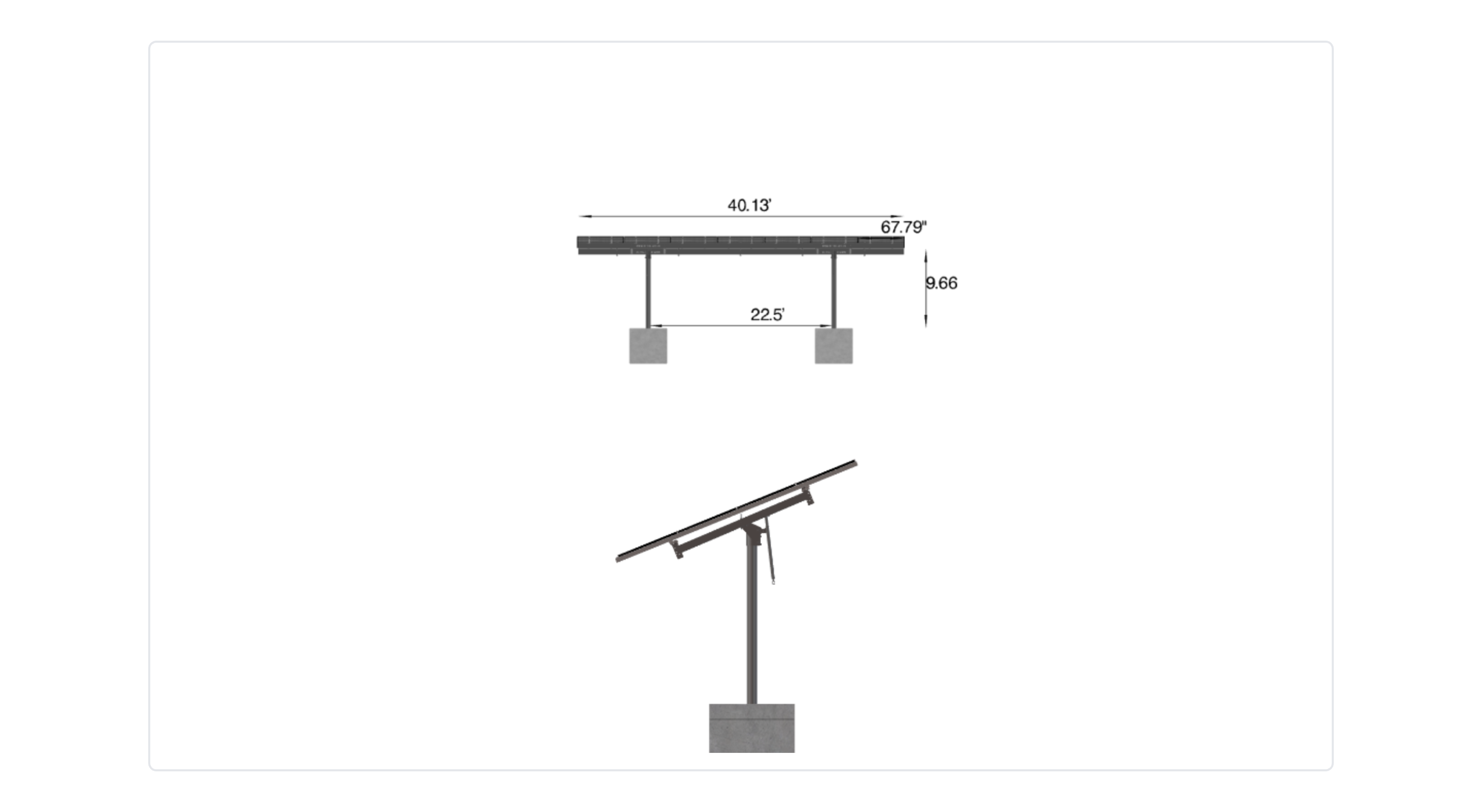

This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
EverardoJacobo-JB-RevA
$8,807.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.79 inches by 44.64 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1559.54 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-57-L-4HX7W-51A7 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.66 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.25 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 2.00 |
| MODULE AREA | 603.79 |
| ARRAY WIDTH | 40.13 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.56 |
| MODULE LENGTH | 67.79 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 10.30 |
| PROJECTED PANEL HEIGHT | 1.30 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | EVERARDOJACOBO-JB-REVA |
| SITE ADDRESS | RIVERDALE, CA, 93656, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 8807.21 |
| TOTAL WEIGHT | 1559.54 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/fa6ed7a1-96ab-45ca-87ad-bf3911c1986b.pdf |
|
| ID | 2080.00 |
| 3D Solar link |
