First United Methodist Church – 75 mods – V1Jb

$21,336.39

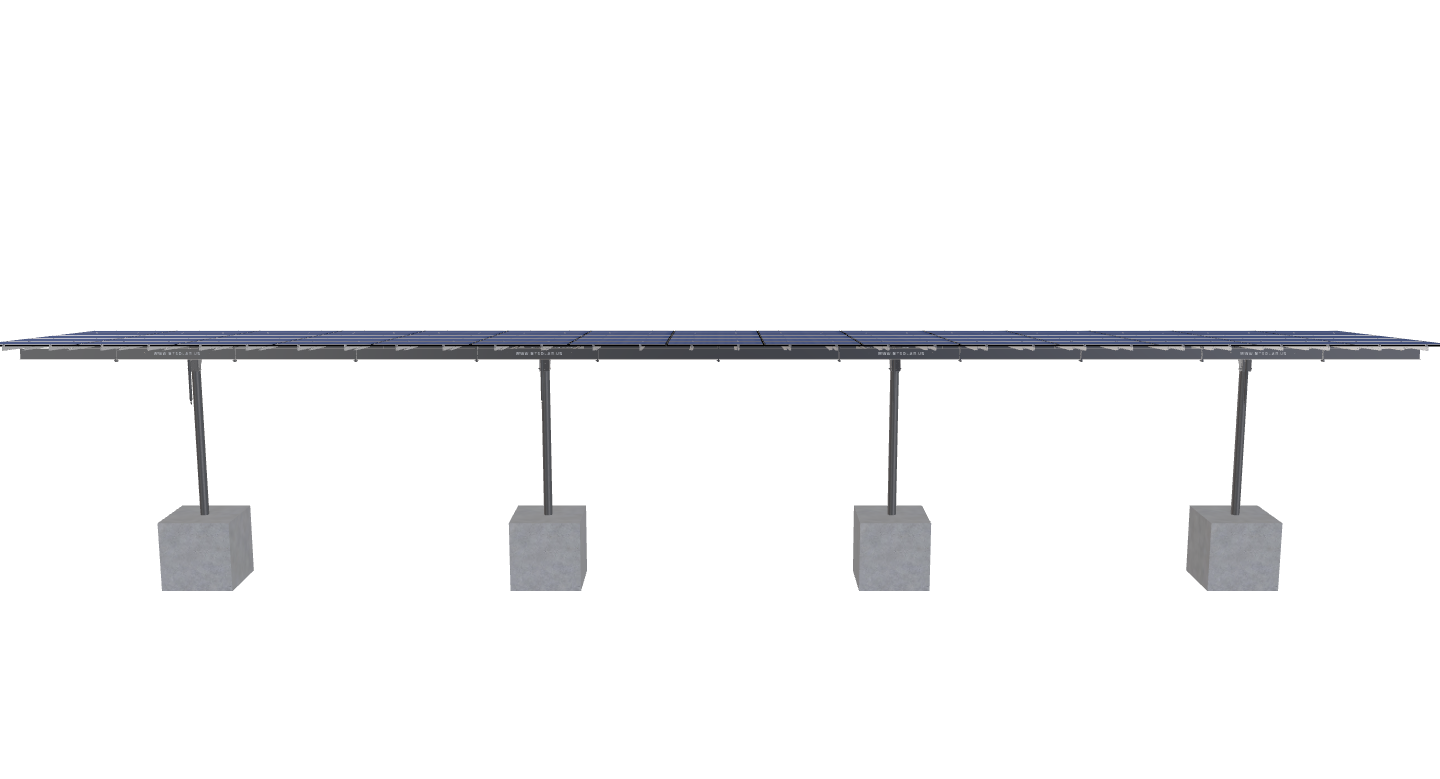

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.9 inches and an array layout of 15 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-22.5-6TOP-SD-72-L-5Hx15W-6DKL Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.9 inches and an array layout of 15 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4287.6 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-22.5-6TOP-SD-72-L-5HX15W-6DKL

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

22.50

POLE HEIGHT

10.75

WING SPAN

72.00

MAX FOUNDATION DEPTH

4.50

TILT ANGLE

5.00

CANTILEVER

1044.00

GROUND CLEARANCE

10.00

NO POLES

4.00

MODULE AREA

1511.53

ARRAY WIDTH

87.63

ARRAY HEIGHT

17.25

RAIL LENGTH

207.00

MODULE LENGTH

69.10

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

87.00

GROUND TO TOP

11.49

PROJECTED PANEL HEIGHT

1.49

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

FIRST, UNITED, METHODIST, CHURCH, -, 75, MODS, -, V1JB

SITE ADDRESS

214, W, MAIN, ST, CARBONDALE, IL, 62901, USA

MODULE WIDTH

40.90

NUMBER ROWS

5.00

NUMBER COLUMNS

15.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

21336.39

TOTAL WEIGHT

4287.60

TOTAL PALLETS

4.00
