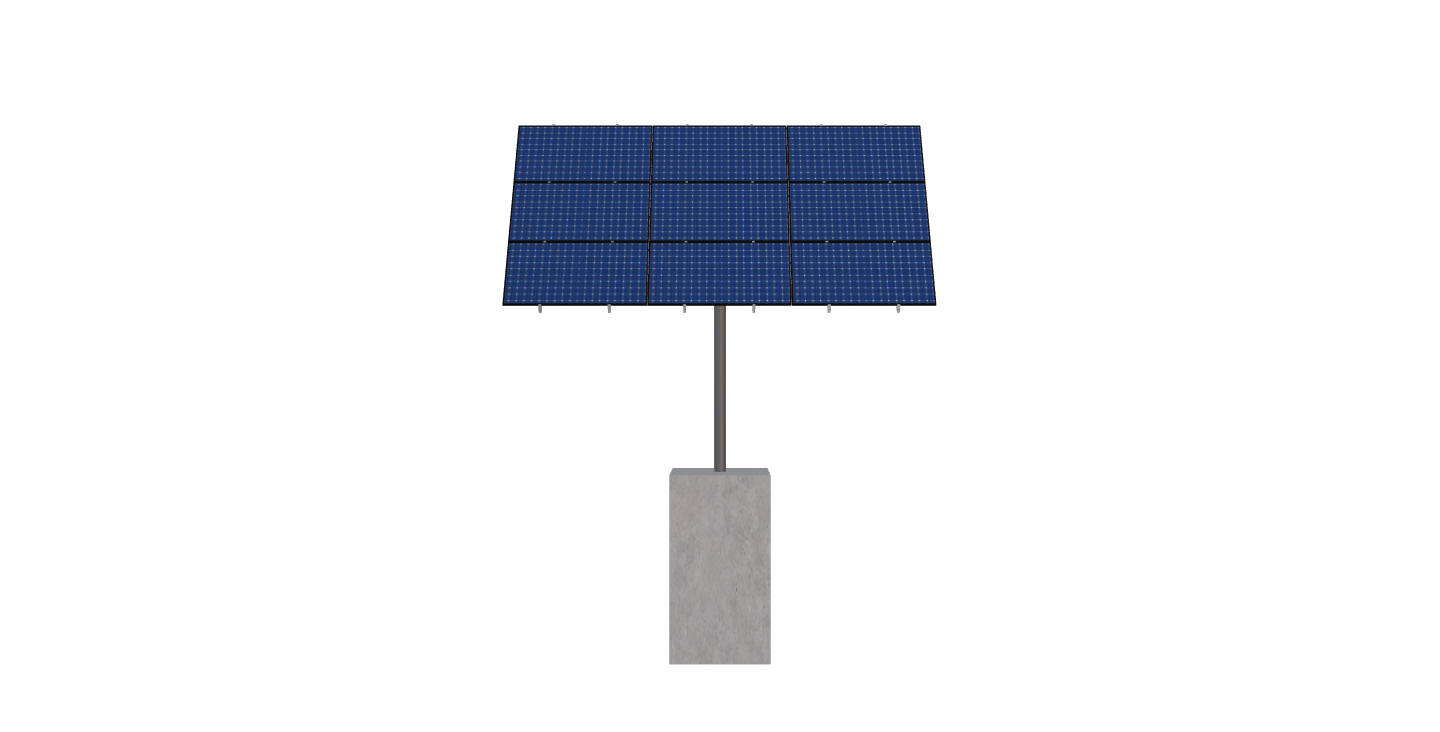

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 41 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
FletcherPark- JB-RevB
$5,070.88
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 41 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 905.9300000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-XD-57-L-3HX3W-ELD4 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.49 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 1.00 |
| MODULE AREA | 199.72 |
| ARRAY WIDTH | 19.25 |
| ARRAY HEIGHT | 10.38 |
| RAIL LENGTH | 124.50 |
| MODULE LENGTH | 76.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 15.93 |
| PROJECTED PANEL HEIGHT | 8.88 |
| WIND SPEED OVERRIDE | 180.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | FLETCHERPARK-, JB-REVB |
| SITE ADDRESS | 3WJ7+9R, BATTLE, WY, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4829.41 |
| TOTAL WEIGHT | 905.93 |
| TOTAL PALLETS | 1.00 |
