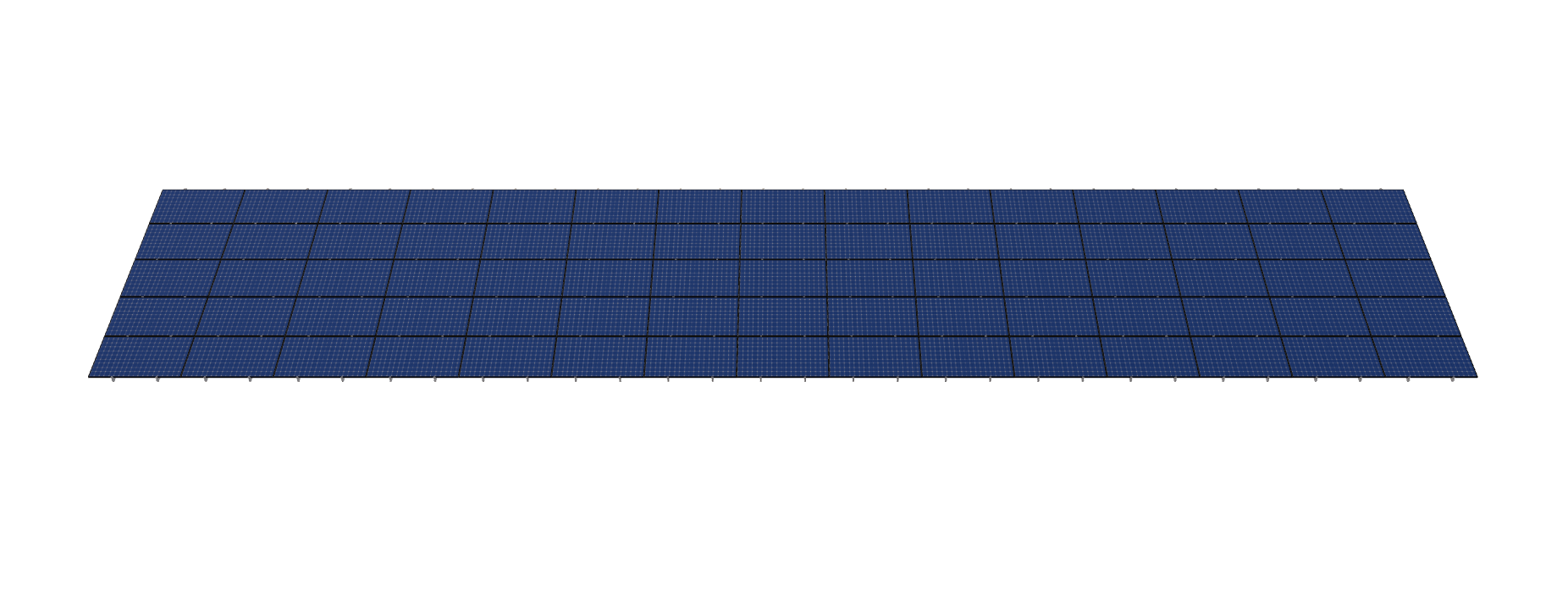

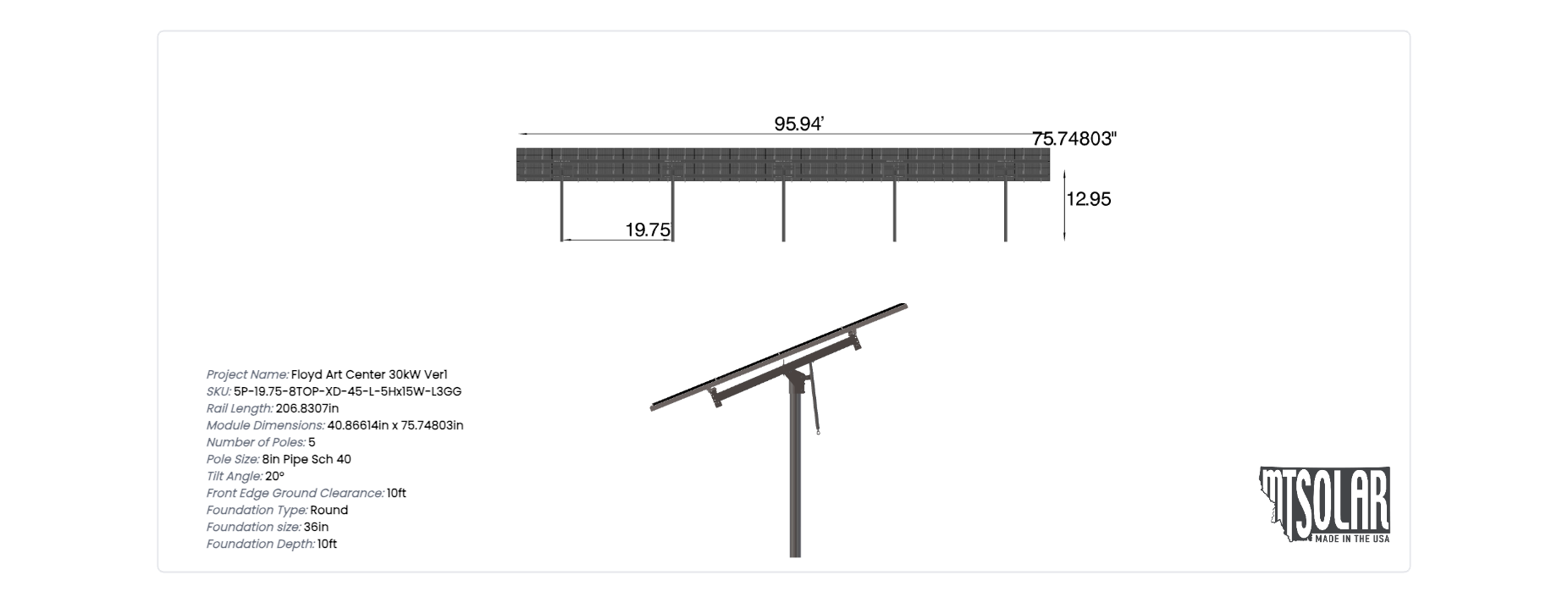

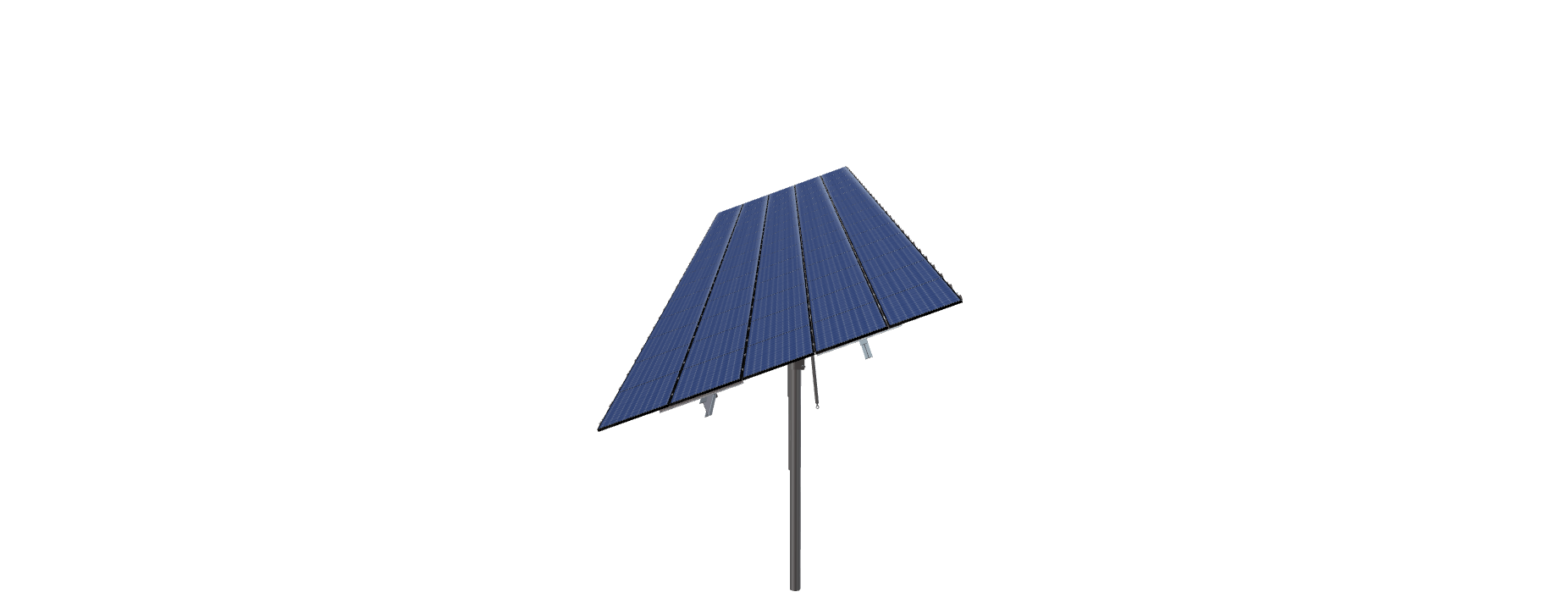

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.74803 inches by 40.86614 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Floyd Art Center 30kW Ver1
$31,214.64
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.74803 inches by 40.86614 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 6019.75 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-8TOP-XD-45-L-5HX15W-L3GG |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.95 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 10.00 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 1128.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1653.53 |
| ARRAY WIDTH | 95.94 |
| ARRAY HEIGHT | 17.24 |
| RAIL LENGTH | 206.83 |
| MODULE LENGTH | 75.75 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 94.00 |
| GROUND TO TOP | 15.90 |
| PROJECTED PANEL HEIGHT | 5.90 |
| DESIGNER NAME | OLIVER, LAMB |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 5405521511.00 |
| PROJECT ID | FLOYD, ART, CENTER, 30KW, VER1 |
| SITE ADDRESS | 220, PARKWAY, LN, S, FLOYD, VA, 24091, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 29728.23 |
| TOTAL WEIGHT | 6019.75 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/dd052881-770c-4cbb-9683-3e8ca44c2af9.pdf |
|
| ID | 9935.00 |
| 3D Solar link |
