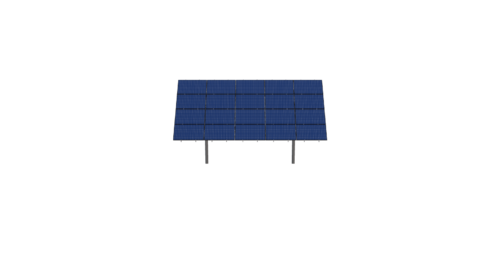

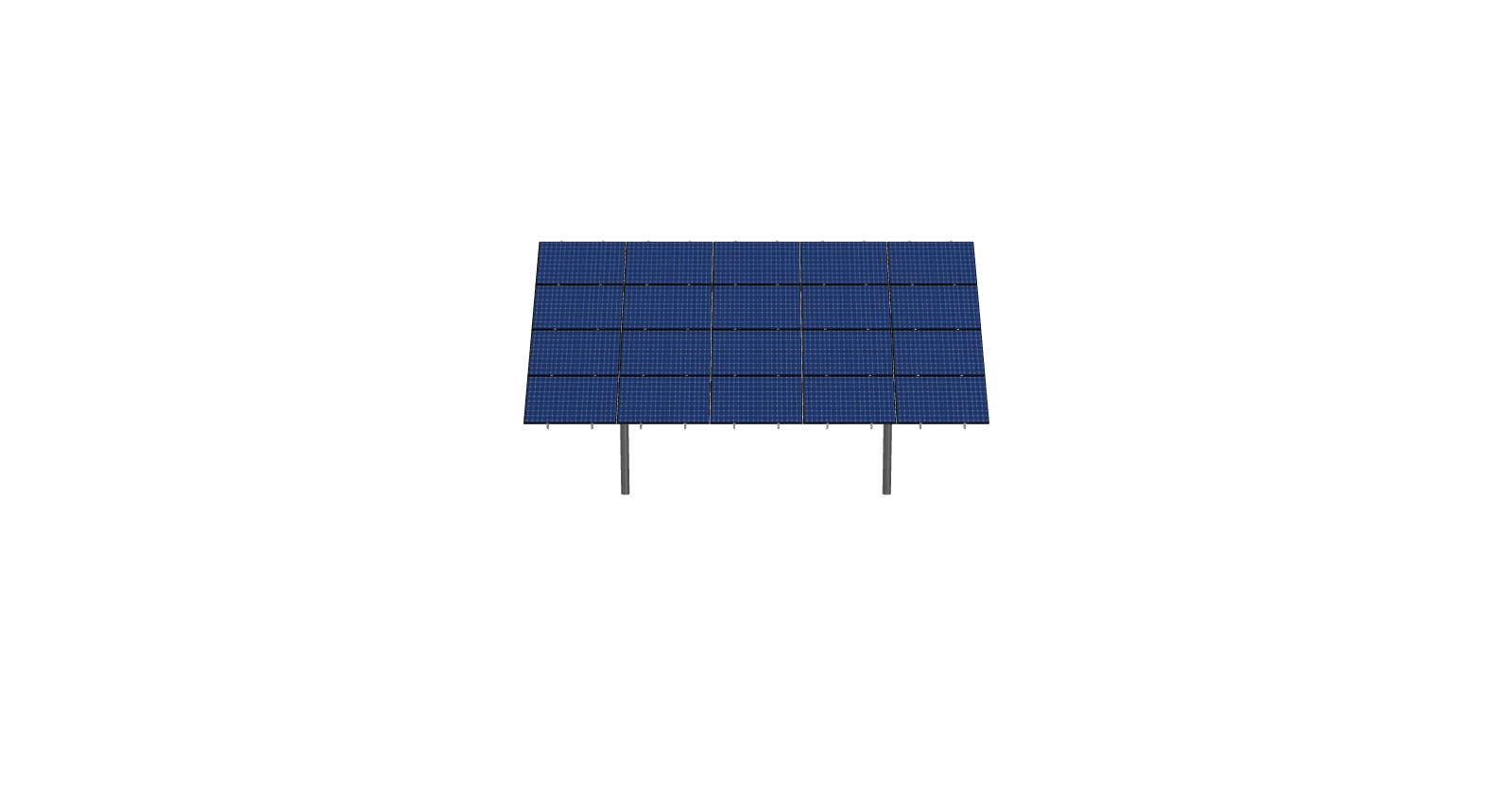

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.6 inches by 41.21 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).

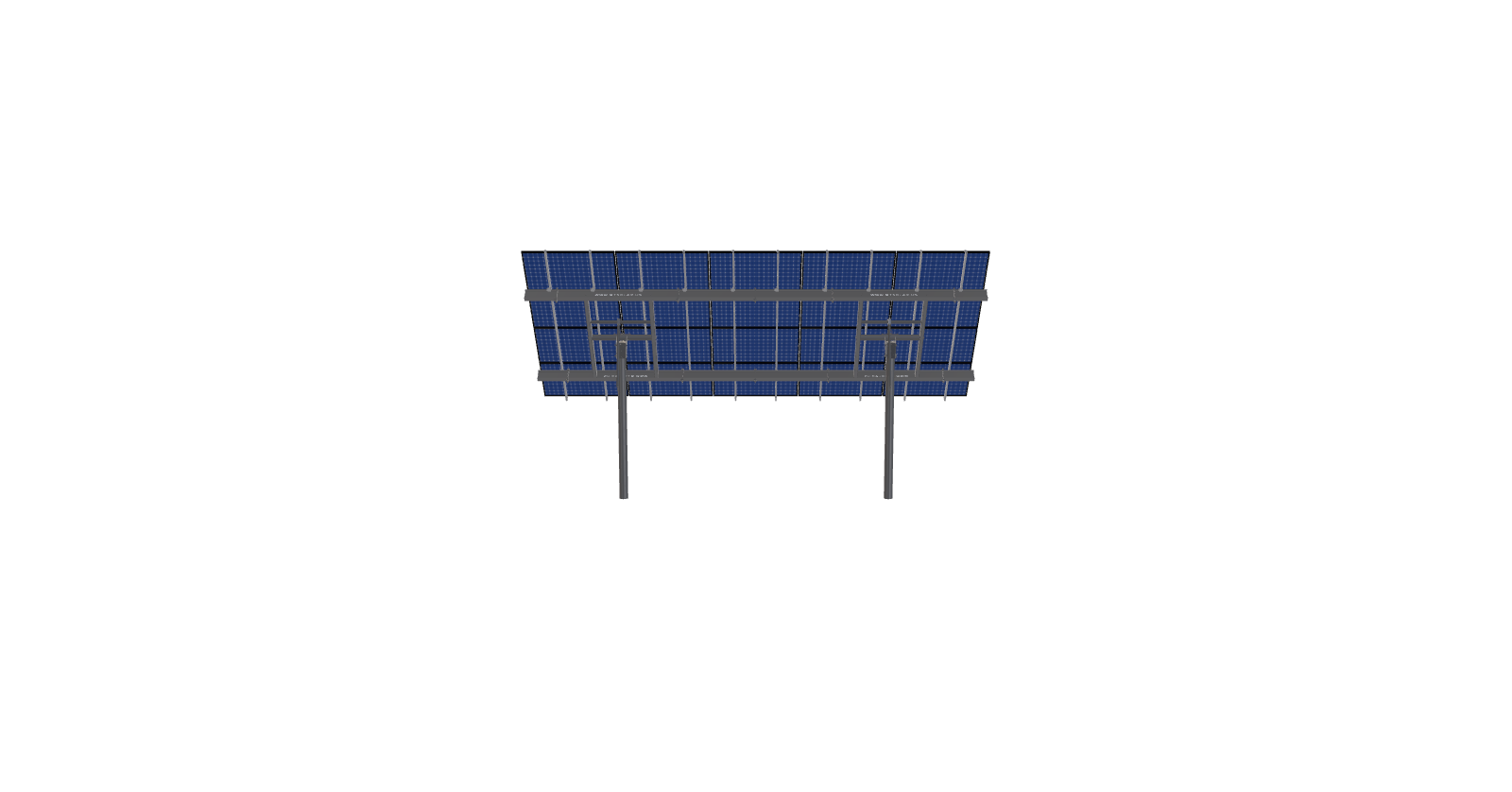

The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

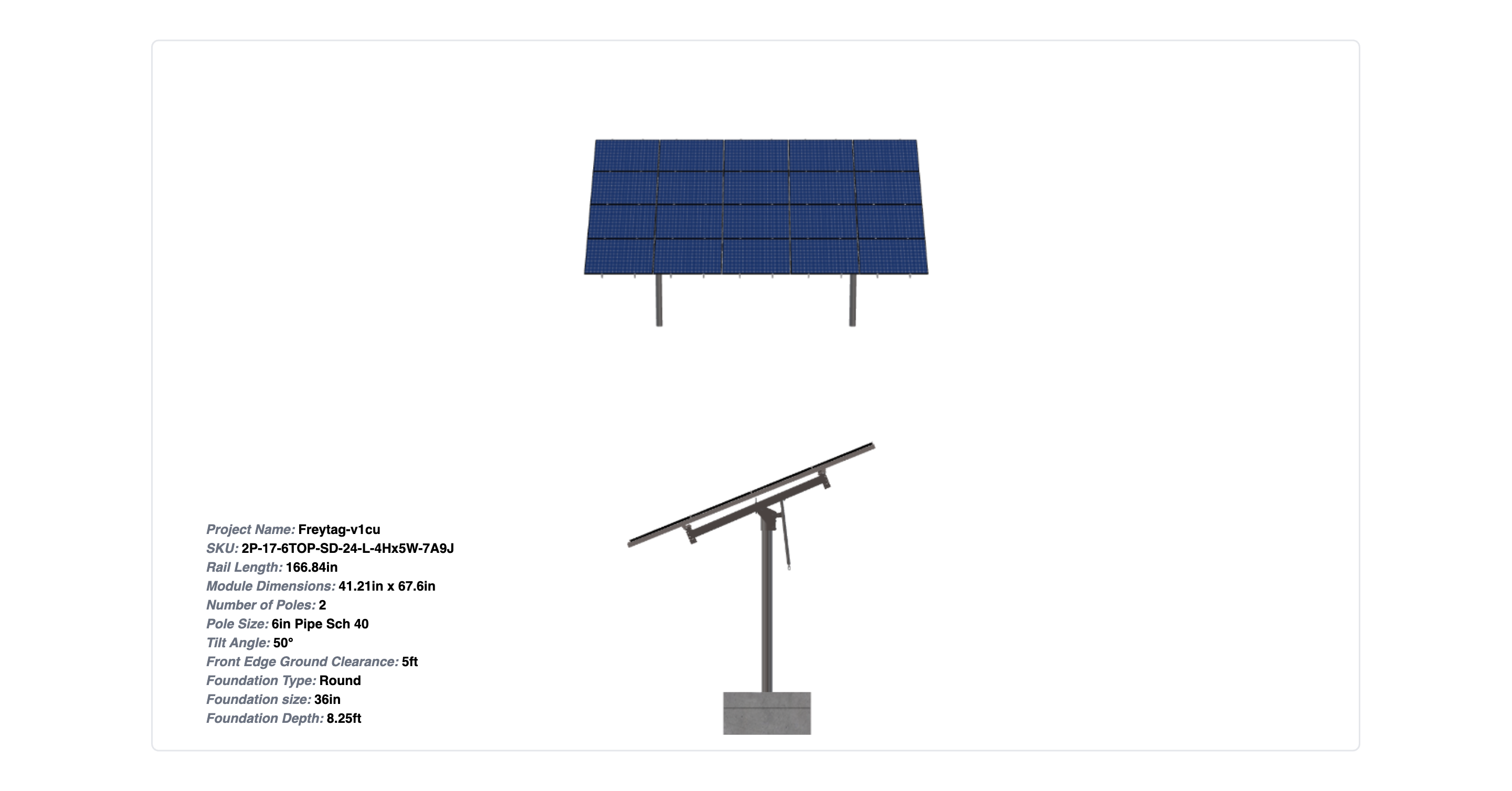

See 3D Model Here
Freytag-v1cu
$7,783.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.6 inches by 41.21 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1287.1 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-24-L-4HX5W-7A9J |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.33 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 397.40 |
| ARRAY WIDTH | 28.58 |
| ARRAY HEIGHT | 13.90 |
| RAIL LENGTH | 166.84 |
| MODULE LENGTH | 67.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 15.65 |
| PROJECTED PANEL HEIGHT | 10.65 |
| DESIGNER NAME | TALMATH |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 9705310219.00 |
| PROJECT ID | FREYTAG-V1CU |
| SITE ADDRESS | 100, COUNTY, RD, #410, GRANBY, CO, 80446, USA |
| MODULE WIDTH | 41.21 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 7412.92 |
| TOTAL WEIGHT | 1287.10 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/9be71dd3-54bd-4bff-bd46-491400f54030.pdf |
|
| ID | 10646.00 |
| 3D Solar link |
