This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

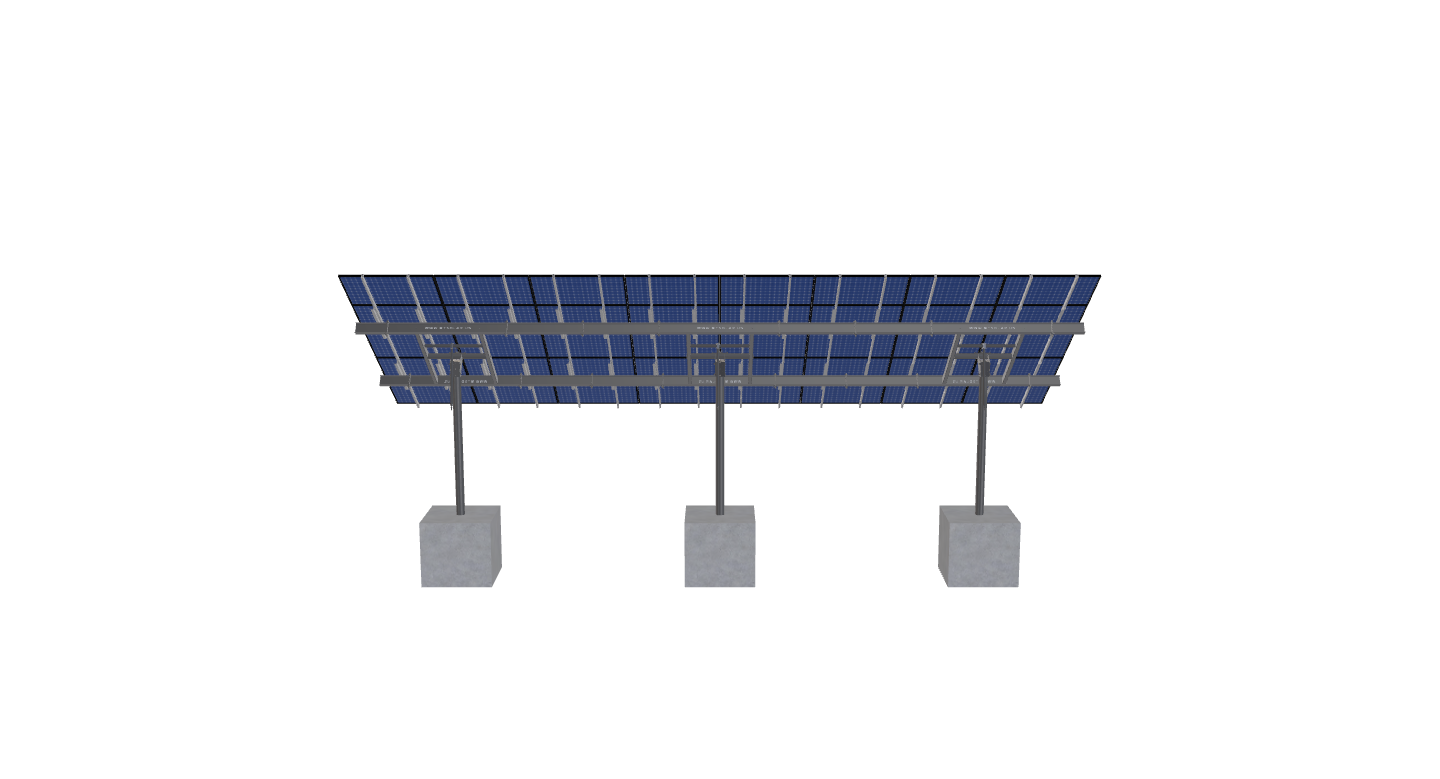

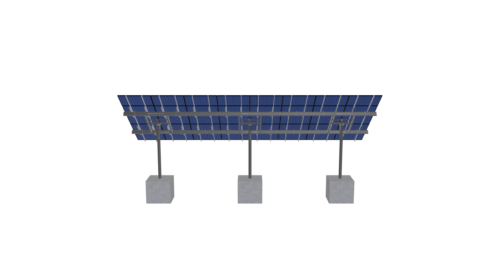

See 3D Model Here
Fri Harbor – Crystaline – V1Jb
$17,083.93
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

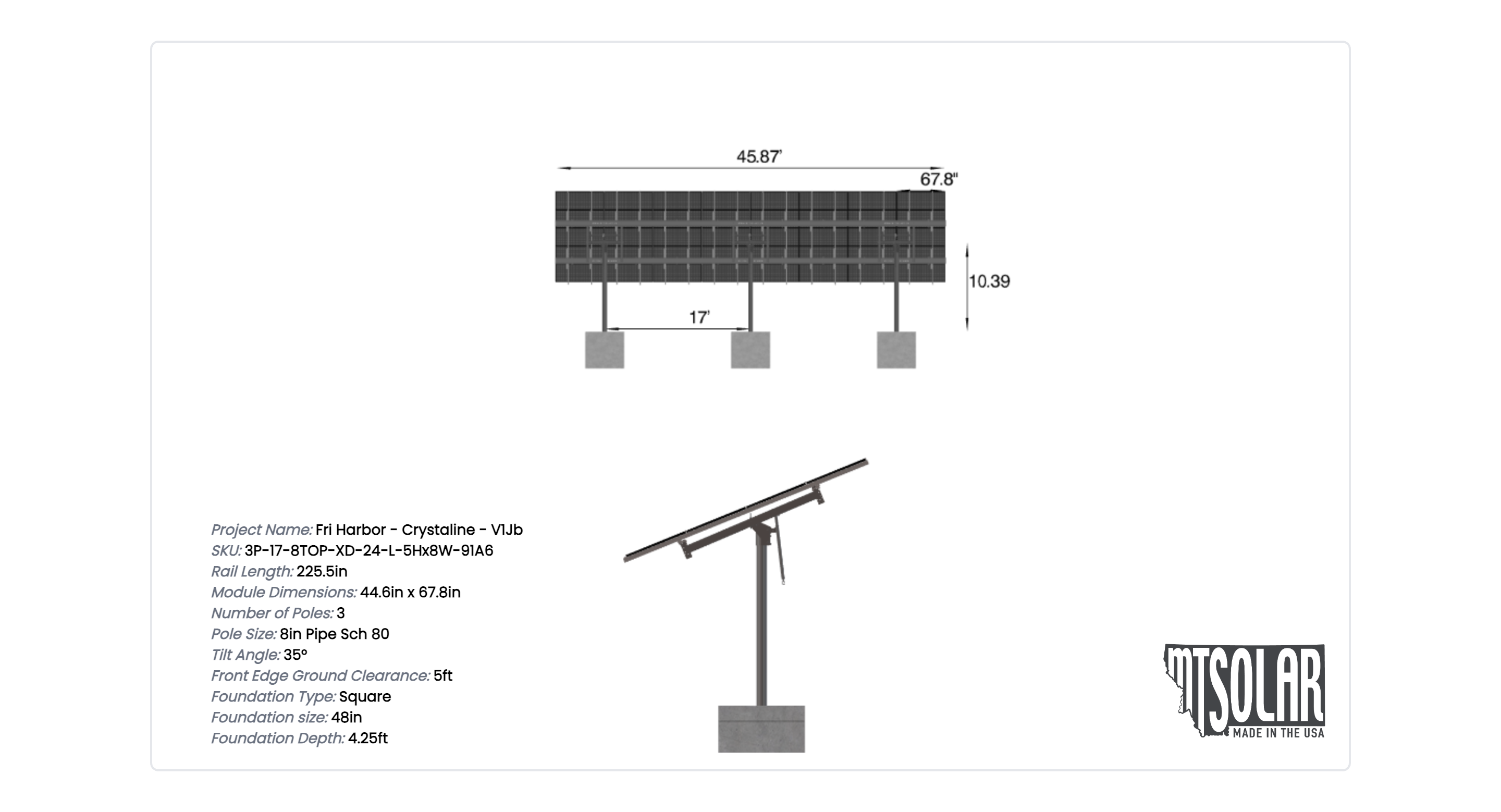

| Weight | 3235.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-XD-24-L-5HX8W-91A6 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.39 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 4.25 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 861.91 |
| ARRAY WIDTH | 45.87 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 15.78 |
| PROJECTED PANEL HEIGHT | 10.78 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | FRI, HARBOR, -, CRYSTALINE, -, V1JB |
| SITE ADDRESS | 1829, WHITE, POINT, RD, FRIDAY, HARBOR, WA, 98250, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | CRYSTALINE |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16270.41 |
| TOTAL WEIGHT | 3235.37 |
| TOTAL PALLETS | 3.00 |
