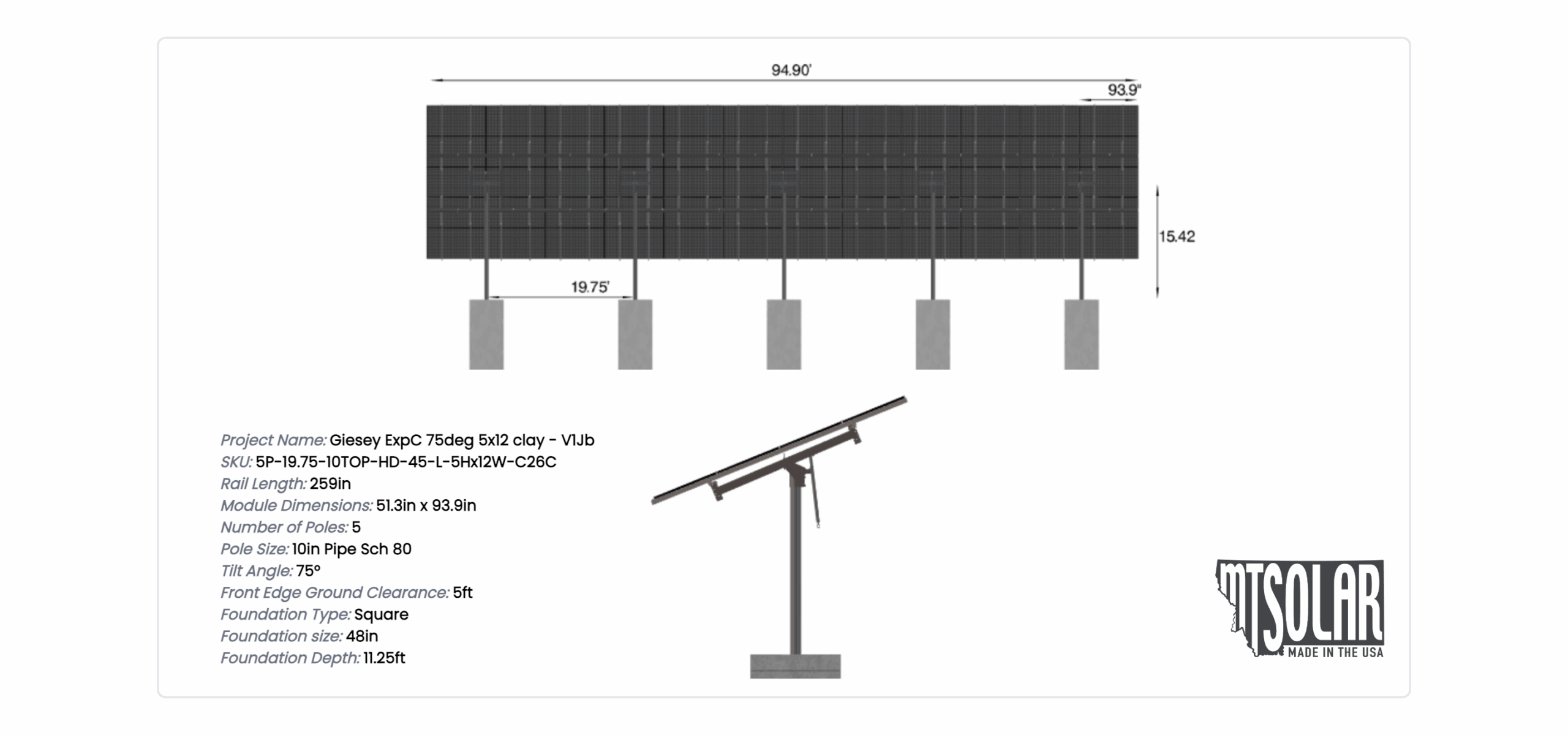

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.9 inches by 51.3 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

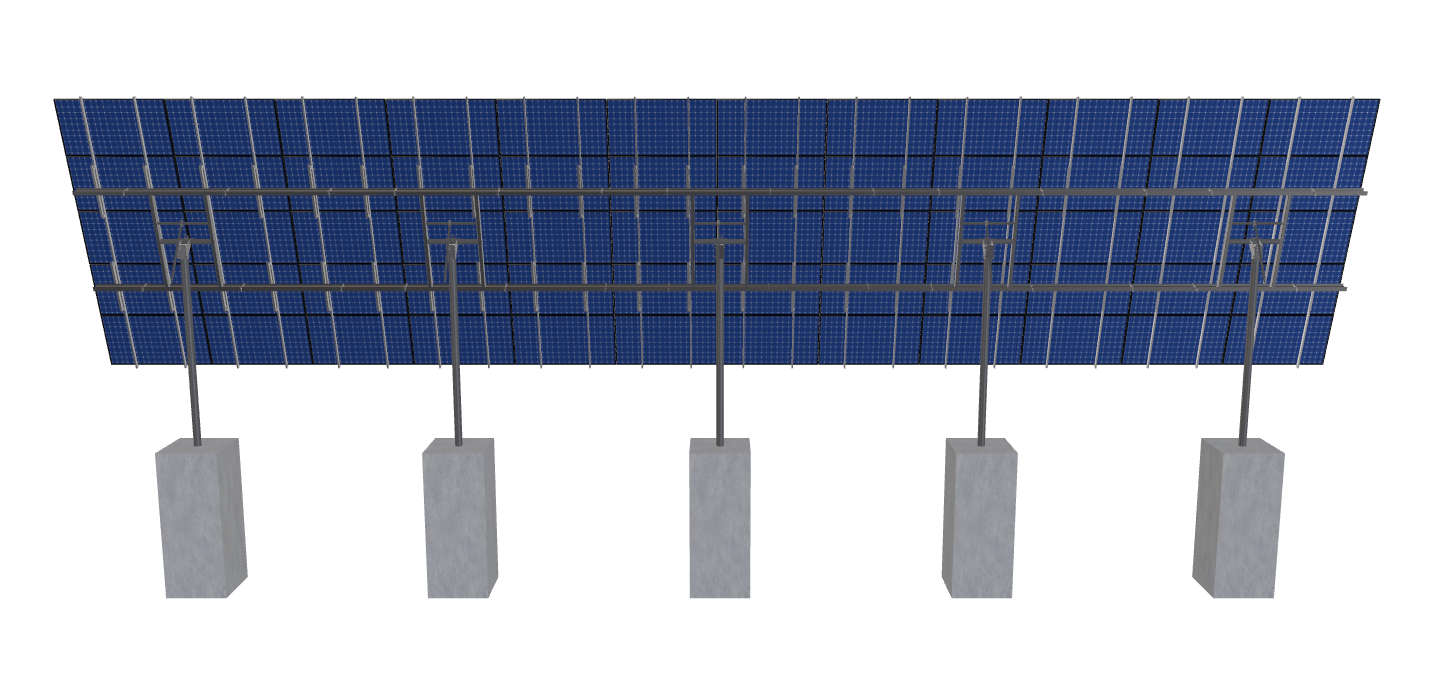

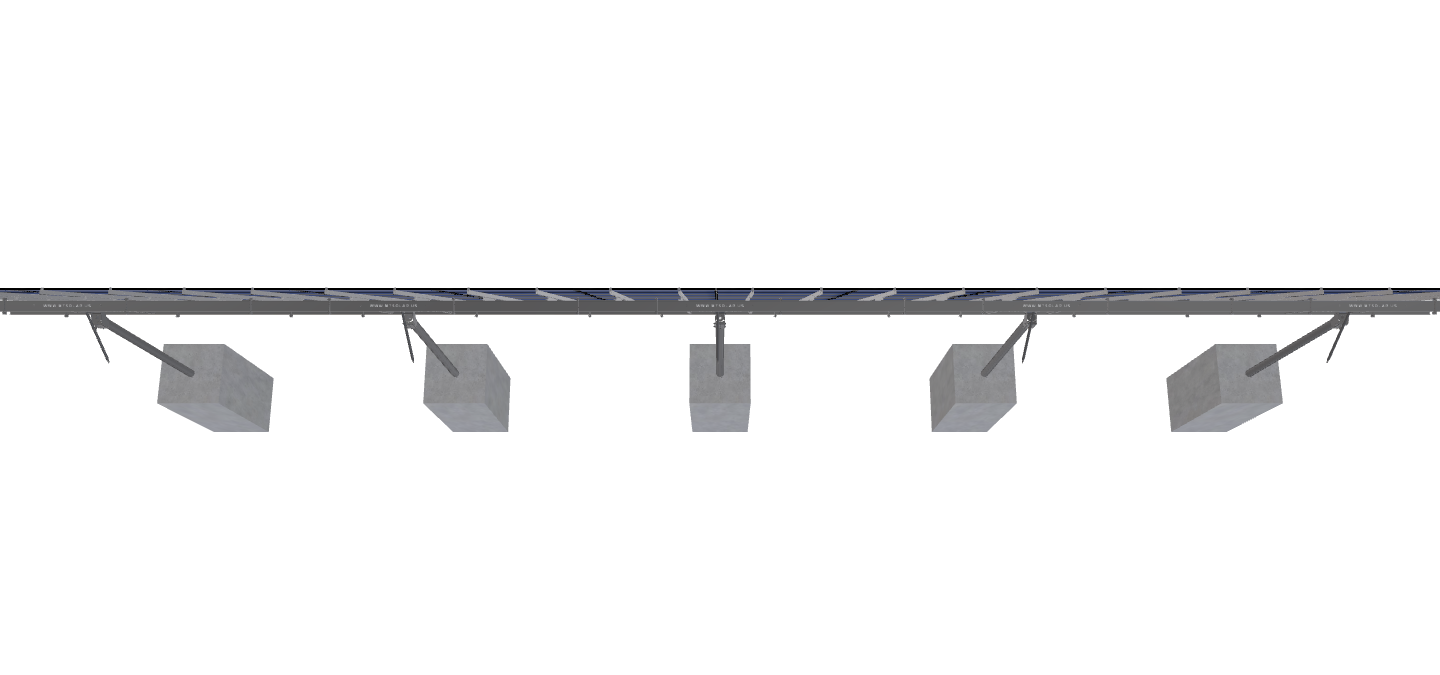

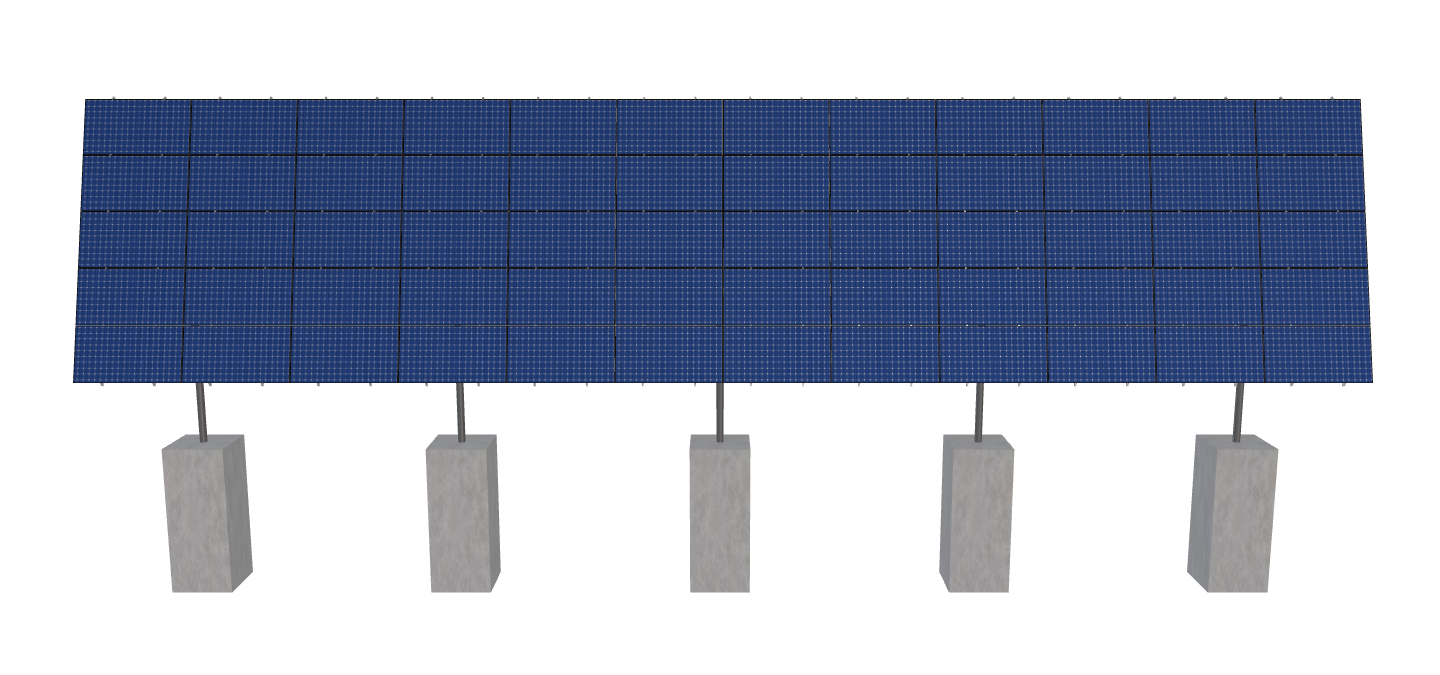

See 3D Model Here
Giesey ExpC 75deg 5×12 clay – V1Jb
$26,937.96
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.9 inches by 51.3 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5200.95 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-10TOP-HD-45-L-5HX12W-C26C |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.42 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 11.25 |
| TILT ANGLE | 75.00 |
| CANTILEVER | 1128.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 2048.26 |
| ARRAY WIDTH | 94.90 |
| ARRAY HEIGHT | 21.58 |
| RAIL LENGTH | 259.00 |
| MODULE LENGTH | 93.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 94.00 |
| GROUND TO TOP | 25.85 |
| PROJECTED PANEL HEIGHT | 20.85 |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | GIESEY, EXPC, 75DEG, 5X12, CLAY, -, V1JB |
| SITE ADDRESS | 8385, JORDAN, RD, MELVIN, MI, 48454, USA |
| MODULE INFO | RISEN, RSM132-8-720-740BHDG, THORNOVA, SOLAR, TS-BGT66(700-720)-G12 |
| MODULE WIDTH | 51.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | CLAY |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 26937.96 |
| TOTAL WEIGHT | 5200.95 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/a9fff696-99f0-4775-b2b3-2a6faace91ec.pdf |
|
| ID | 13435.00 |
| 3D Solar link |
