Gow Expanded

$15,250.67

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

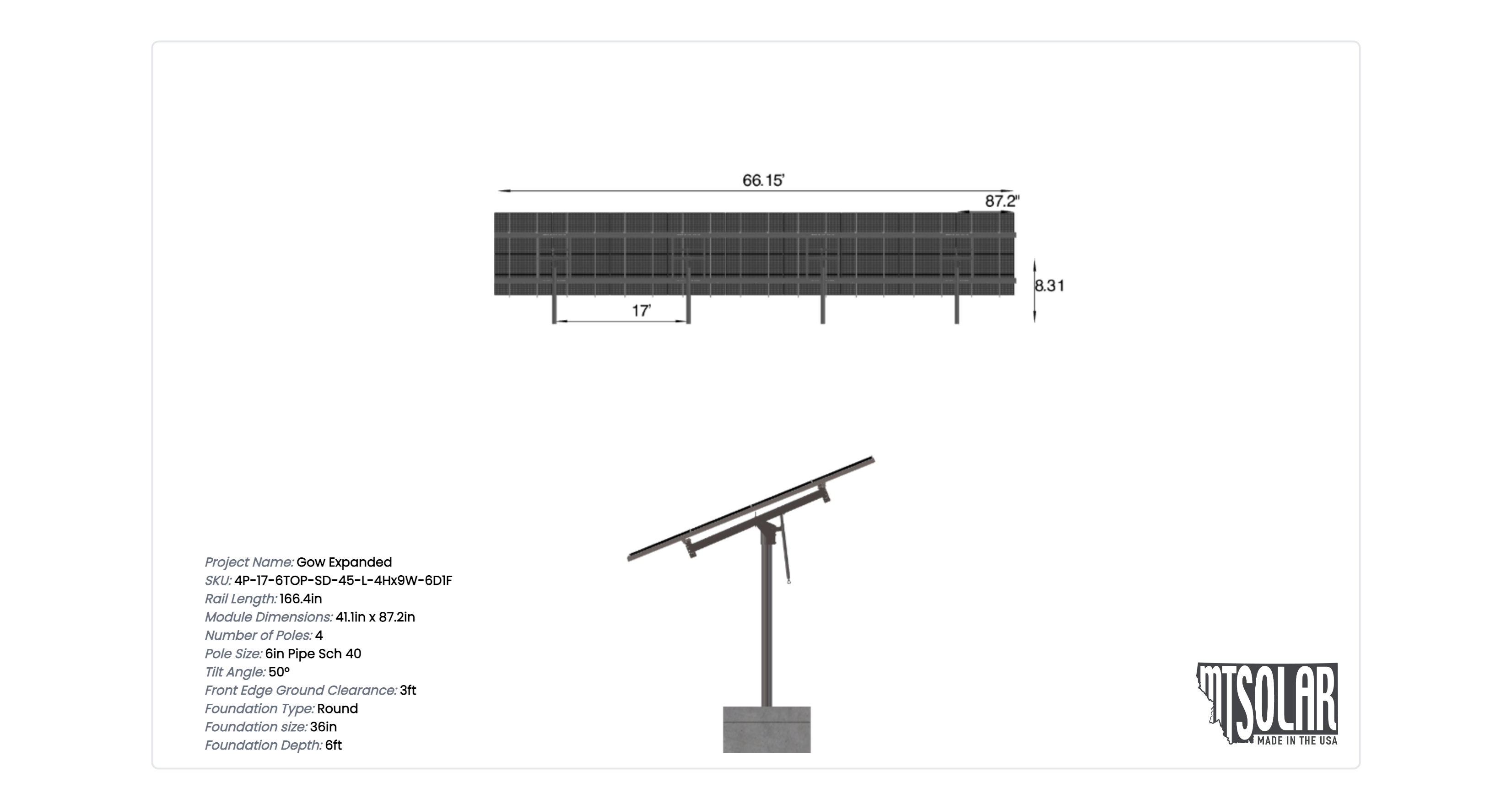

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-17-6TOP-SD-45-L-4Hx9W-6D1F Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2722.98 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-17-6TOP-SD-45-L-4HX9W-6D1F

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

17.00

POLE HEIGHT

8.31

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

50.00

CANTILEVER

792.00

GROUND CLEARANCE

3.00

NO POLES

4.00

MODULE AREA

917.28

ARRAY WIDTH

66.15

ARRAY HEIGHT

13.87

RAIL LENGTH

166.40

MODULE LENGTH

87.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

66.00

GROUND TO TOP

13.56

PROJECTED PANEL HEIGHT

10.49

PROJECT ID

GOW, EXPANDED

SITE ADDRESS

5811, TWIN, CREEK, RD, SALT, LAKE, CITY, UT, 84108, USA

MODULE WIDTH

41.10

NUMBER ROWS

4.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

86.00

SNOW LOAD OVERRIDE

76.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

15250.67

TOTAL WEIGHT

2722.98

TOTAL PALLETS

4.00
