This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 130 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

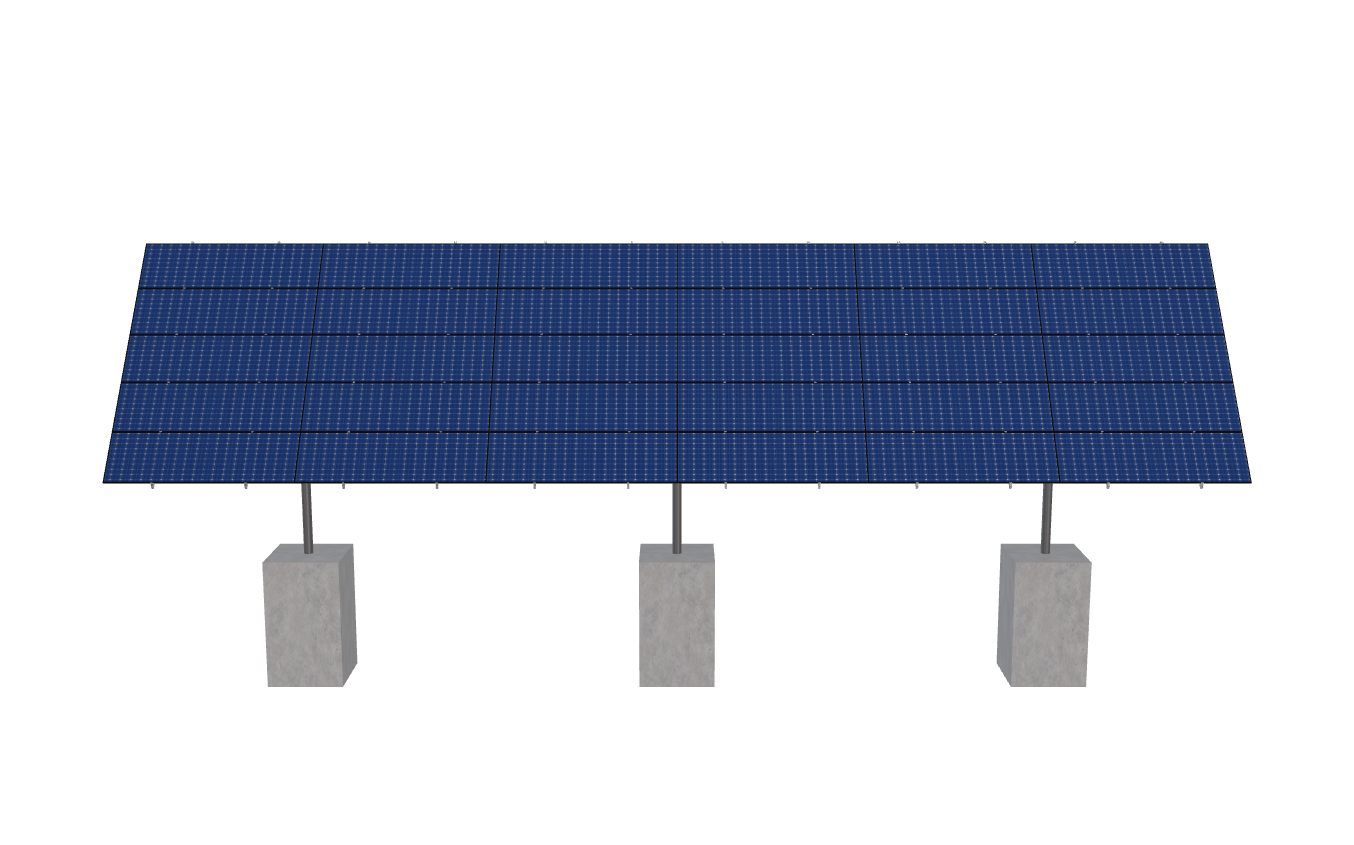

See 3D Model Here
green factor insulation alt power suppliment
$16,019.73
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 130 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3104.25 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-72-L-5HX6W-0GI8 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.65 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 52.00 |
| CANTILEVER | 774.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1105.31 |
| ARRAY WIDTH | 65.50 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 130.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 64.50 |
| GROUND TO TOP | 18.30 |
| PROJECTED PANEL HEIGHT | 13.30 |
| DESIGNER NAME | CONNOR |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7856159290.00 |
| PROJECT ID | GREEN, FACTOR, INSULATION, ALT, POWER, SUPPLIMENT |
| SITE ADDRESS | 1881, E, 1450, RD, LAWRENCE, KS, 66044, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15256.89 |
| TOTAL WEIGHT | 3104.25 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/1d910ee8-d666-46a1-a863-a1e155cda2dc.pdf |
|
| ID | 8337.00 |
| 3D Solar link |
