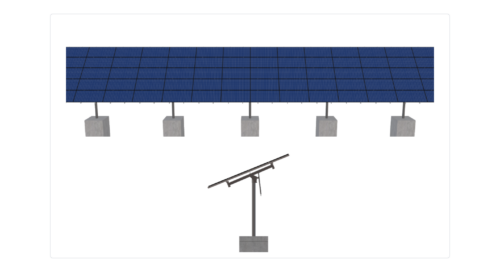

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41.1 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
GreggBradburyGroundMount-RevE-JB
$30,028.46
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41.1 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 6101.31 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-10TOP-XD-72-L-5HX14W-8613 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.23 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 1182.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1718.89 |
| ARRAY WIDTH | 99.17 |
| ARRAY HEIGHT | 17.33 |
| RAIL LENGTH | 208.00 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 98.50 |
| GROUND TO TOP | 17.39 |
| PROJECTED PANEL HEIGHT | 12.32 |
| WIND SPEED OVERRIDE | 150.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | GREGGBRADBURYGROUNDMOUNT-REVE-JB |
| SITE ADDRESS | 8775, BLUE, MOUNTAIN, DR, GOLDEN, CO, 80403, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 30028.46 |
| TOTAL WEIGHT | 6101.31 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/5be771f4-5611-44ab-9445-b018e177421d.pdf |
|
| ID | 3856.00 |
| 3D Solar link |
