This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

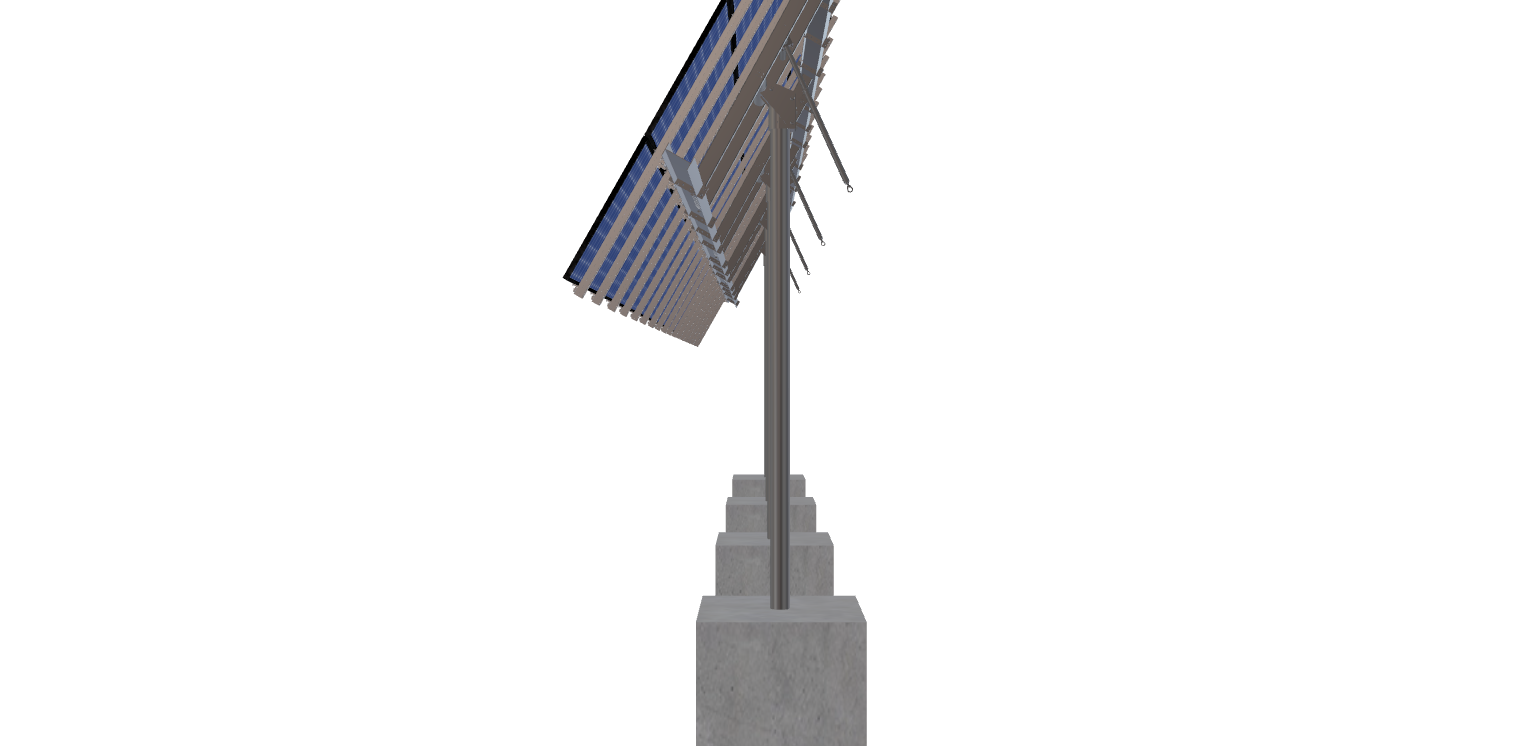

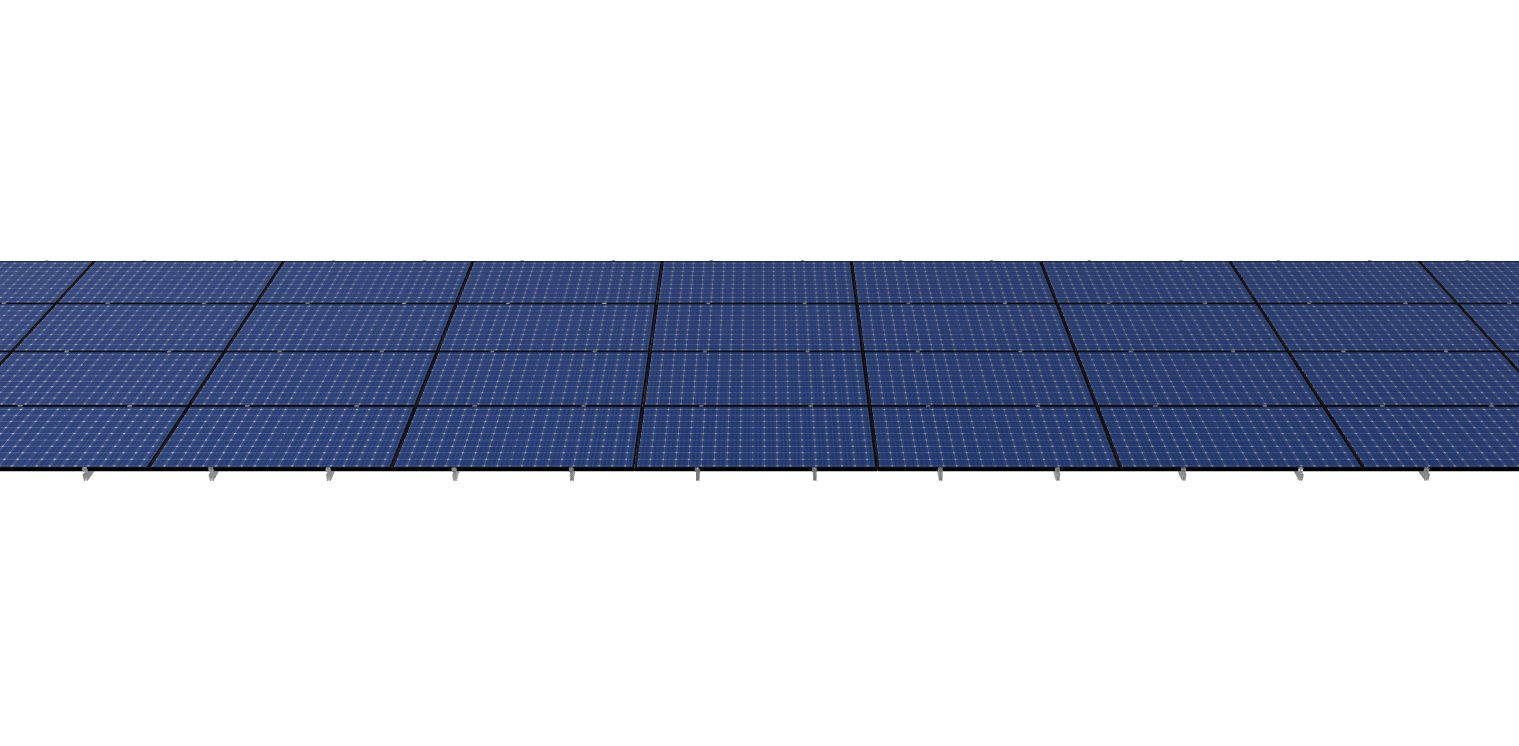

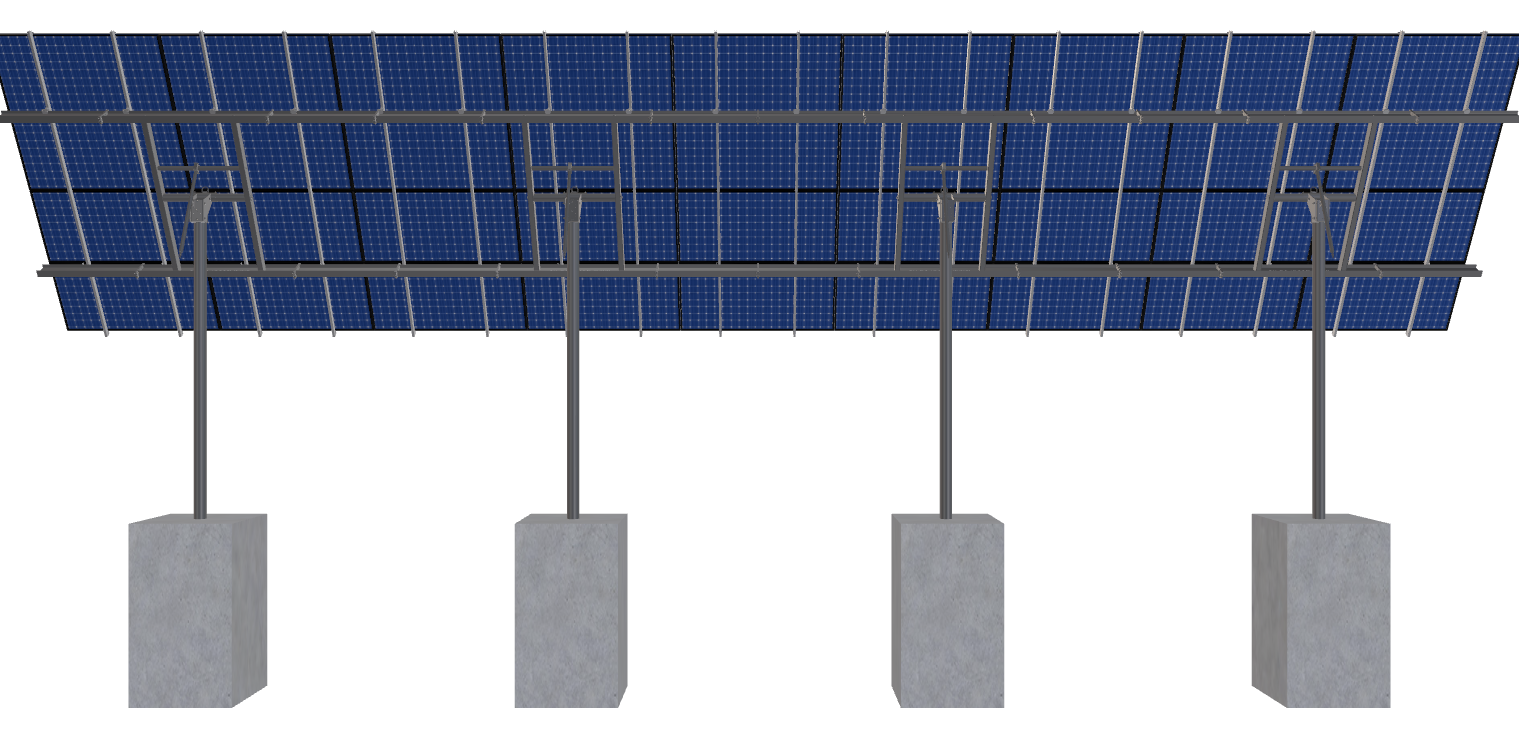

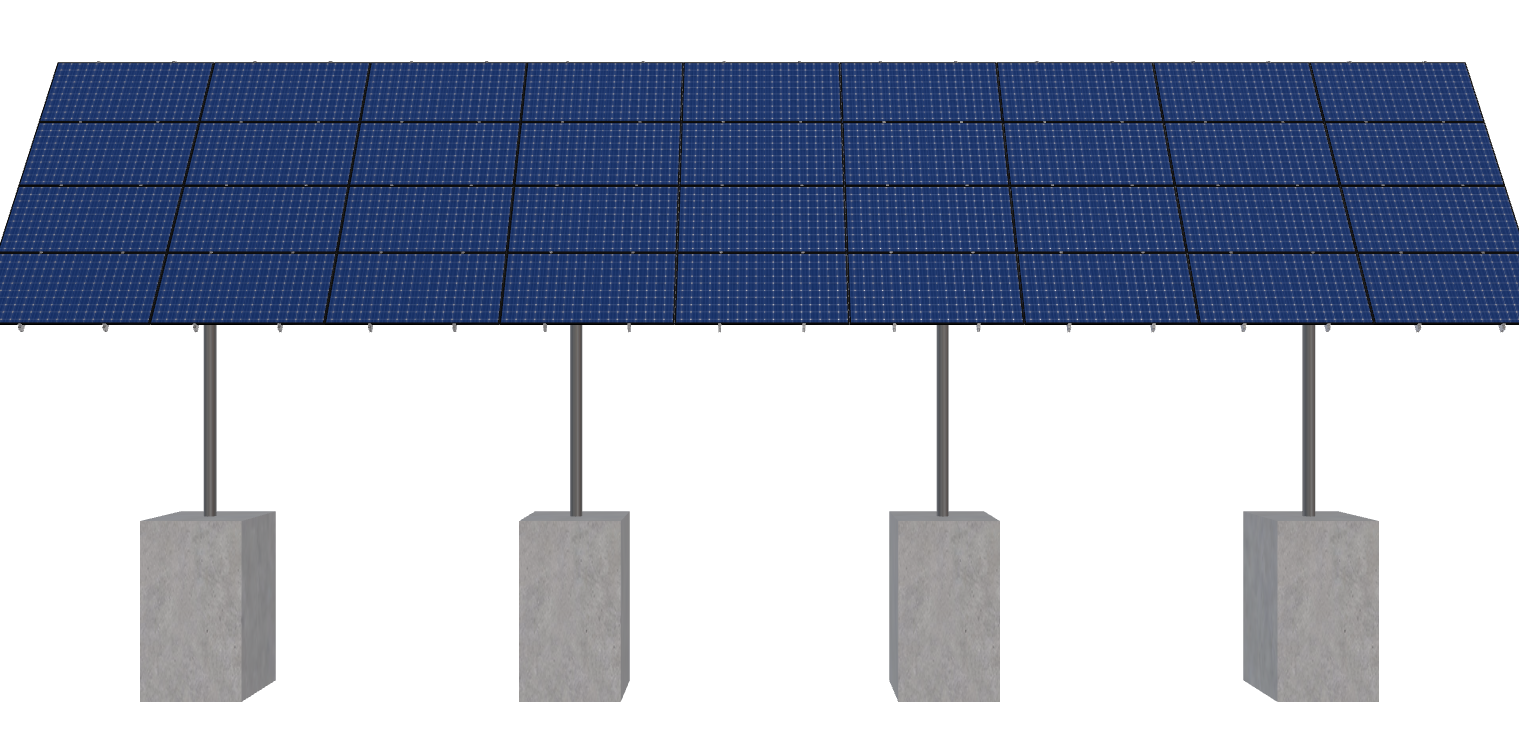

See 3D Model Here
Greybrook Barn RevA
$15,682.71
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2818.98 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-8TOP-SD-57-L-4HX9W-F7FE |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 14.52 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 816.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1023.32 |
| ARRAY WIDTH | 68.01 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.56 |
| MODULE LENGTH | 89.68 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.00 |
| GROUND TO TOP | 20.96 |
| PROJECTED PANEL HEIGHT | 12.89 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | GREYBROOK, BARN, REVA |
| SITE ADDRESS | 190, SOKOKIS, TRAIL, N, CORNISH, ME, 04020, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15682.71 |
| TOTAL WEIGHT | 2818.98 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/0d101a29-a503-4d76-8634-676a58977d2d.pdf |
|
| ID | 1506.00 |
| 3D Solar link |
