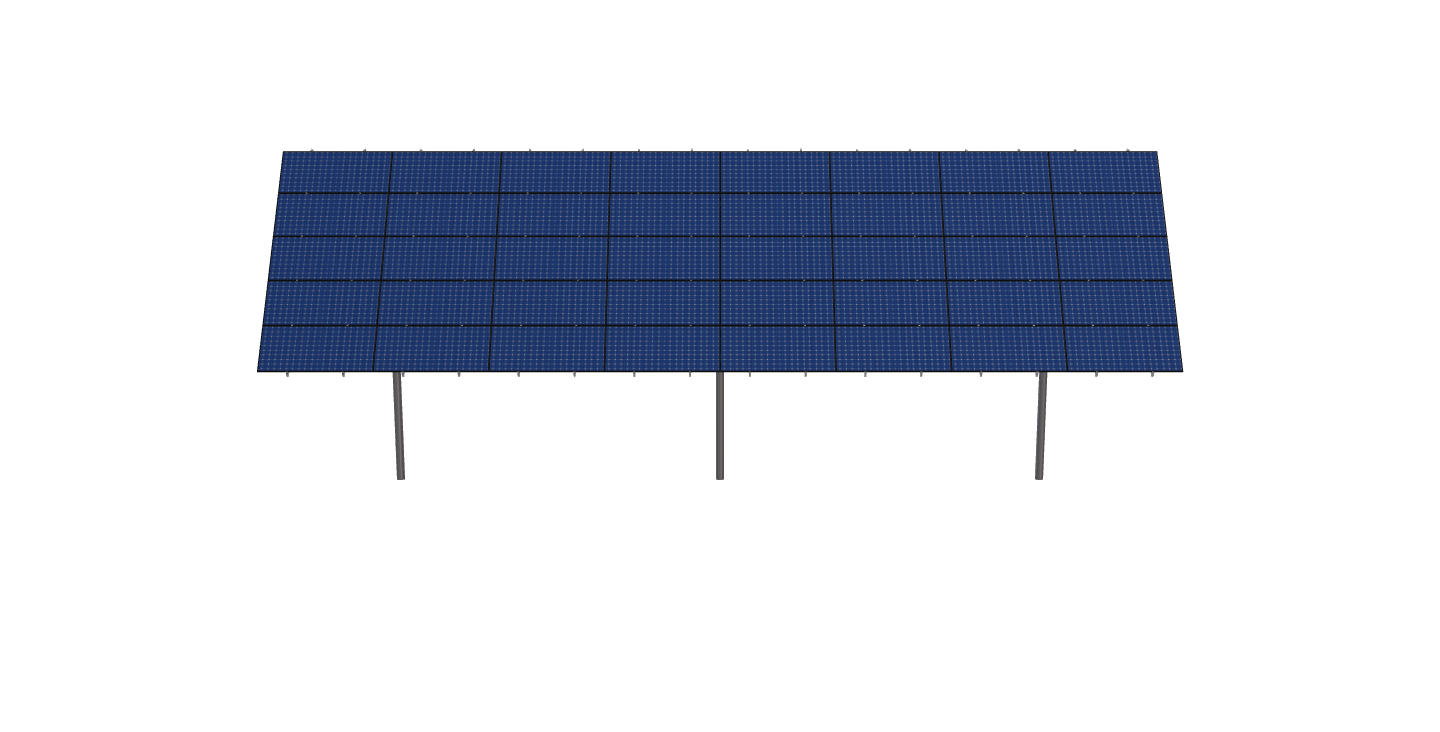

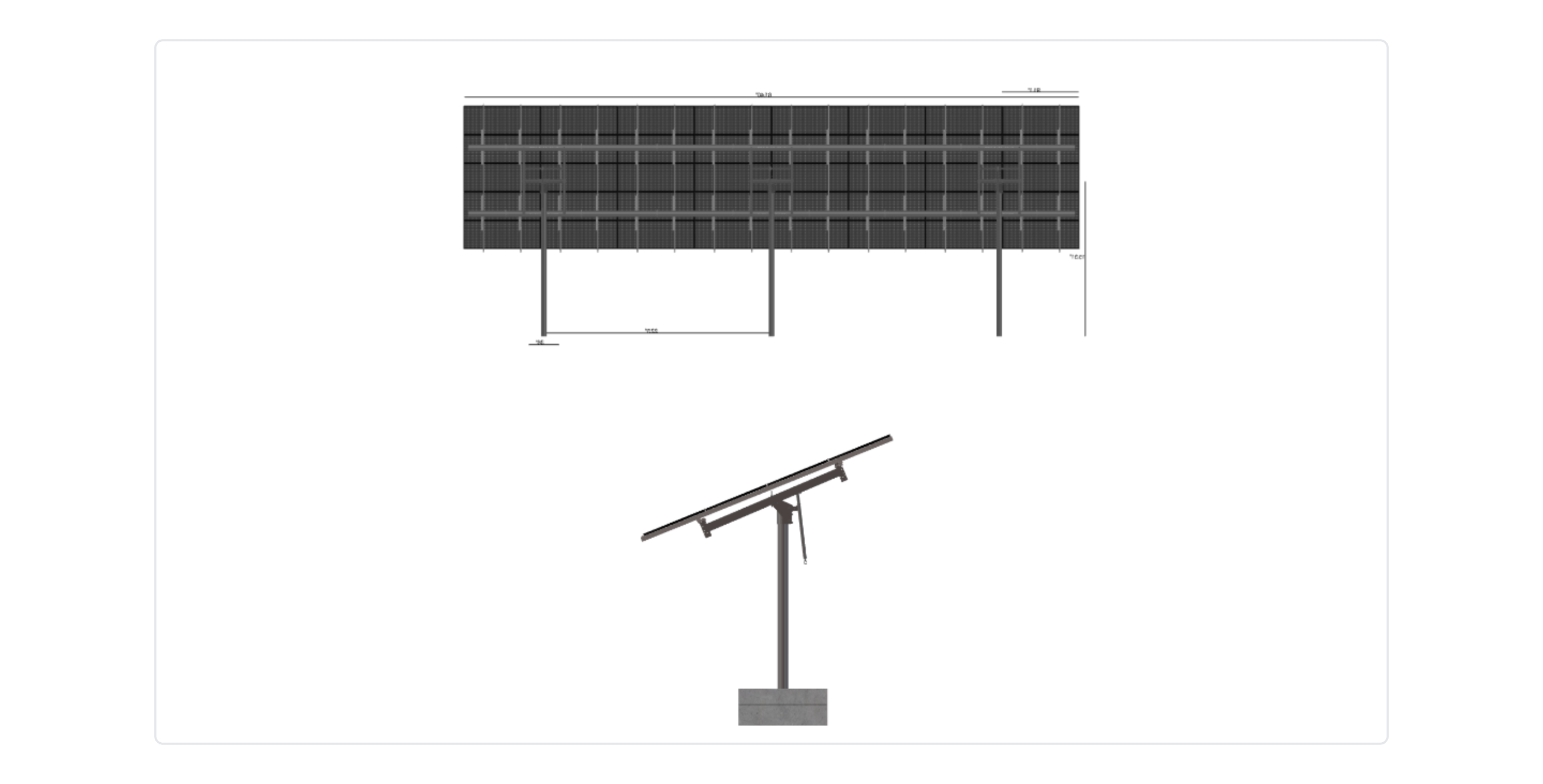

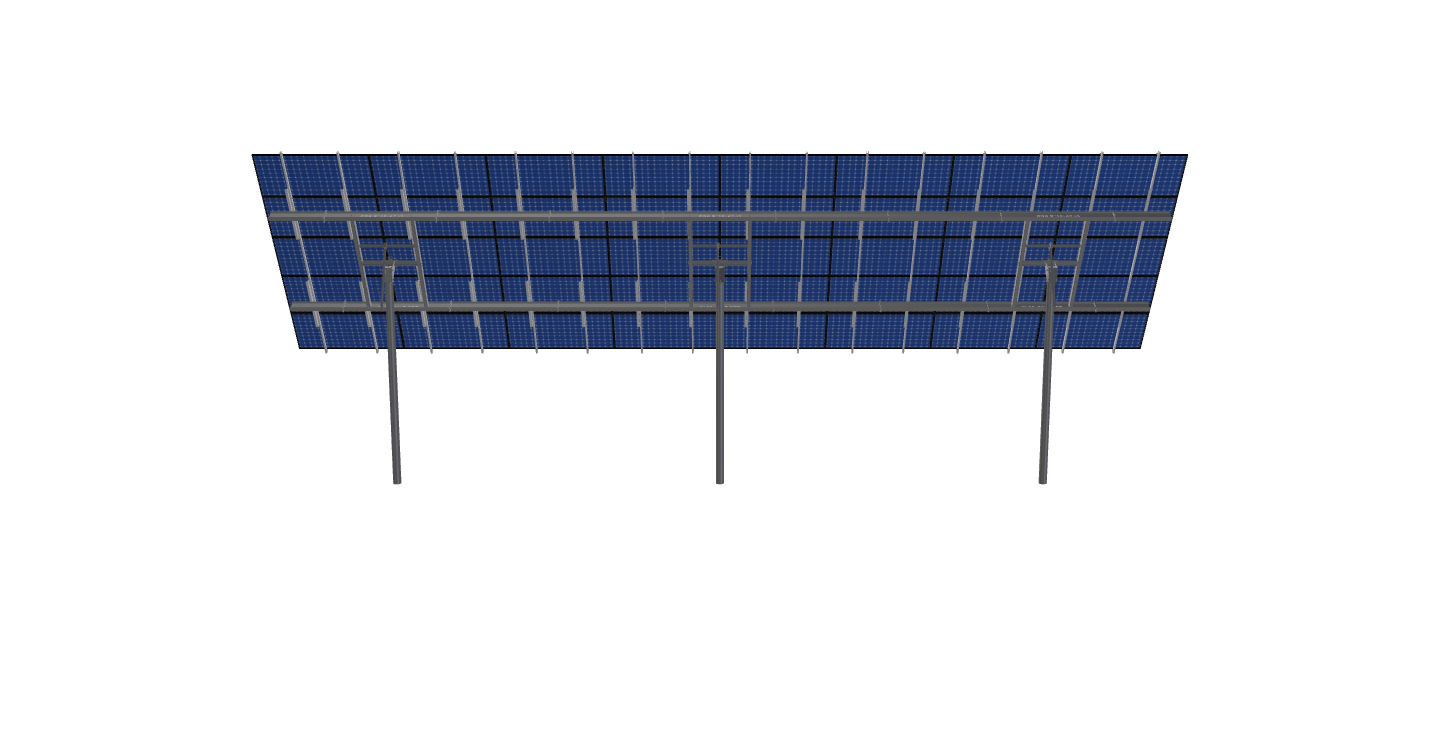

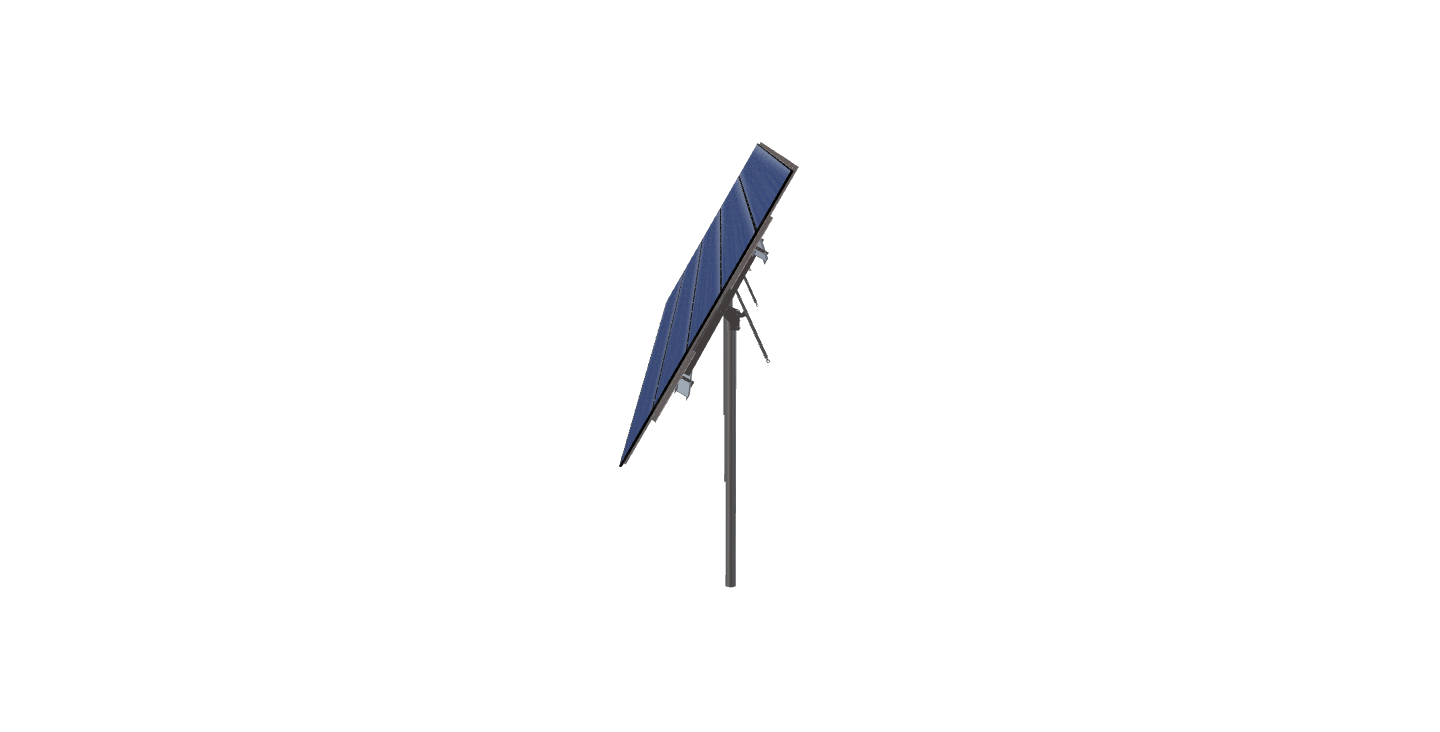

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91.1 inches by 40 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Grover-GM-JB-Rev5
$14,230.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91.1 inches by 40 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2830.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-SD-45-L-5HX8W-KI06 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 15.31 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 15.00 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1036.13 |
| ARRAY WIDTH | 61.40 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 91.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 22.52 |
| PROJECTED PANEL HEIGHT | 14.43 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | GROVER-GM-JB-REV5 |
| SITE ADDRESS | 270, AVALANCHE, GULCH, RD, TOWNSEND, MT, 59644, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 14230.89 |
| TOTAL WEIGHT | 2830.52 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/2f5a4702-d00d-4dd4-bae8-573f6b5da8ea.pdf |
|
| ID | 1980.00 |
| 3D Solar link |
