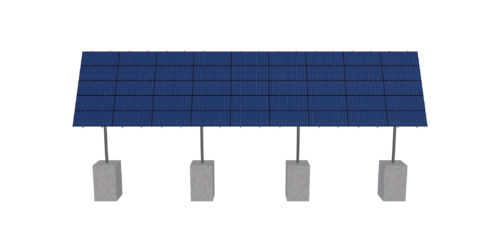

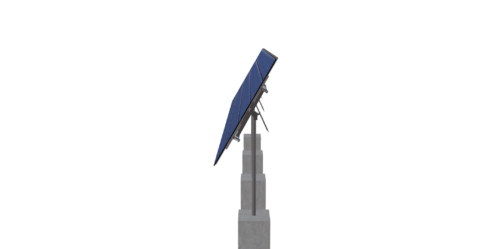

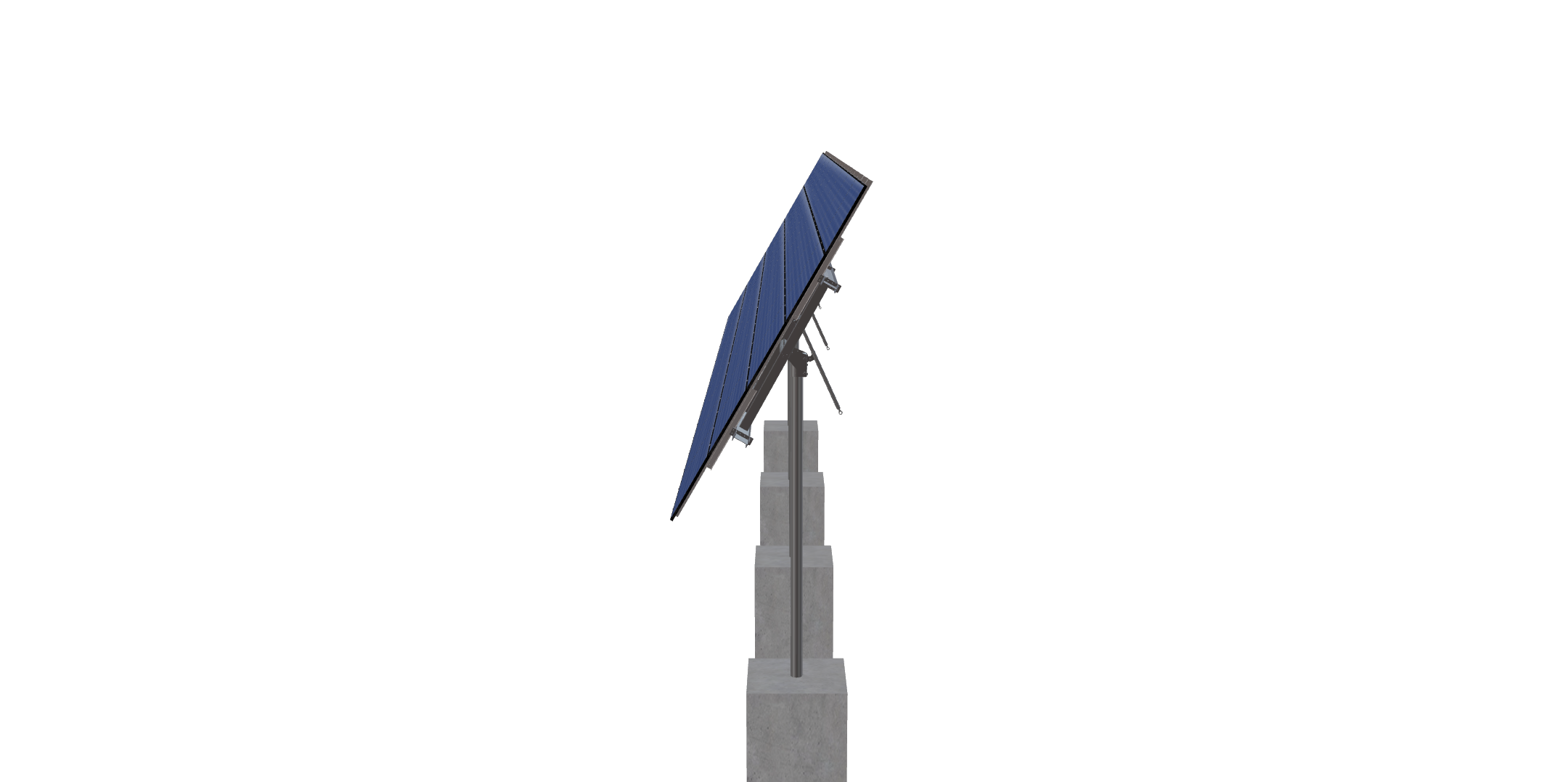

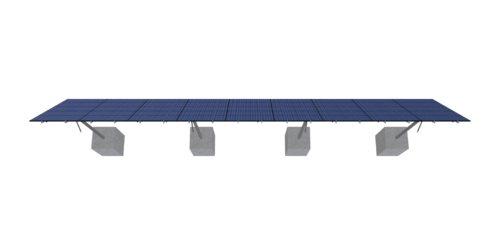

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91.1 inches by 40 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Grover-GM-JB-Rev7
$17,394.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91.1 inches by 40 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3410.46 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-SD-12-L-5HX9W-4BHH |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.31 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1165.64 |
| ARRAY WIDTH | 69.08 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 91.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 22.52 |
| PROJECTED PANEL HEIGHT | 14.43 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | GROVER-GM-JB-REV7 |
| SITE ADDRESS | 270, AVALANCHE, GULCH, RD, TOWNSEND, MT, 59644, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 17394.69 |
| TOTAL WEIGHT | 3410.46 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/c6928a15-cb58-49e8-b33e-3a4c8ac5ae5e.pdf |
|
| ID | 2194.00 |
| 3D Solar link |
