Hagen PV Project

$3,632.20

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.3 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

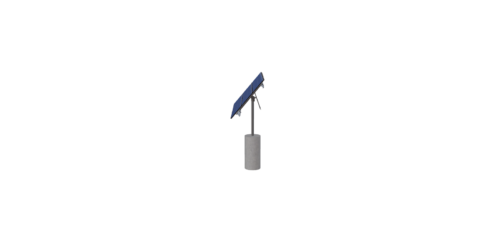

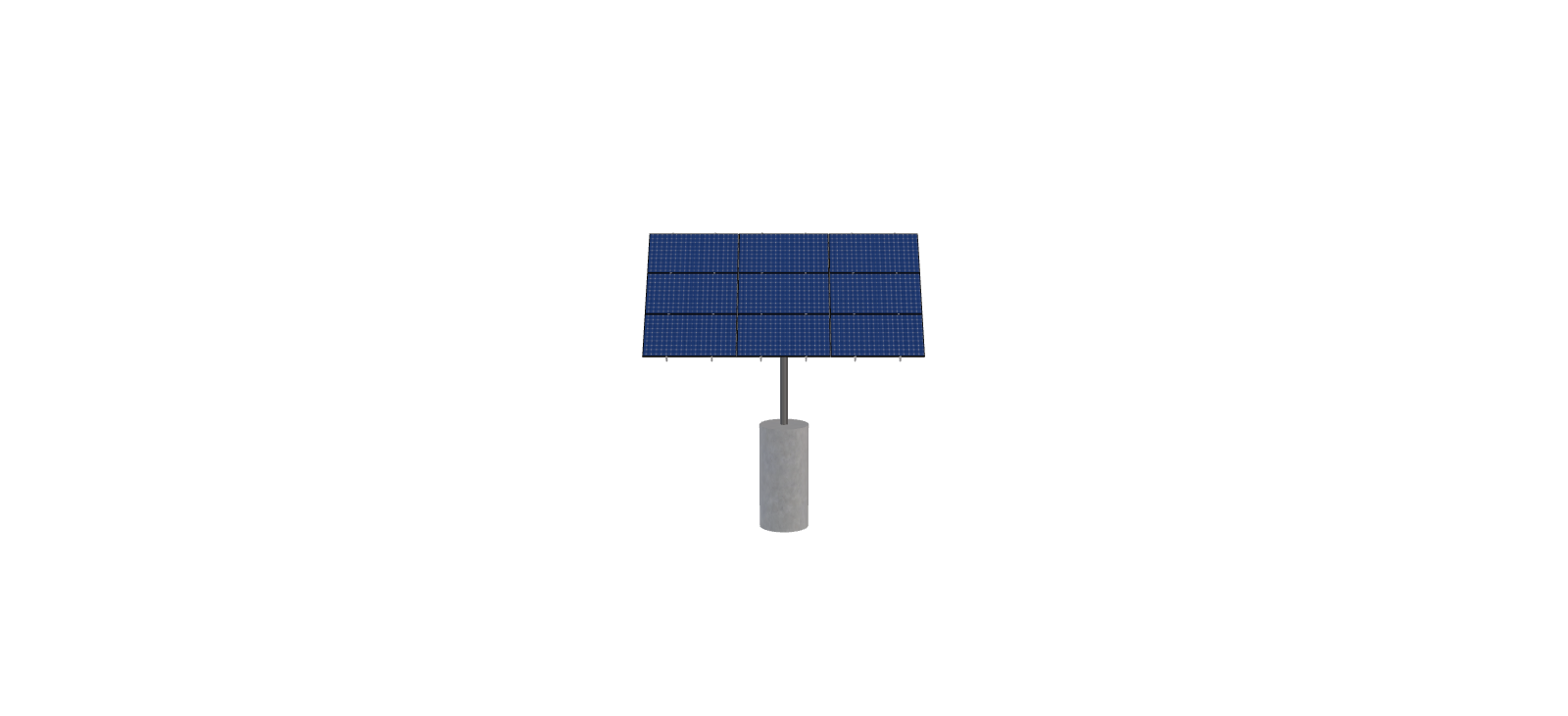

See 3D Model Here

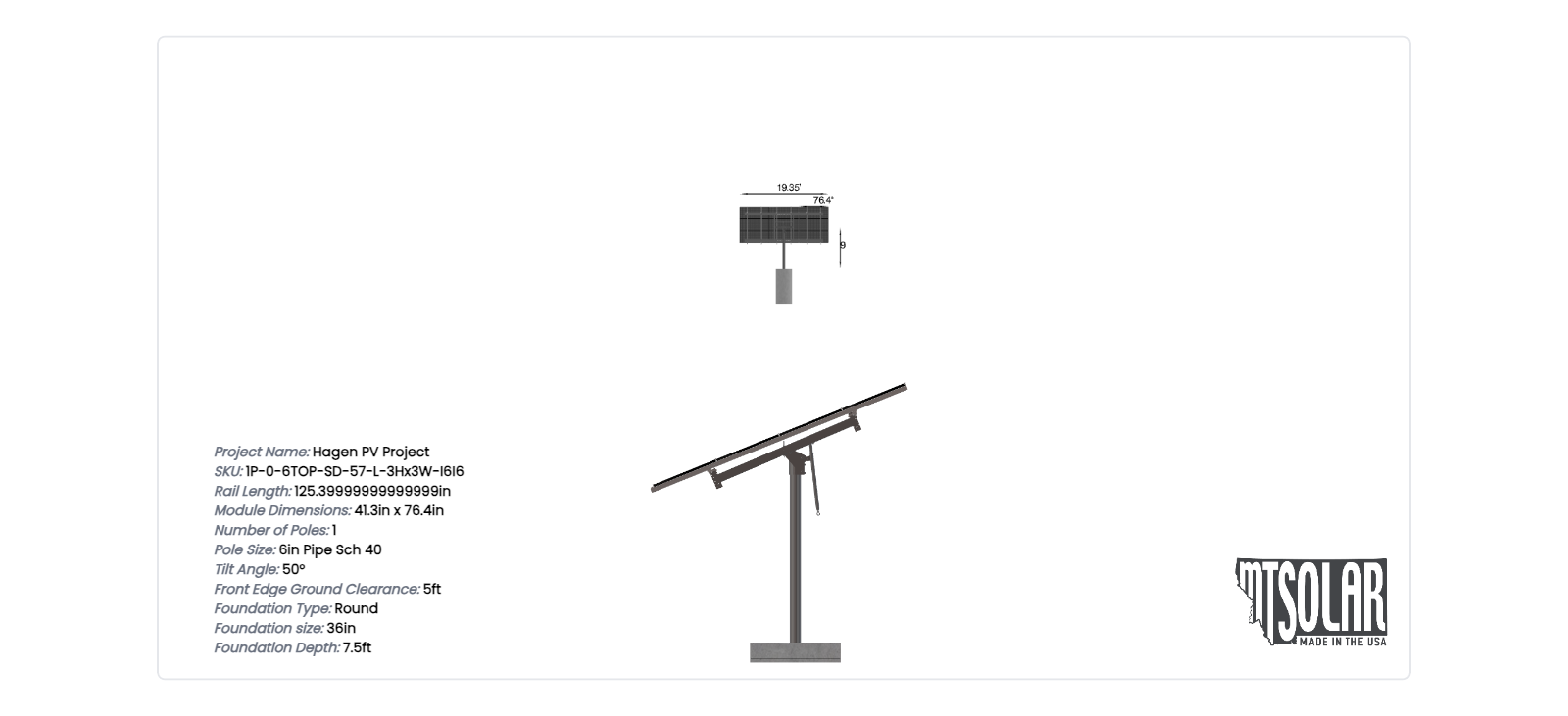

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-57-L-3Hx3W-I6I6 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.3 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 649.38 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-57-L-3HX3W-I6I6

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

9.00

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.50

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

202.21

ARRAY WIDTH

19.35

ARRAY HEIGHT

10.45

RAIL LENGTH

125.40

MODULE LENGTH

76.40

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

12.96

PROJECTED PANEL HEIGHT

7.91

PROJECT ID

HAGEN, PV, PROJECT

SITE ADDRESS

99, M, RD, SILVERTHORNE, CO, 80498, USA

MODULE WIDTH

41.30

NUMBER ROWS

3.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

90.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

3632.20

TOTAL WEIGHT

649.38

TOTAL PALLETS

1.00
