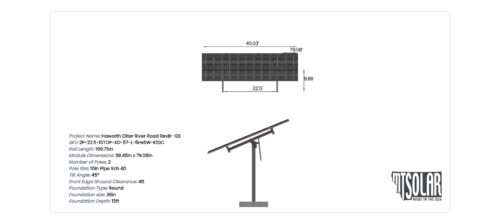

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.06 inches by 39.45 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

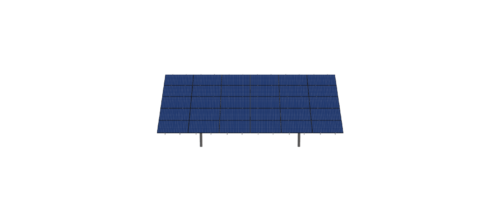

See 3D Model Here
Haworth Otter River Road RevB- GS
$12,141.52
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.06 inches by 39.45 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2463.3399999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-XD-57-L-5HX6W-K1DC |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.89 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 15.00 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 666.33 |
| ARRAY WIDTH | 40.03 |
| ARRAY HEIGHT | 16.65 |
| RAIL LENGTH | 199.75 |
| MODULE LENGTH | 79.06 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 15.70 |
| PROJECTED PANEL HEIGHT | 11.62 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | HAWORTH, OTTER, RIVER, ROAD, REVB-, GS |
| SITE ADDRESS | 5054, OTTER, RIVER, RD, DULUTH, MN, 55803, USA |
| MODULE WIDTH | 39.45 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 12141.52 |
| TOTAL WEIGHT | 2463.34 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/d8ff9e05-d736-4119-b0f0-59b510707a54.pdf |
|
| ID | 2078.00 |
| 3D Solar link |
