This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.3 inches by 40.8 inches and an array layout of 6 wide by 4 high.

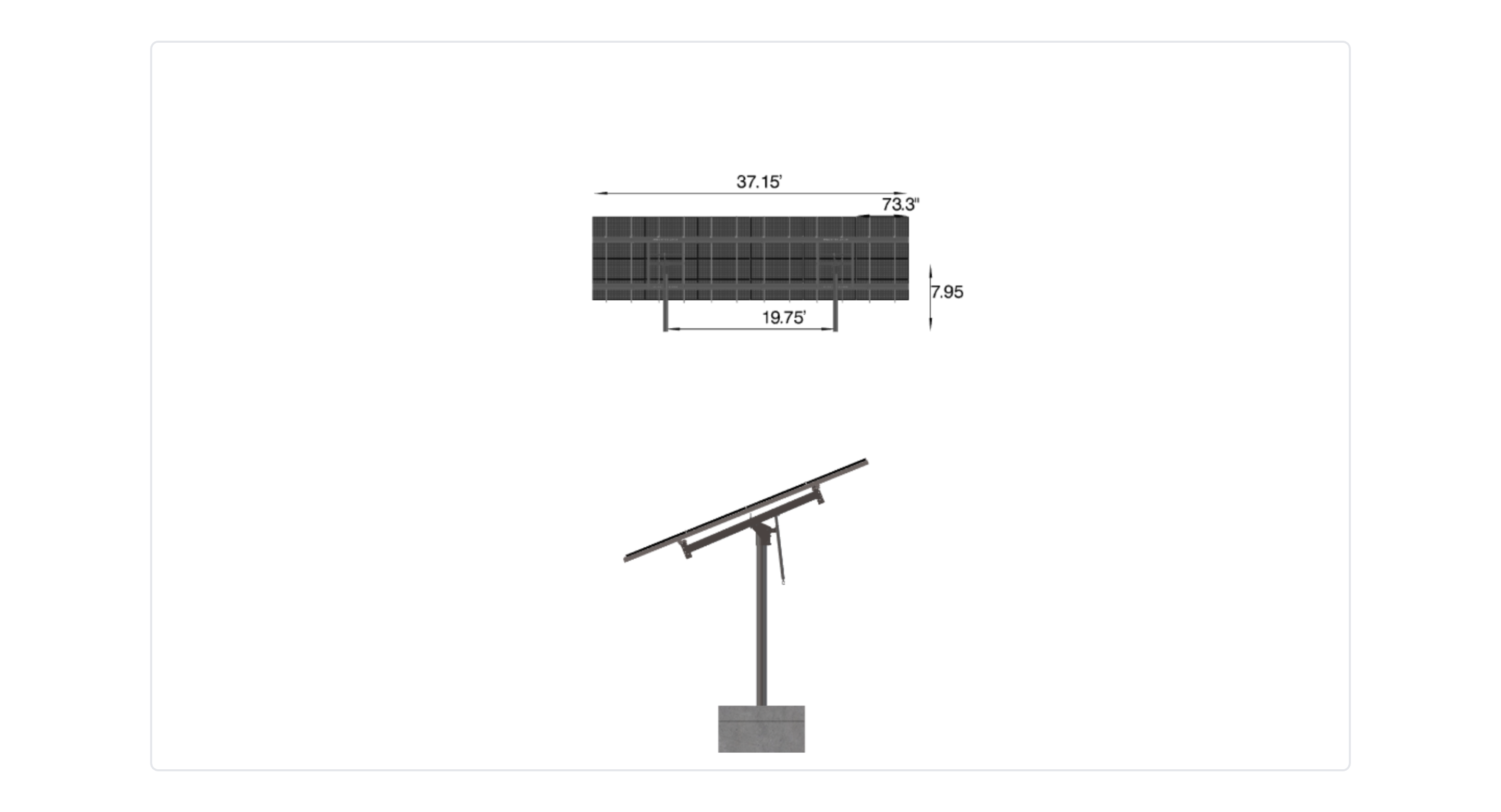

This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

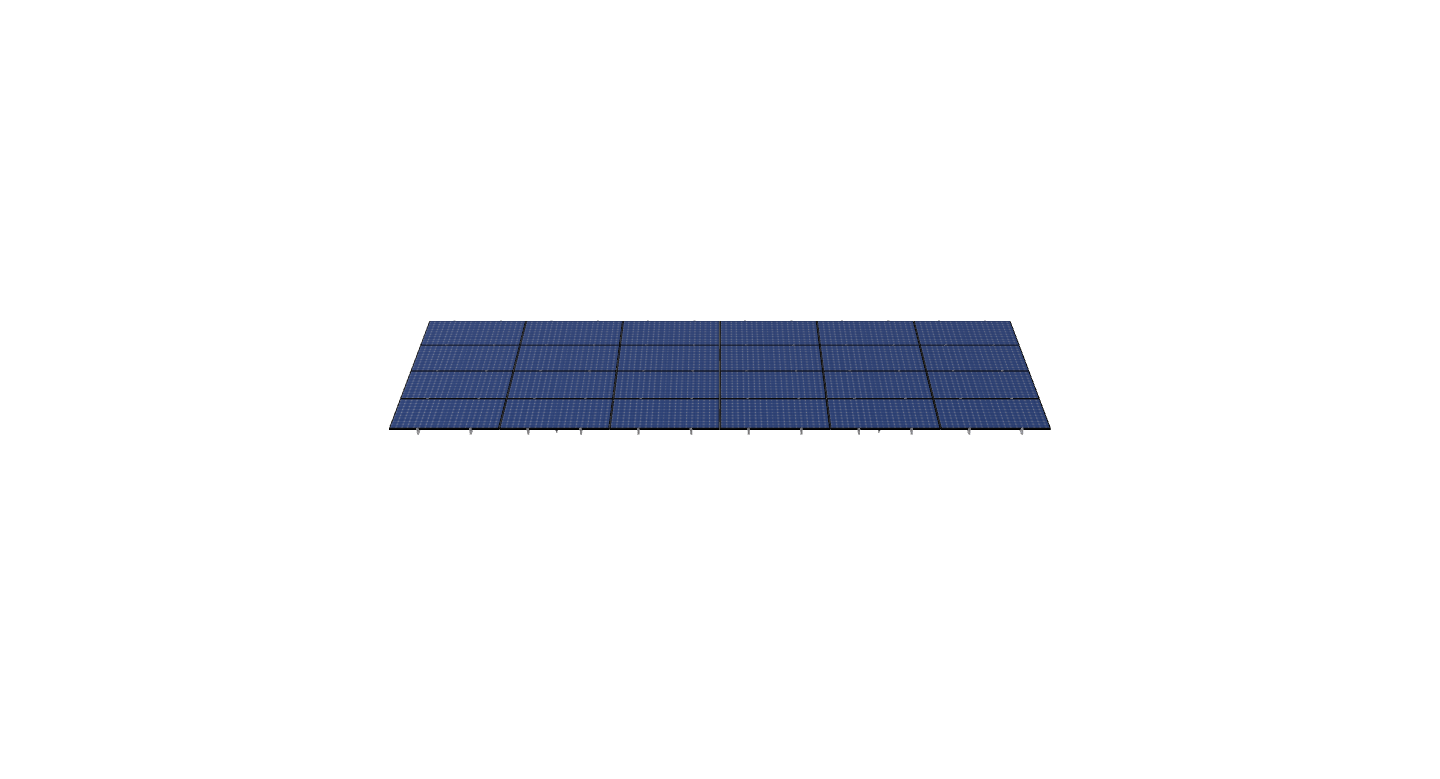

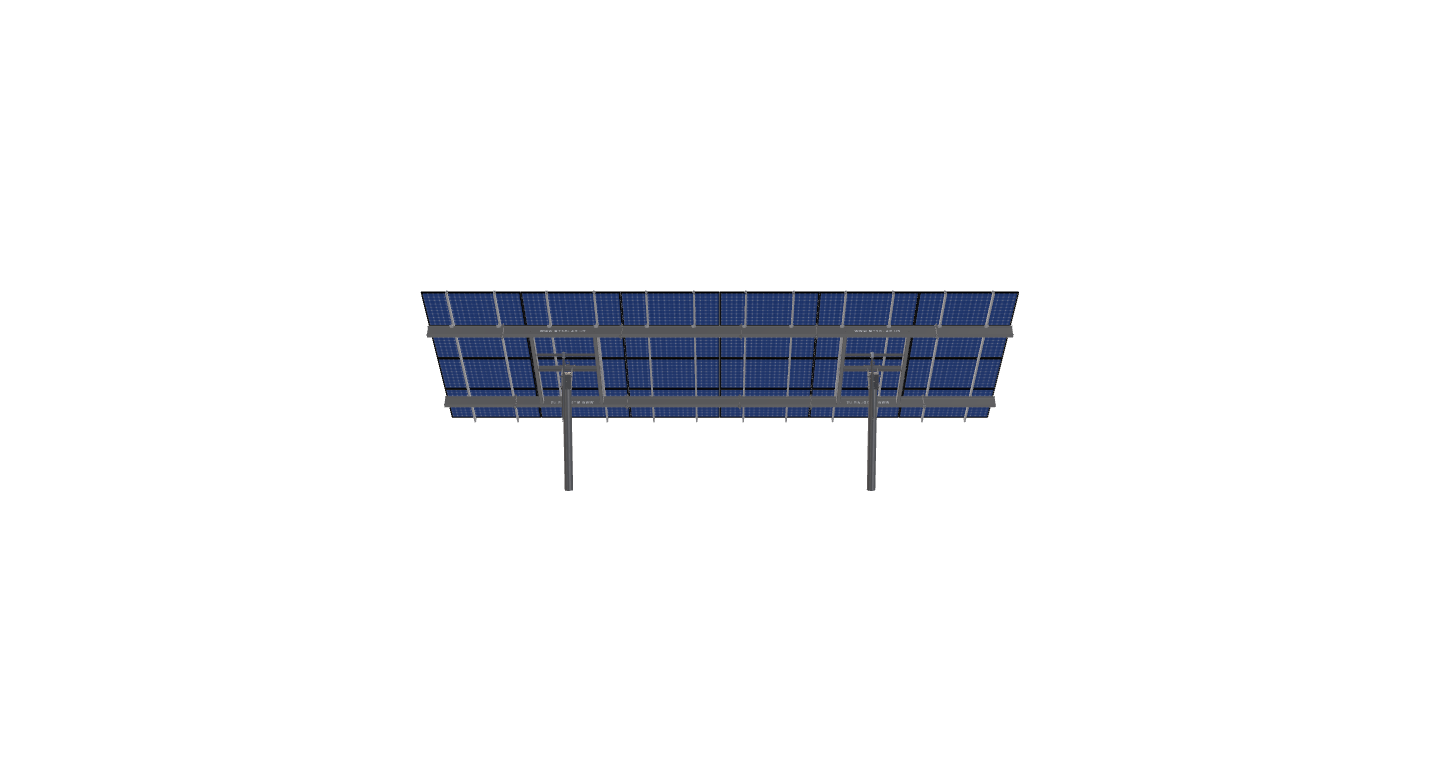

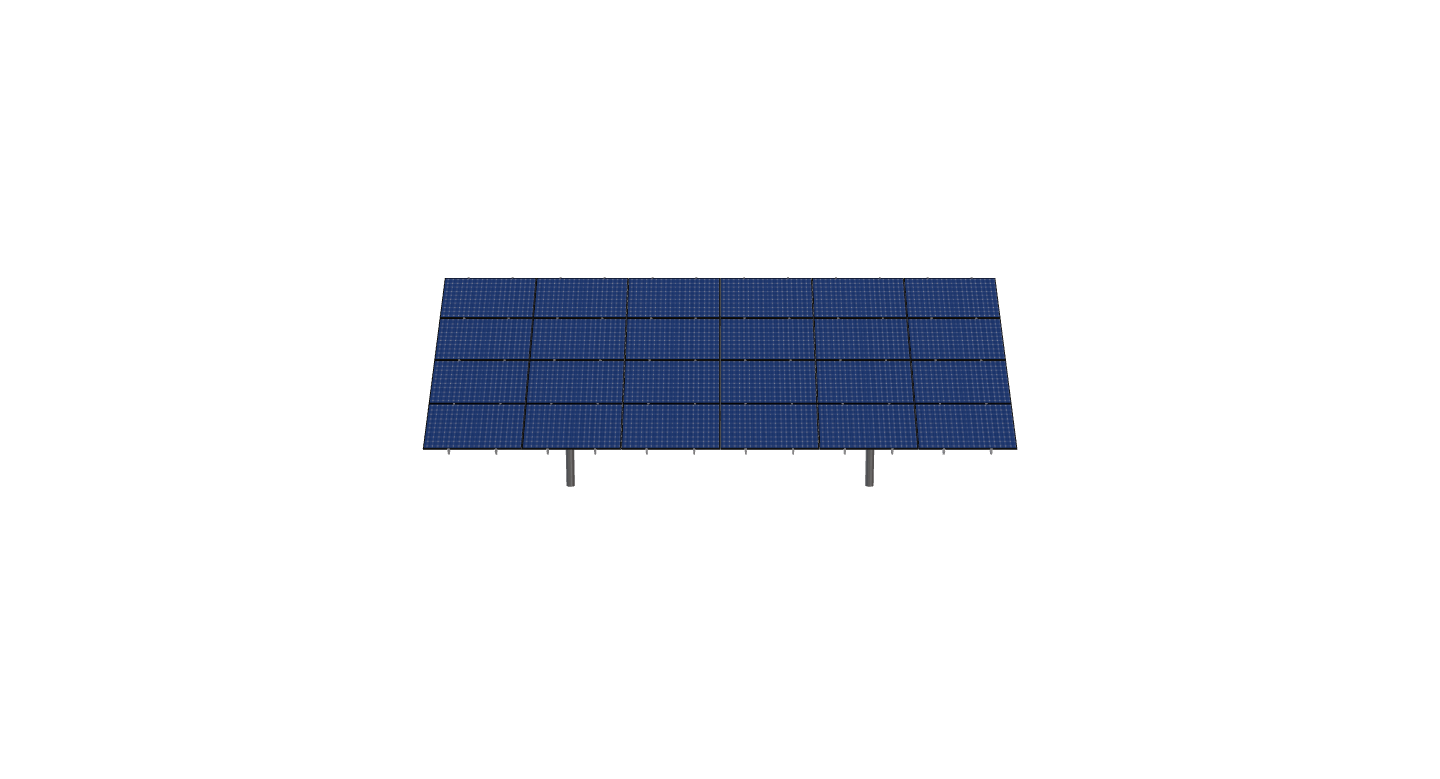

See 3D Model Here
Henderson PM Half System – Round – RevA – JB
$9,522.08
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.3 inches by 40.8 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1752.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-HD-57-L-4HX6W-120K |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 7.95 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 511.43 |
| ARRAY WIDTH | 37.15 |
| ARRAY HEIGHT | 13.77 |
| RAIL LENGTH | 165.20 |
| MODULE LENGTH | 73.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 12.84 |
| PROJECTED PANEL HEIGHT | 9.78 |
| PROJECT ID | HENDERSON, PM, HALF, SYSTEM, -, ROUND, -, REVA, -, JB |
| SITE ADDRESS | 379, W, VIEW, STEVENSVILLE, MT, 59870, USA |
| MODULE WIDTH | 40.80 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 9522.08 |
| TOTAL WEIGHT | 1752.52 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/c371fa67-a9df-4bd1-9fdc-07d5fed121a1.pdf |
|
| ID | 5677.00 |
| 3D Solar link |
