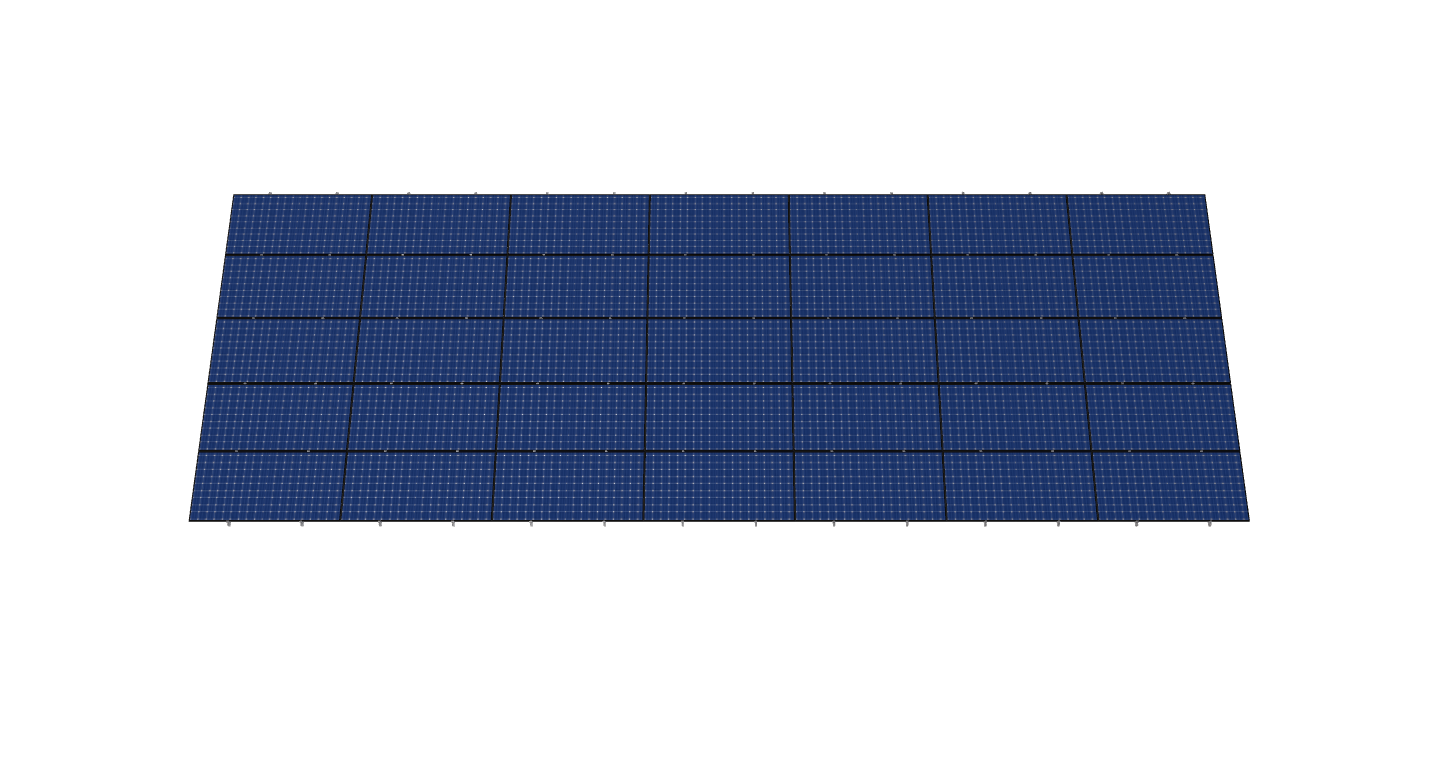

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 94.488188976 inches by 47.244094488 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Horsham Hotel-19spacing-JB
$17,219.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 94.488188976 inches by 47.244094488 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3304.93 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-XD-45-L-5HX7W-JEK3 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.21 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 7.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1108.09 |
| ARRAY WIDTH | 55.70 |
| ARRAY HEIGHT | 19.89 |
| RAIL LENGTH | 238.72 |
| MODULE LENGTH | 94.49 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 16.41 |
| PROJECTED PANEL HEIGHT | 2.40 |
| PROJECT ID | HORSHAM, HOTEL-19'SPACING-JB |
| SITE ADDRESS | 720, BLAIR, MILL, RD, HORSHAM, PA, 19044, USA |
| MODULE WIDTH | 47.24 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| POLE SPACING OVERRIDE | 19.75 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 29.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 16399.26 |
| TOTAL WEIGHT | 3304.93 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/db7c77d4-fdc0-4f7f-8af9-4ff4d46e0d0a.pdf |
|
| ID | 4929.00 |
| 3D Solar link |
