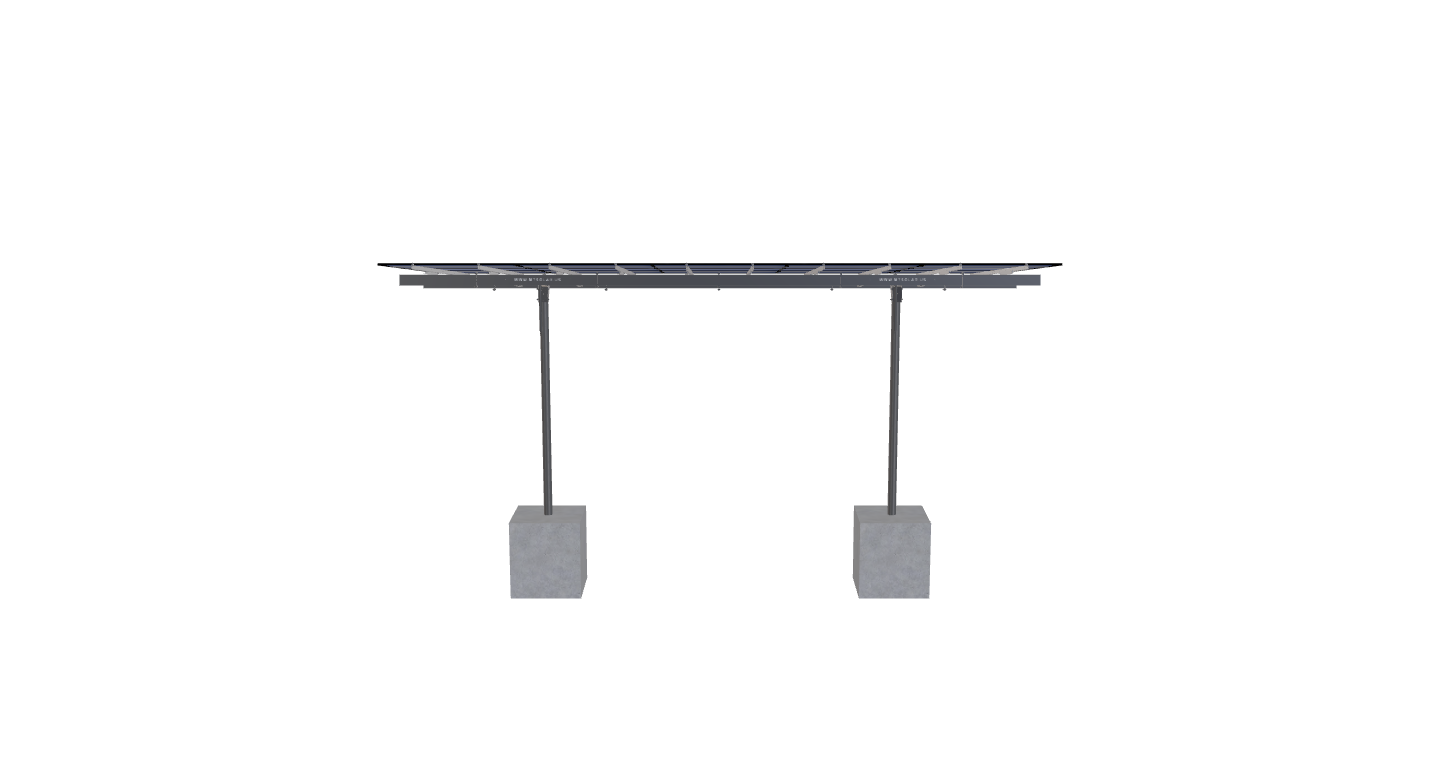

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 94.488188976 inches by 47.244094488 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Horsham Hotel-25 mods-22spacing-JB
$11,914.91
Description

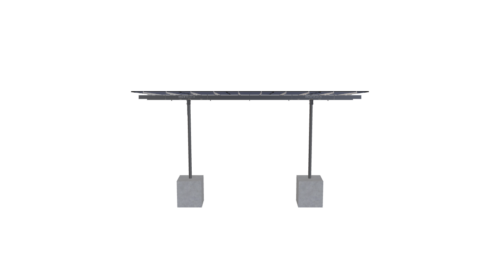

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 94.488188976 inches by 47.244094488 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2301.8999999999996 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-XD-57-L-5HX5W-4751 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 15.21 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 7.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 2.00 |
| MODULE AREA | 791.49 |
| ARRAY WIDTH | 39.79 |
| ARRAY HEIGHT | 19.89 |
| RAIL LENGTH | 238.72 |
| MODULE LENGTH | 94.49 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 16.41 |
| PROJECTED PANEL HEIGHT | 2.40 |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 29.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | HORSHAM, HOTEL-25, MODS-22SPACING-JB |
| SITE ADDRESS | 720, BLAIR, MILL, RD, HORSHAM, PA, 19044, USA |
| MODULE WIDTH | 47.24 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| POLE SPACING OVERRIDE | 19.75 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 11347.53 |
| TOTAL WEIGHT | 2301.90 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/23f4f628-6696-4e08-983a-7807bad5938c.pdf |
|
| ID | 4931.00 |
| 3D Solar link |
