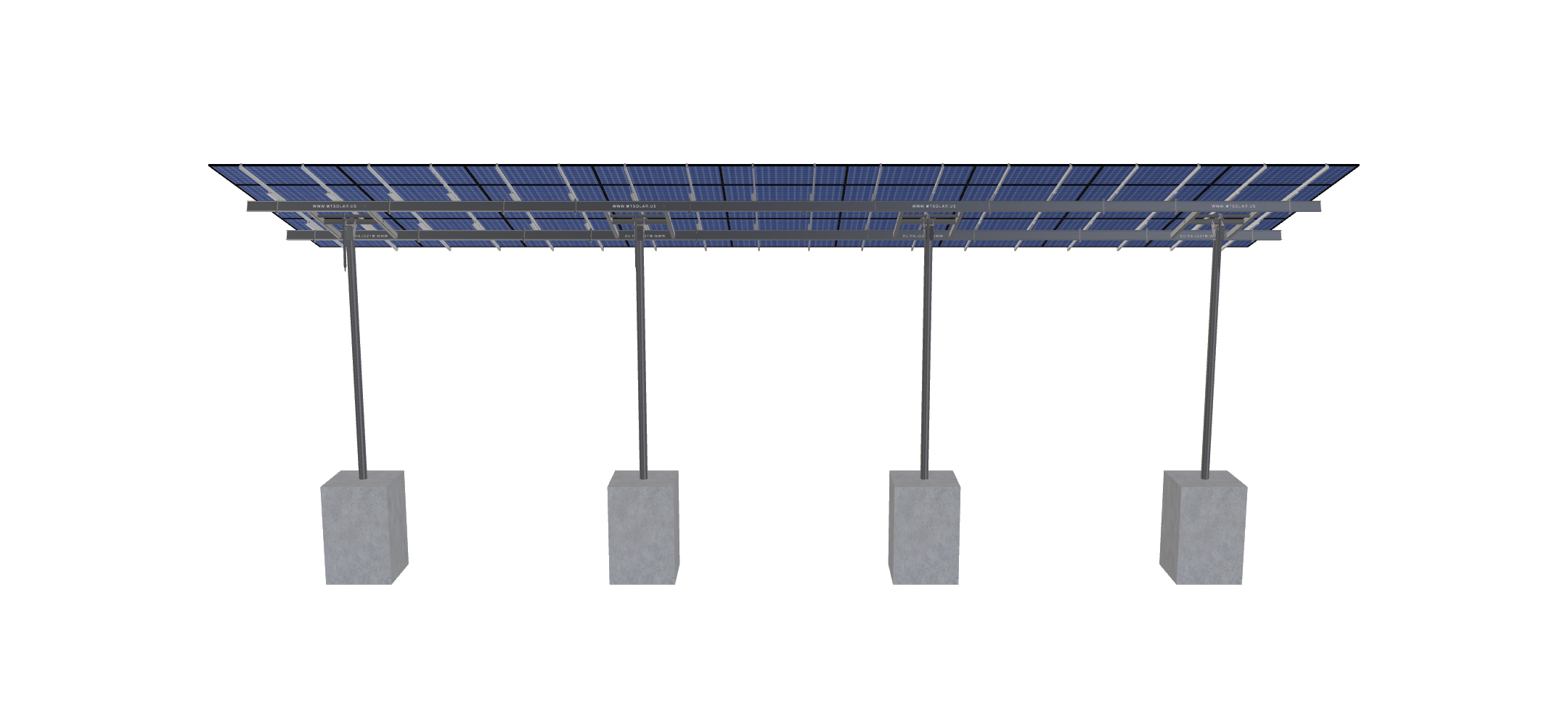

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 51.3 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
HorshamPAHotelArea1-JB-RevA
$21,860.54
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 51.3 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4397.96 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-XD-24-L-5HX9W-2A3D |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 18.01 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 19.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 14.50 |
| NO POLES | 4.00 |
| MODULE AREA | 1535.55 |
| ARRAY WIDTH | 71.14 |
| ARRAY HEIGHT | 21.58 |
| RAIL LENGTH | 259.00 |
| MODULE LENGTH | 93.86 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 21.49 |
| PROJECTED PANEL HEIGHT | 6.96 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | HORSHAMPAHOTELAREA1-JB-REVA |
| SITE ADDRESS | 720, BLAIR, MILL, RD, HORSHAM, PA, 19044, USA |
| MODULE WIDTH | 51.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 21860.54 |
| TOTAL WEIGHT | 4397.96 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/d86af291-5b99-4d8d-b785-f44094f78b07.pdf |
|
| ID | 2267.00 |
| 3D Solar link |
