Hudson Mews – 5×13 -V1Jb

$25,583.78

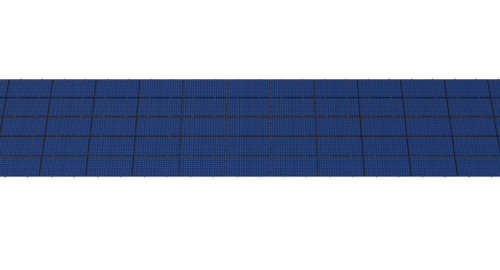

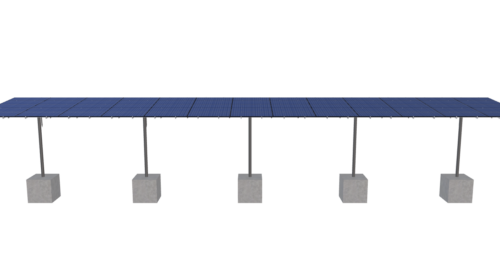

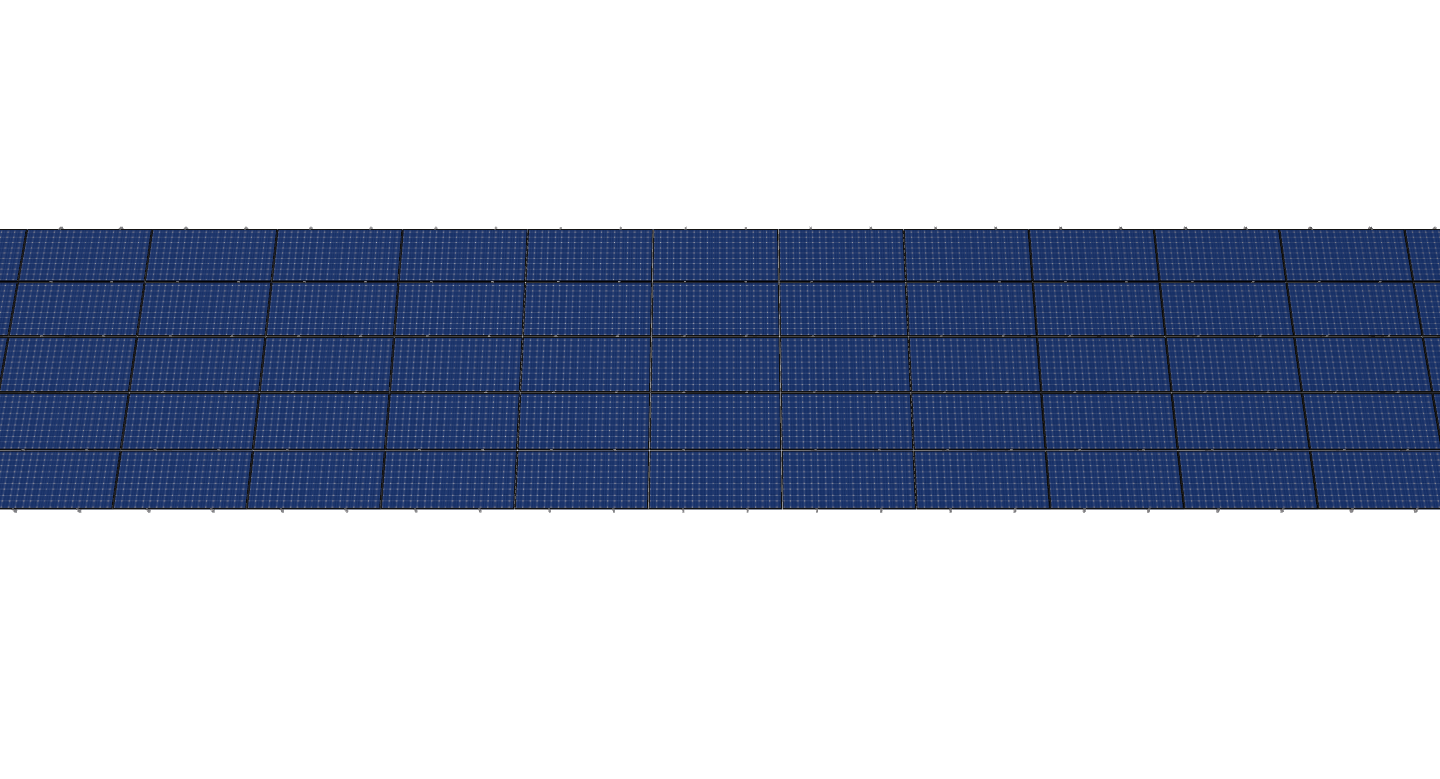

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 13 wide by 5 high.

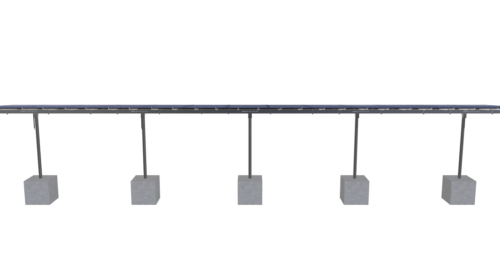

This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 5P-19.75-6TOP-HD-45-L-5Hx13W-8I12 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 5152.39 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

5P-19.75-6TOP-HD-45-L-5HX13W-8I12

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

5.00

POLE SPACING

19.75

POLE HEIGHT

12.76

WING SPAN

45.00

MAX FOUNDATION DEPTH

4.50

TILT ANGLE

5.00

CANTILEVER

1128.00

GROUND CLEARANCE

12.00

NO POLES

5.00

MODULE AREA

1656.20

ARRAY WIDTH

95.55

ARRAY HEIGHT

17.33

RAIL LENGTH

208.00

MODULE LENGTH

87.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

94.00

GROUND TO TOP

13.50

PROJECTED PANEL HEIGHT

1.49

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

HUDSON, MEWS, -, 5X13, -V1JB

SITE ADDRESS

595, W, 239TH, ST, BRONX, NY, 10463, USA

MODULE WIDTH

41.10

NUMBER ROWS

5.00

NUMBER COLUMNS

13.00

POLE SPACING OVERRIDE

19.75

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

25583.78

TOTAL WEIGHT

5152.39

TOTAL PALLETS

5.00
