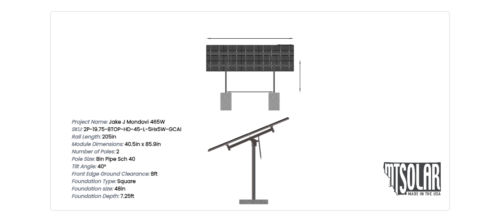

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.9 inches by 40.5 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Jake J Mondovi 465W
$9,973.23
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.9 inches by 40.5 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1996.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-HD-45-L-5HX5W-GCAI |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.49 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 618.56 |
| ARRAY WIDTH | 36.21 |
| ARRAY HEIGHT | 17.08 |
| RAIL LENGTH | 205.00 |
| MODULE LENGTH | 85.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 18.91 |
| PROJECTED PANEL HEIGHT | 10.85 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | JAKE, J, MONDOVI, 465W |
| SITE ADDRESS | 153, N, FRANKLIN, ST, MONDOVI, WI, 54755, USA |
| MODULE WIDTH | 40.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9973.23 |
| TOTAL WEIGHT | 1996.40 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/e1d492b9-1c54-41e8-9faa-d1eab979dae6.pdf |
|
| ID | 2286.00 |
| 3D Solar link |
