This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 41 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

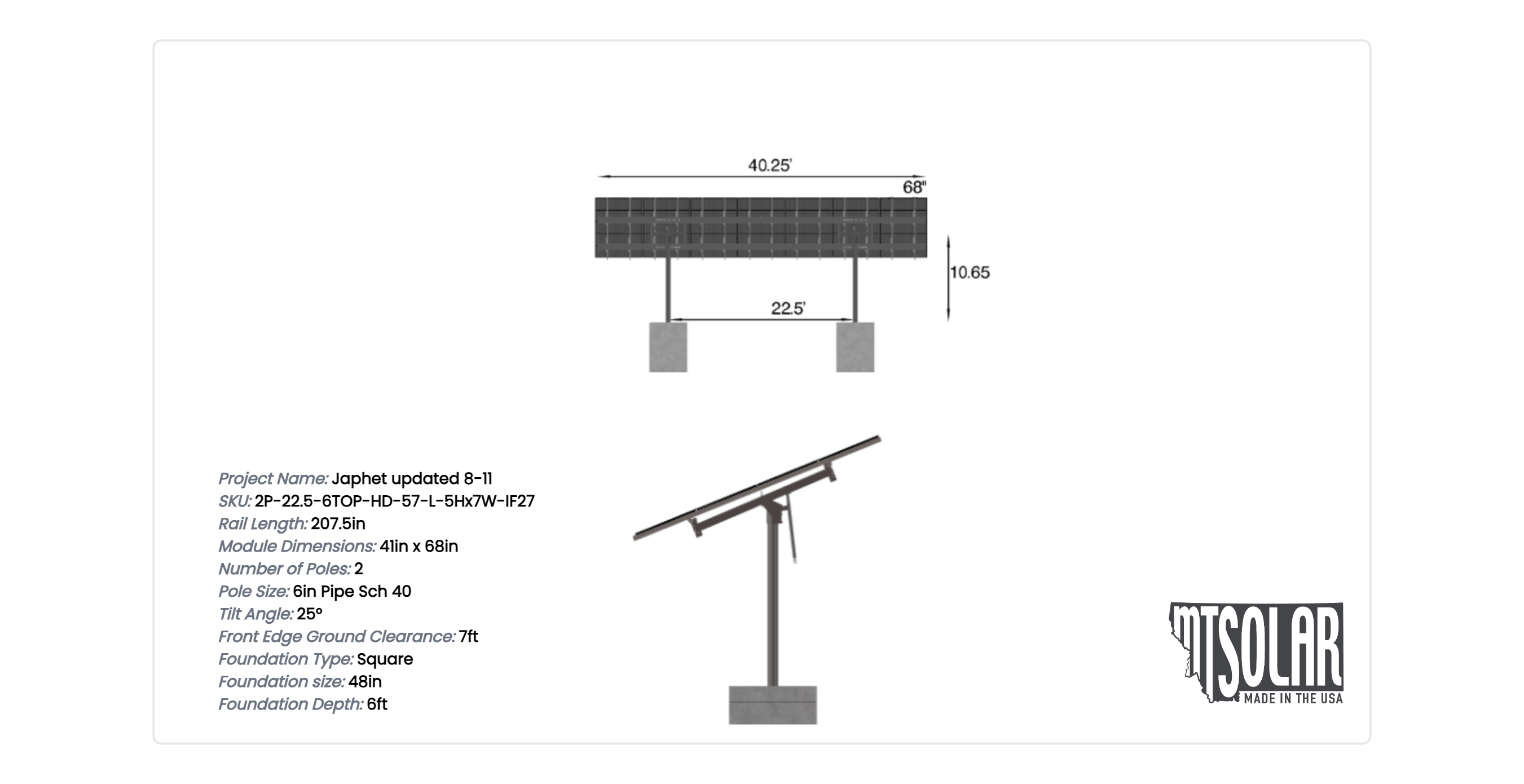

See 3D Model Here
Japhet updated 8-11
$11,183.19
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 41 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 2264.26 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-6TOP-HD-57-L-5HX7W-IF27 |
DUTY SIZE | HD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 10.65 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 6.00 |
TILT ANGLE | 25.00 |
CANTILEVER | 474.00 |
GROUND CLEARANCE | 7.00 |
NO POLES | 2.00 |
MODULE AREA | 695.99 |
ARRAY WIDTH | 40.25 |
ARRAY HEIGHT | 17.29 |
RAIL LENGTH | 207.50 |
MODULE LENGTH | 68.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 39.50 |
GROUND TO TOP | 14.26 |
PROJECTED PANEL HEIGHT | 7.22 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | JAPHET, UPDATED, 8-11 |
SITE ADDRESS | 229, CREST, TRAIL, SAN, ANTONIO, TX, 78232, USA |
MODULE WIDTH | 41.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 7.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 11183.19 |
TOTAL WEIGHT | 2264.26 |
TOTAL PALLETS | 2.00 |
