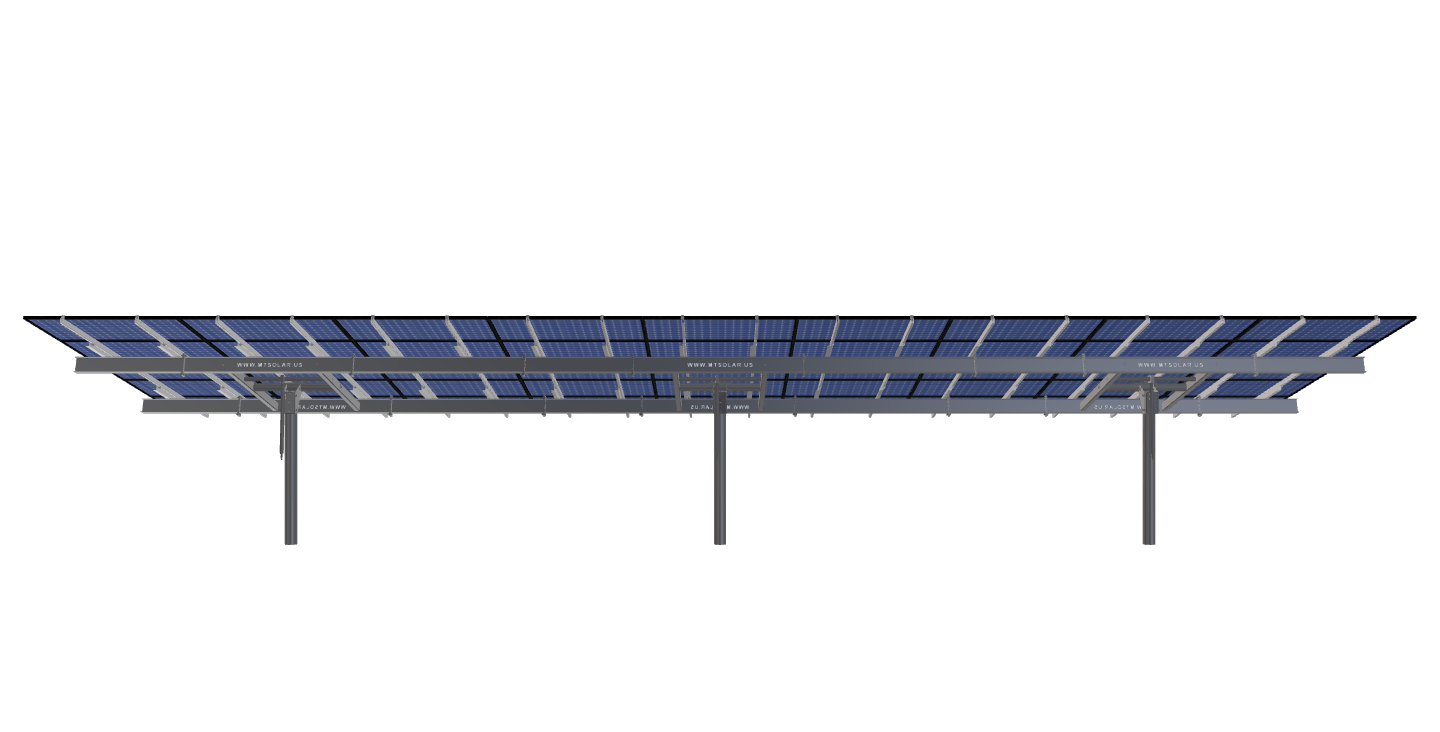

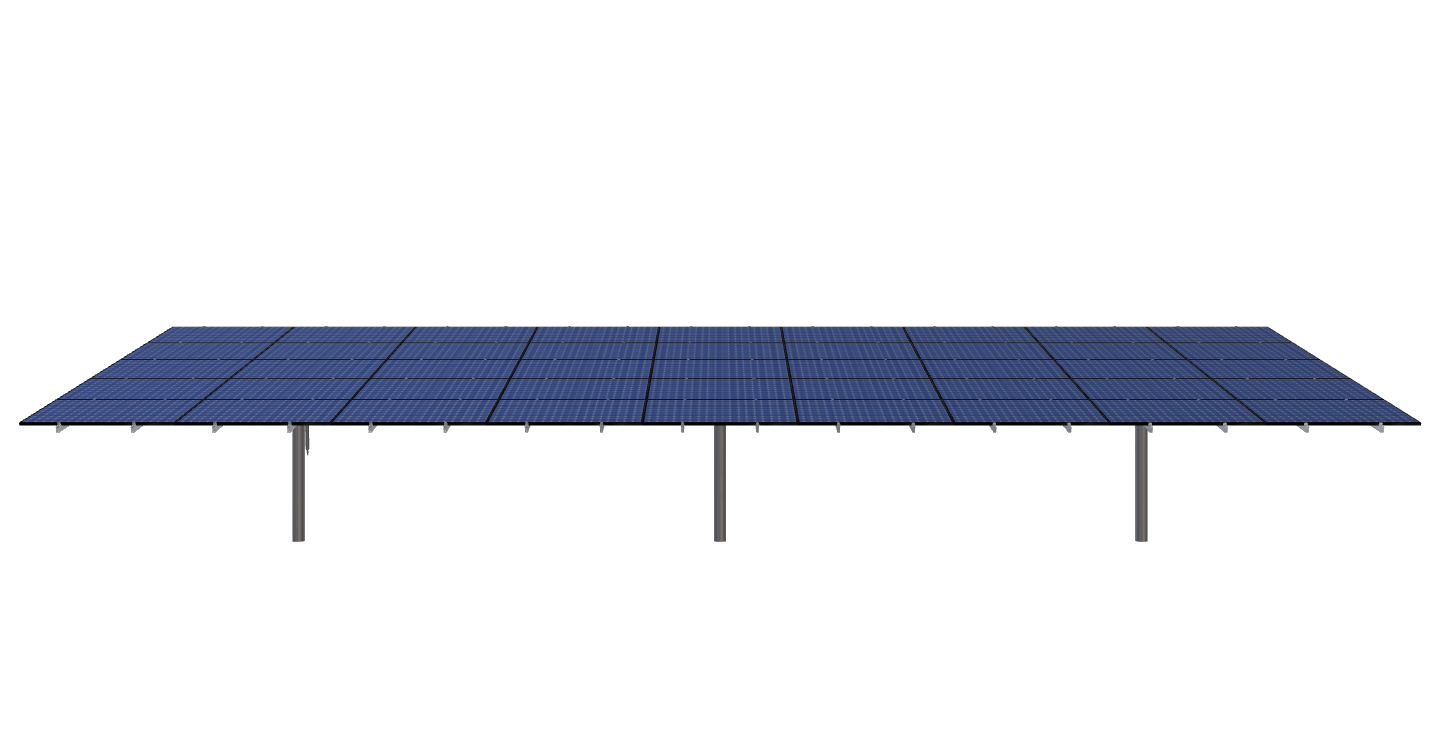

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.75 inches by 40.86 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
JasonOvercashResidence-RevA
$16,683.91
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.75 inches by 40.86 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3203.65 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-HD-57-L-5HX9W-H6I9 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 7.23 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 991.99 |
| ARRAY WIDTH | 57.56 |
| ARRAY HEIGHT | 17.23 |
| RAIL LENGTH | 206.80 |
| MODULE LENGTH | 75.75 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 9.43 |
| PROJECTED PANEL HEIGHT | 4.41 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | JASONOVERCASHRESIDENCE-REVA |
| SITE ADDRESS | 2125, MORRISON, RD, UTICA, MS, 39175, USA |
| MODULE WIDTH | 40.86 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 15889.44 |
| TOTAL WEIGHT | 3203.65 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/531ac0e5-f2bf-459a-89fb-fc15df73818e.pdf |
|
| ID | 1762.00 |
| CAD URL | |
| 3D Solar link |
