This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.5 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

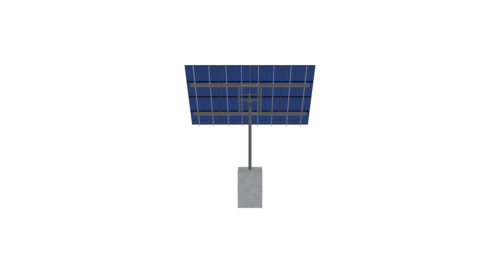

See 3D Model Here
JKarkos-RevA-JB
$5,875.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.5 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

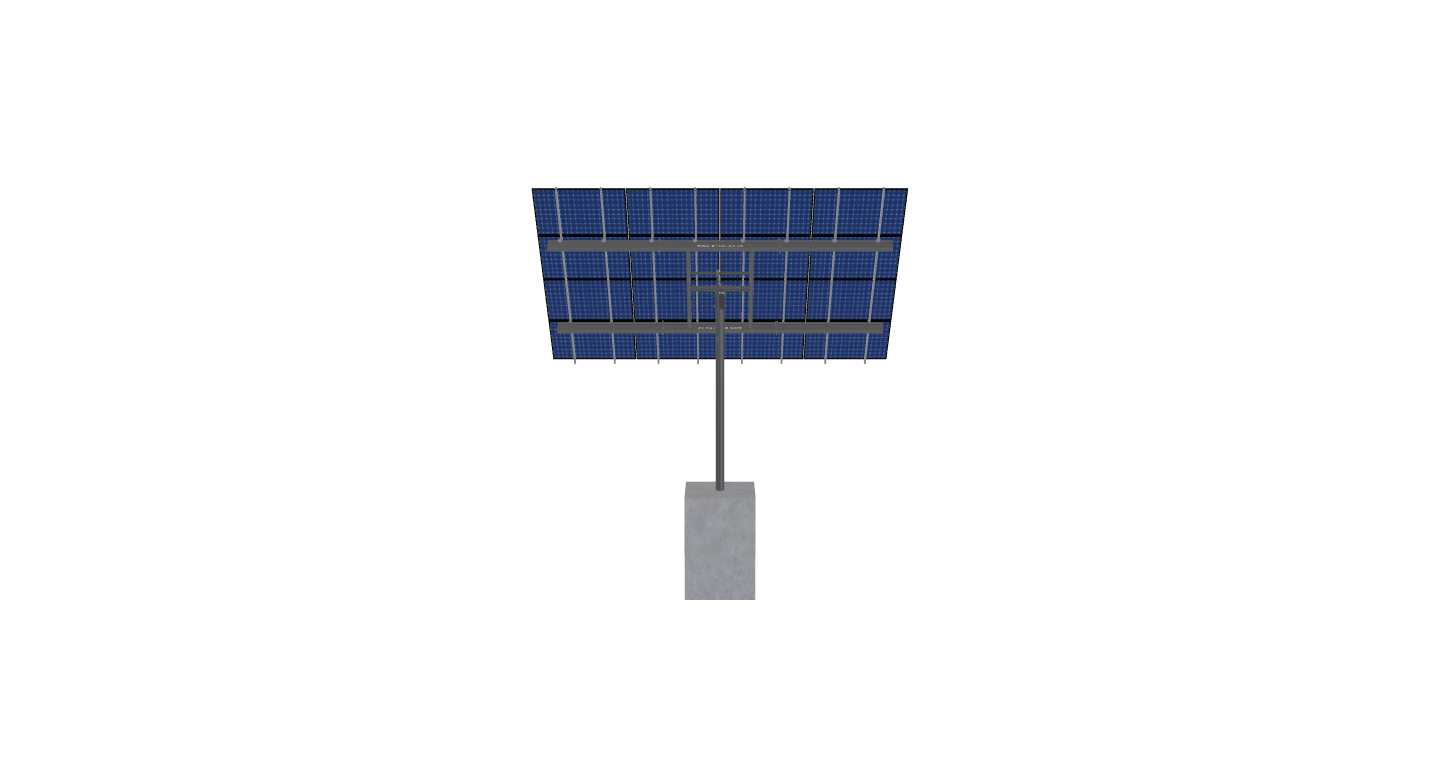

See 3D Model Here
Additional information
| Weight | 1091.33 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-XD-84-L-4HX4W-STRUTS-EEAB |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 13.13 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 1.00 |
| MODULE AREA | 368.00 |
| ARRAY WIDTH | 23.00 |
| ARRAY HEIGHT | 16.00 |
| RAIL LENGTH | 192.00 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 19.19 |
| PROJECTED PANEL HEIGHT | 12.13 |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 104.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| PROJECT ID | JKARKOS-REVA-JB |
| SITE ADDRESS | 152, JOHNSON, RD, NEW, VINEYARD, ME, 04956, USA |
| MODULE WIDTH | 47.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5875.56 |
| TOTAL WEIGHT | 1091.33 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/2102d7fe-fbff-4173-94cb-9482ee037465.pdf |
|
| ID | 4891.00 |
| 3D Solar link |
