Jurmu

$7,428.21

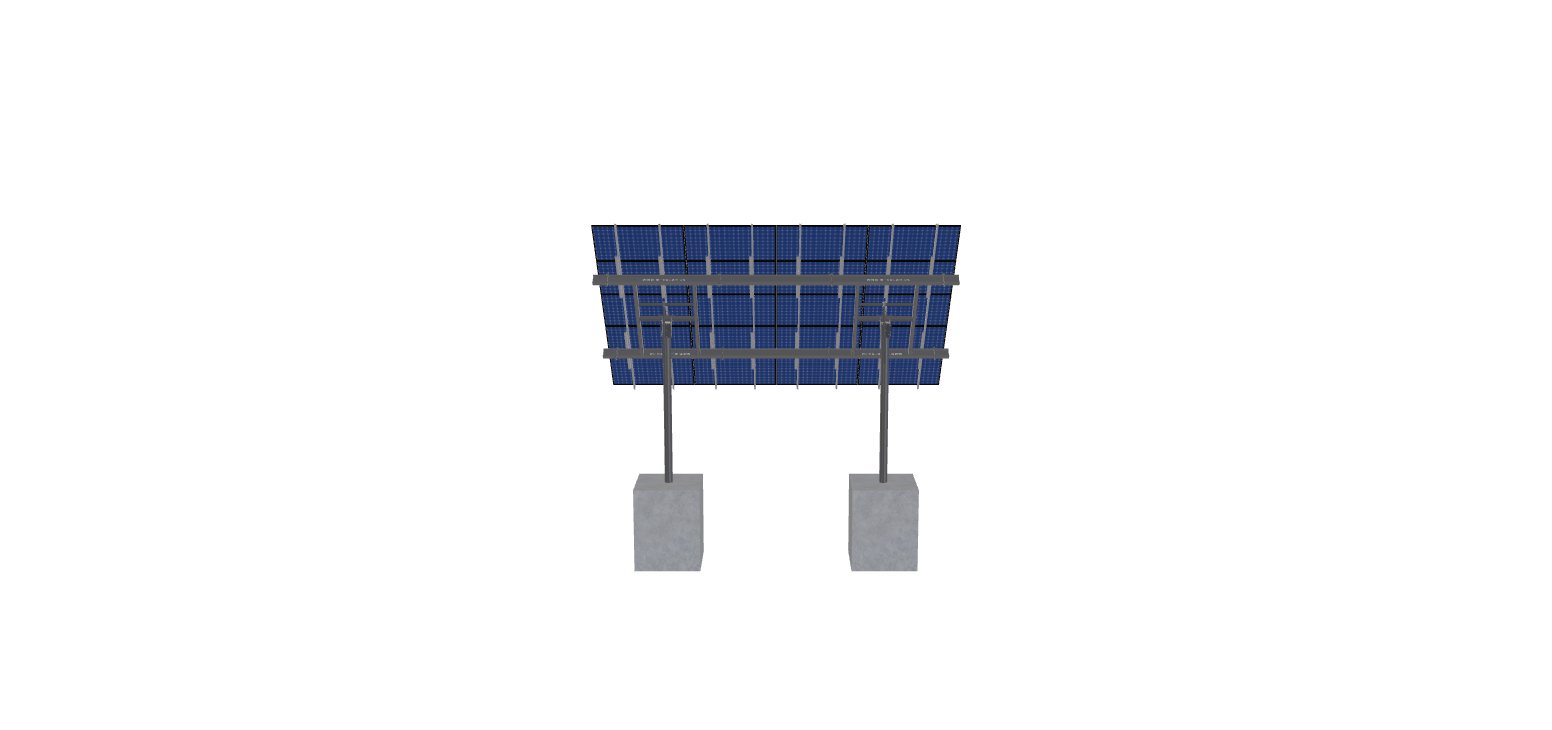

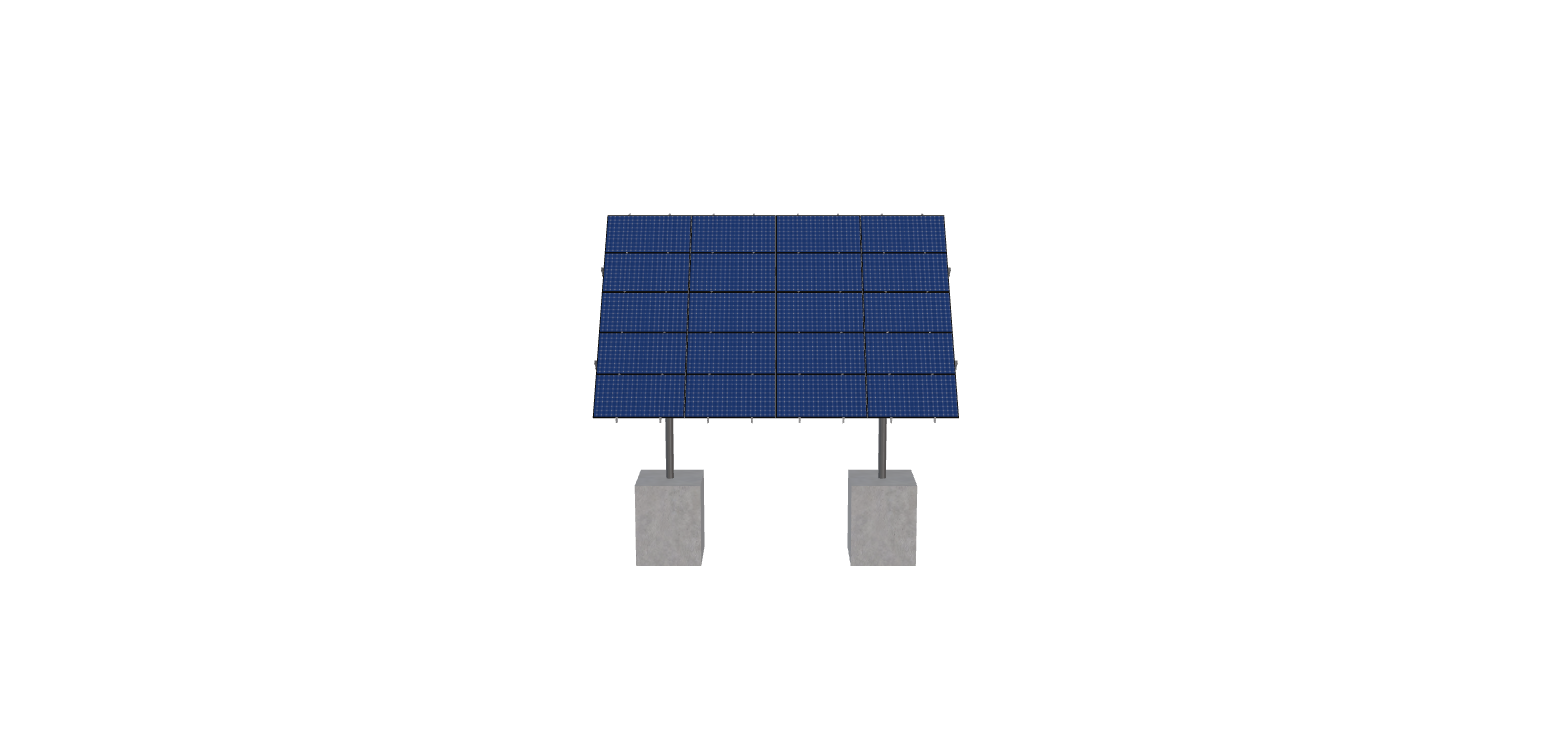

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-15-6TOP-SD-12-L-5Hx4W-HDJL Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1412.26 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-6TOP-SD-12-L-5HX4W-HDJL

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

11.46

WING SPAN

12.00

MAX FOUNDATION DEPTH

5.75

TILT ANGLE

50.00

CANTILEVER

294.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

408.94

ARRAY WIDTH

24.23

ARRAY HEIGHT

16.88

RAIL LENGTH

202.50

MODULE LENGTH

71.70

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

24.50

GROUND TO TOP

17.85

PROJECTED PANEL HEIGHT

12.77

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

JURMU

SITE ADDRESS

10856, PELKIE, RD, PELKIE, MI, 49958, USA

MODULE WIDTH

40.00

NUMBER ROWS

5.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

7428.21

TOTAL WEIGHT

1412.26

TOTAL PALLETS

2.00
