Justin Dean

$9,304.58

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

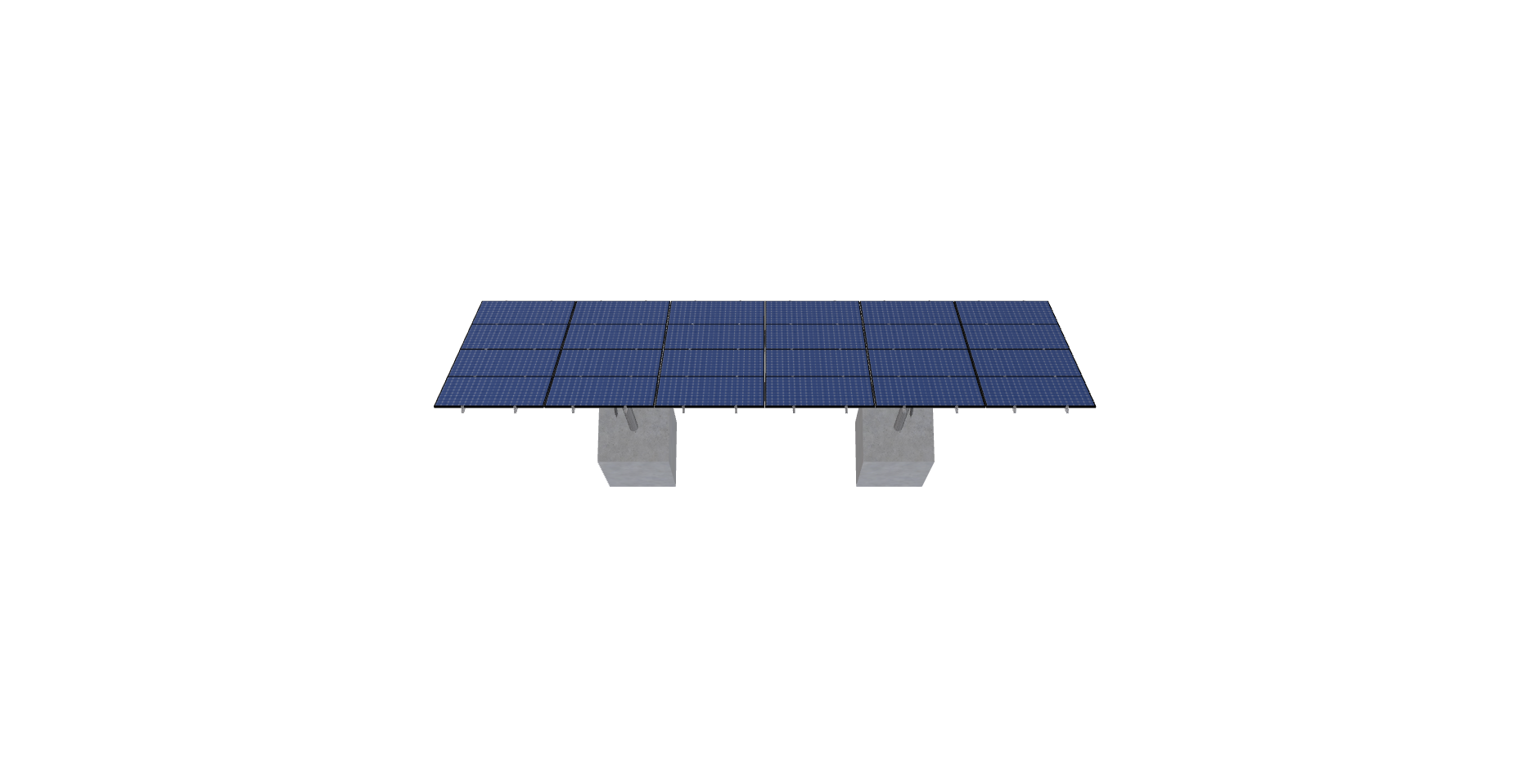

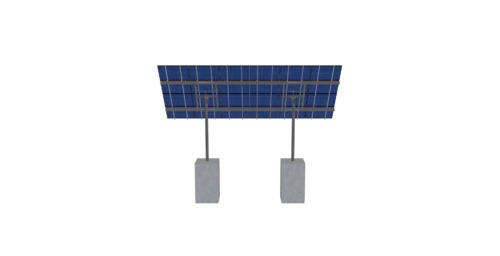

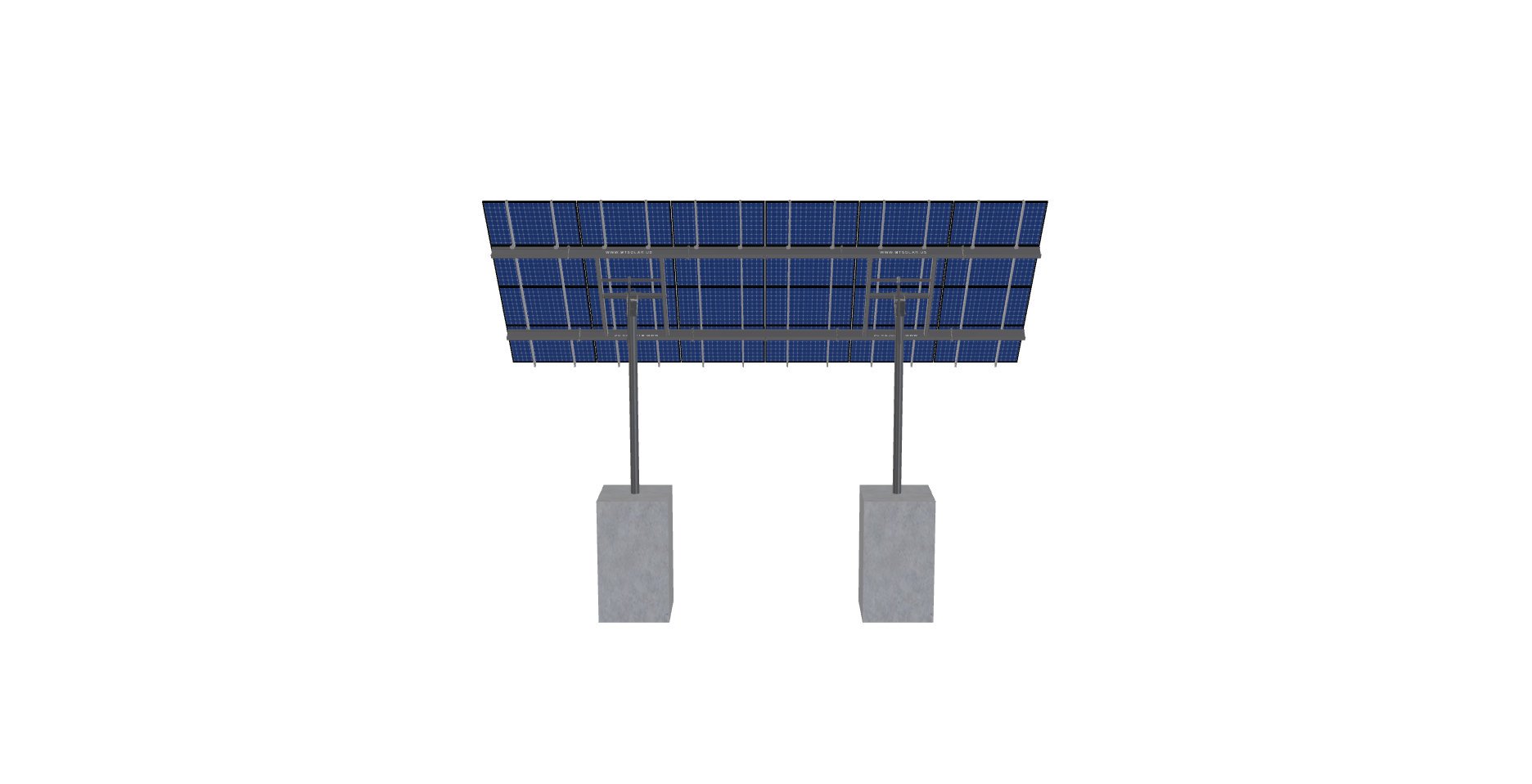

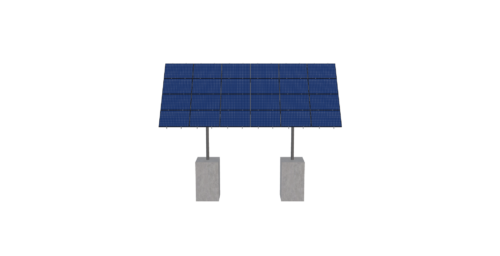

See 3D Model Here

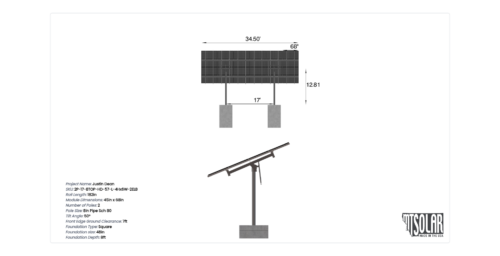

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-17-8TOP-HD-57-L-4Hx6W-2ELB Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1697.54 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-8TOP-HD-57-L-4HX6W-2ELB

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

12.81

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.00

TILT ANGLE

50.00

CANTILEVER

408.00

GROUND CLEARANCE

7.00

NO POLES

2.00

MODULE AREA

523.25

ARRAY WIDTH

34.50

ARRAY HEIGHT

15.17

RAIL LENGTH

182.00

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.00

GROUND TO TOP

18.55

PROJECTED PANEL HEIGHT

11.49

PROJECT ID

JUSTIN, DEAN

SITE ADDRESS

185, BOYNTON, HILL, RD, NEW, IPSWICH, NH, 03071, USA

MODULE WIDTH

45.00

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

125.00

SNOW LOAD OVERRIDE

70.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

9304.58

TOTAL WEIGHT

1697.54

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/679183f7-fa5e-4af2-8d34-839d4bb485e7.pdf

ID

6370.00
