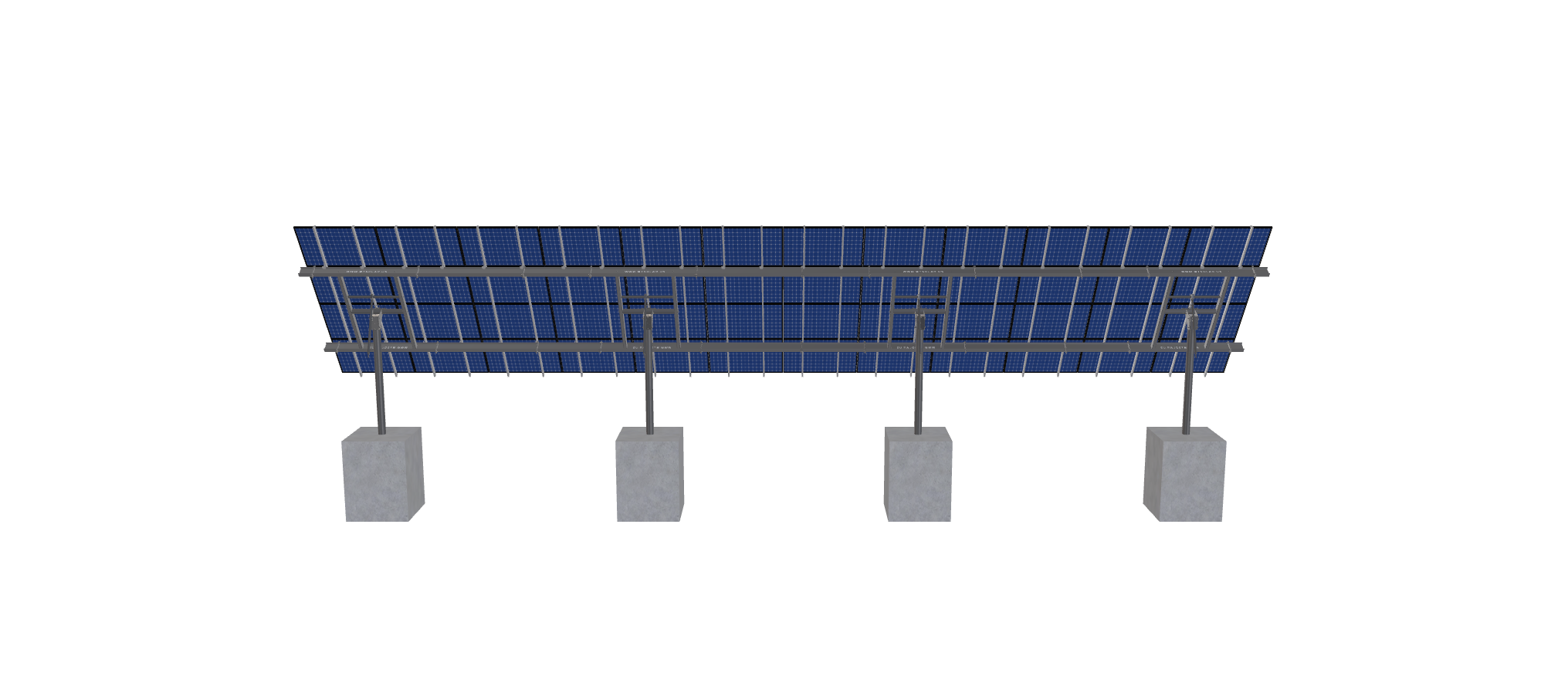

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

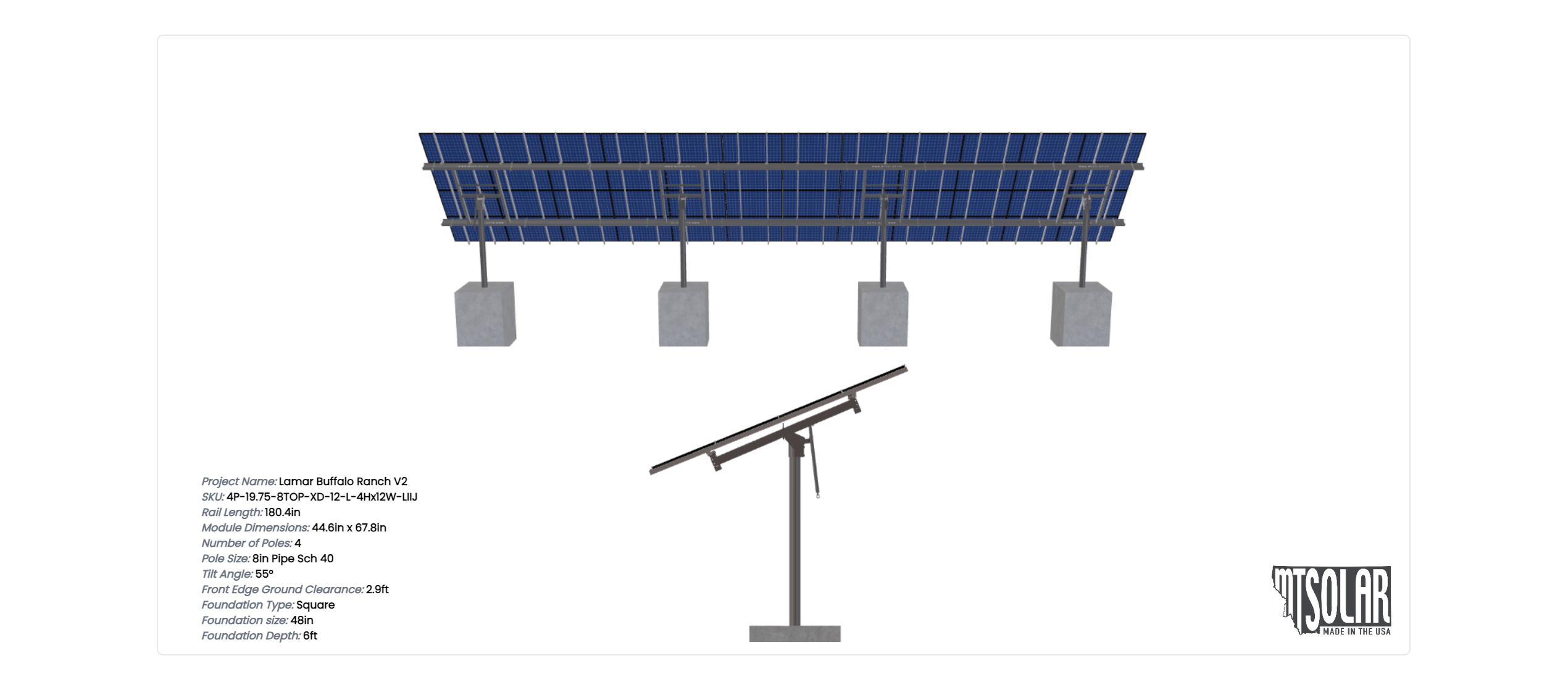

See 3D Model Here
Lamar Buffalo Ranch V2
$22,010.71
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3883.64 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-XD-12-L-4HX12W-LIIJ |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.06 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 2.90 |
| NO POLES | 4.00 |
| MODULE AREA | 1034.29 |
| ARRAY WIDTH | 68.80 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 15.21 |
| PROJECTED PANEL HEIGHT | 12.31 |
| DESIGNER NAME | DAVID, KIRK |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4066978132.00 |
| PROJECT ID | LAMAR, BUFFALO, RANCH, V2 |
| SITE ADDRESS | VQW8+37, FOSSIL, FOREST, WY, 82190, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 140.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 20962.58 |
| TOTAL WEIGHT | 3883.64 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/eff700c4-8486-4cc2-ae69-a652738736c5.pdf |
|
| ID | 8870.00 |
| 3D Solar link |
