This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.08 inches by 41.5 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

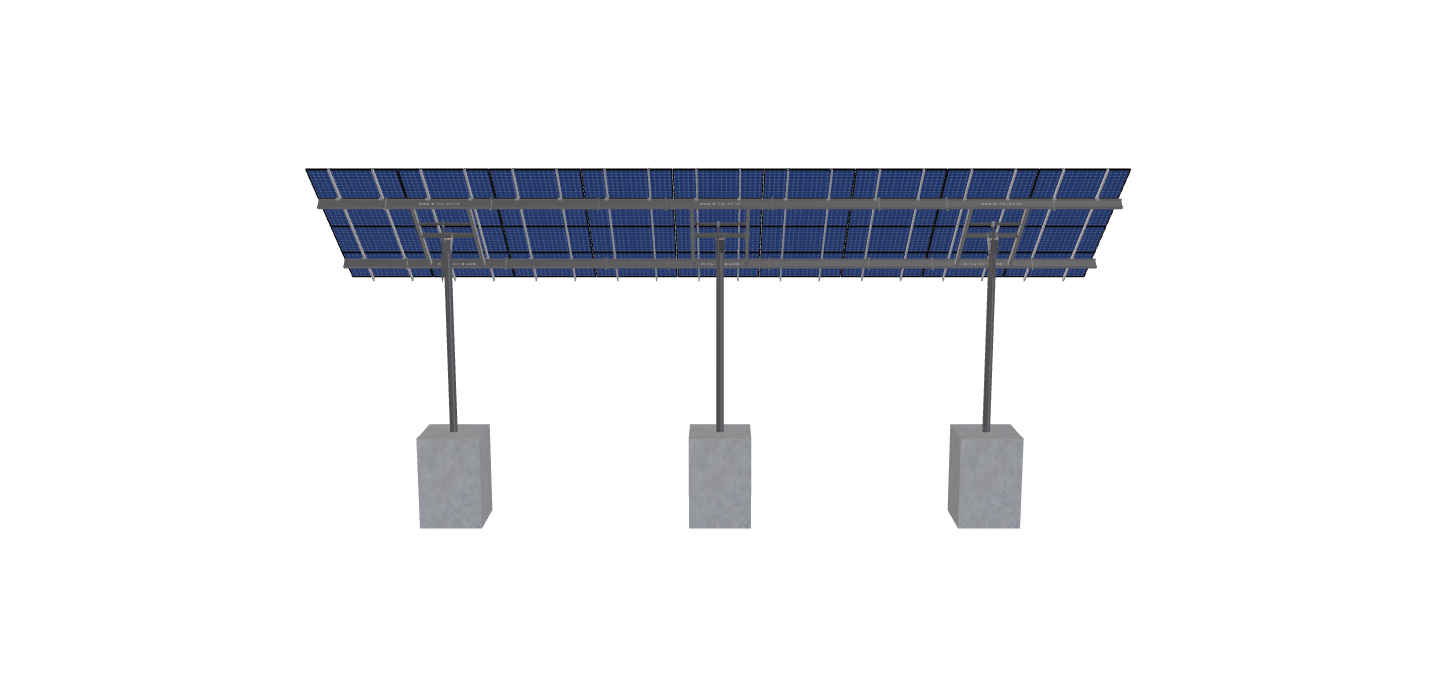

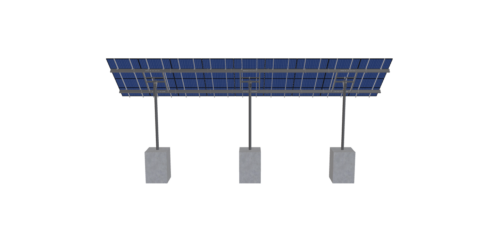

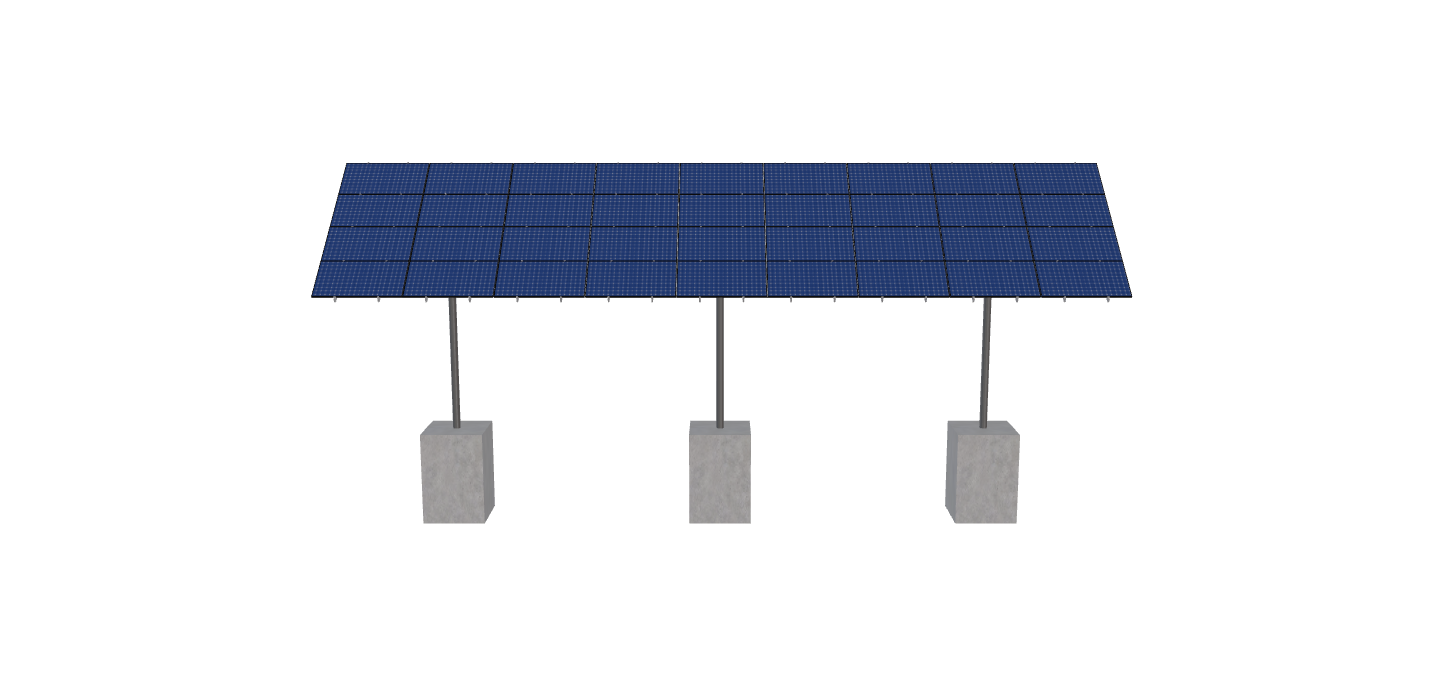

See 3D Model Here
Lambert Lake-V1cu
$12,602.93
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.08 inches by 41.5 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

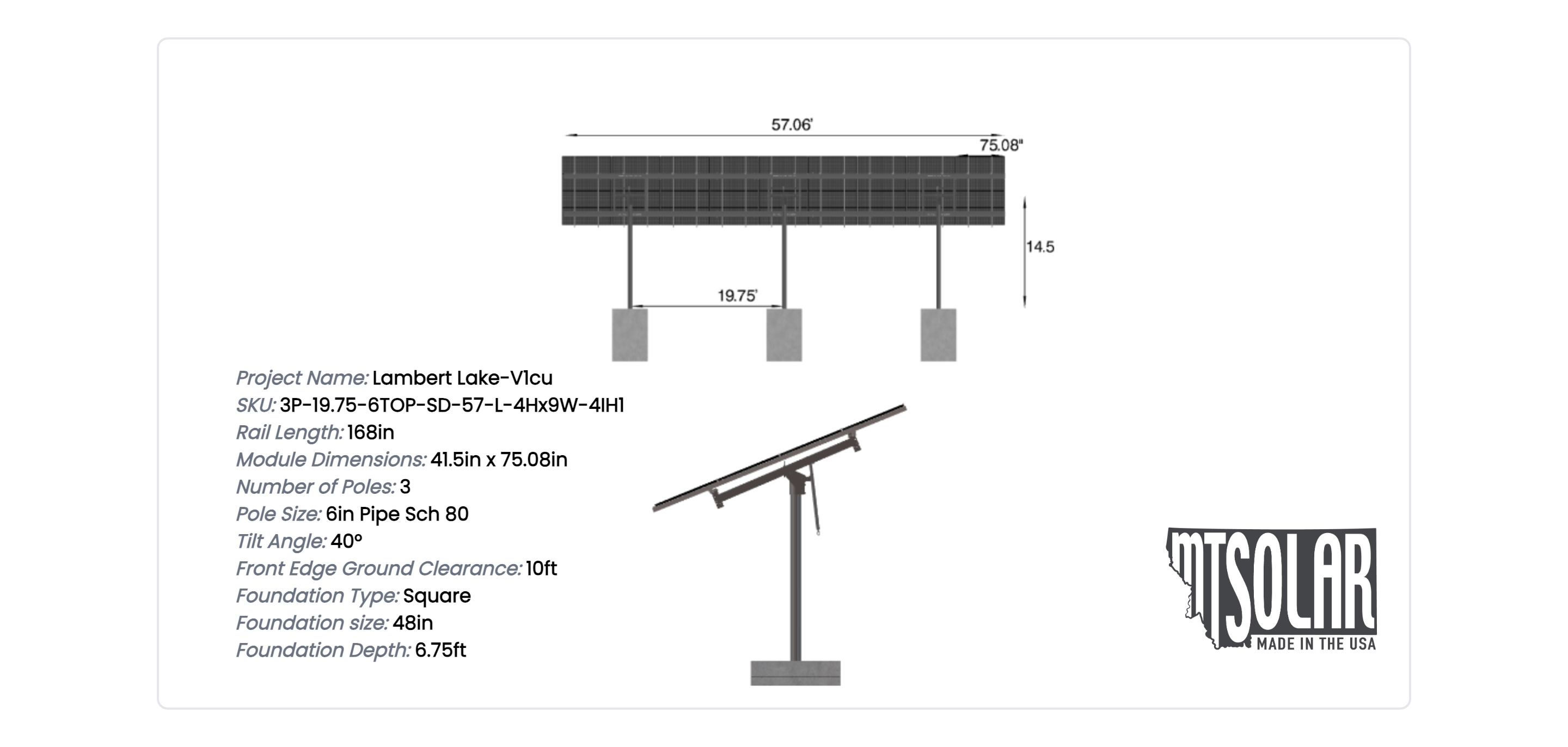

| Weight | 2245.98 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-SD-57-L-4HX9W-4IH1 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 14.50 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 798.84 |
| ARRAY WIDTH | 57.06 |
| ARRAY HEIGHT | 14.00 |
| RAIL LENGTH | 168.00 |
| MODULE LENGTH | 75.08 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 18.95 |
| PROJECTED PANEL HEIGHT | 8.89 |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | LAMBERT, LAKE-V1CU |
| SITE ADDRESS | 18488, LAMBERT, LAKE, RD, SONORA, CA, 95370, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 12602.93 |
| TOTAL WEIGHT | 2245.98 |
| TOTAL PALLETS | 3.00 |
