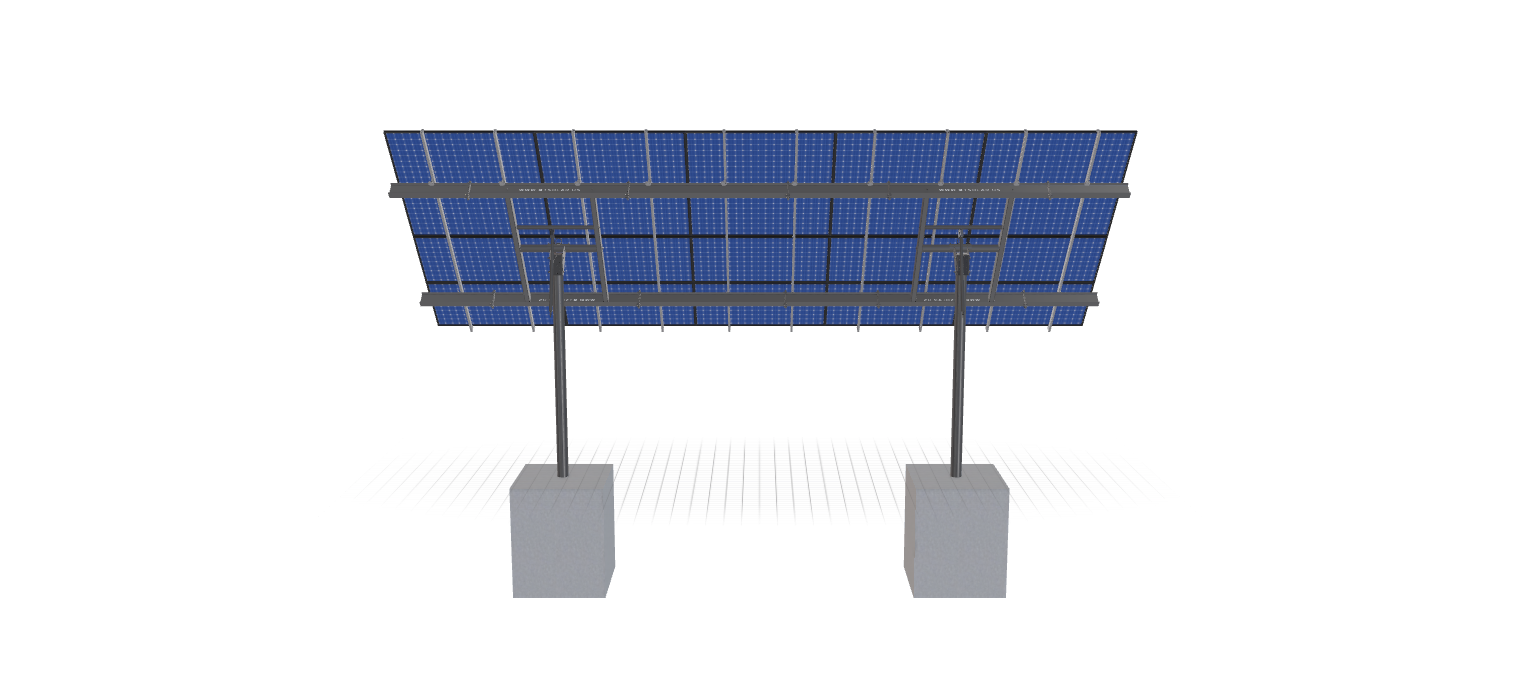

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.48 inches by 40.91 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
LastChanceRanchRevA
$7,854.31
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.48 inches by 40.91 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1399.6 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-SD-45-L-4HX5W-6C55 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.29 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 2.00 |
| MODULE AREA | 480.13 |
| ARRAY WIDTH | 34.78 |
| ARRAY HEIGHT | 13.80 |
| RAIL LENGTH | 165.64 |
| MODULE LENGTH | 82.48 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 16.51 |
| PROJECTED PANEL HEIGHT | 10.45 |
| PROJECT ID | LASTCHANCERANCHREVA |
| SITE ADDRESS | 49, W, CENTER, ST, HATCH, UT, 84735, USA |
| MODULE WIDTH | 40.91 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 61.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 7854.31 |
| TOTAL WEIGHT | 1399.60 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/e4b99697-354d-4320-b46b-3c99d5b766b8.pdf |
|
| ID | 852.00 |
| 3D Solar link |
