This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.6 inches by 44.6 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

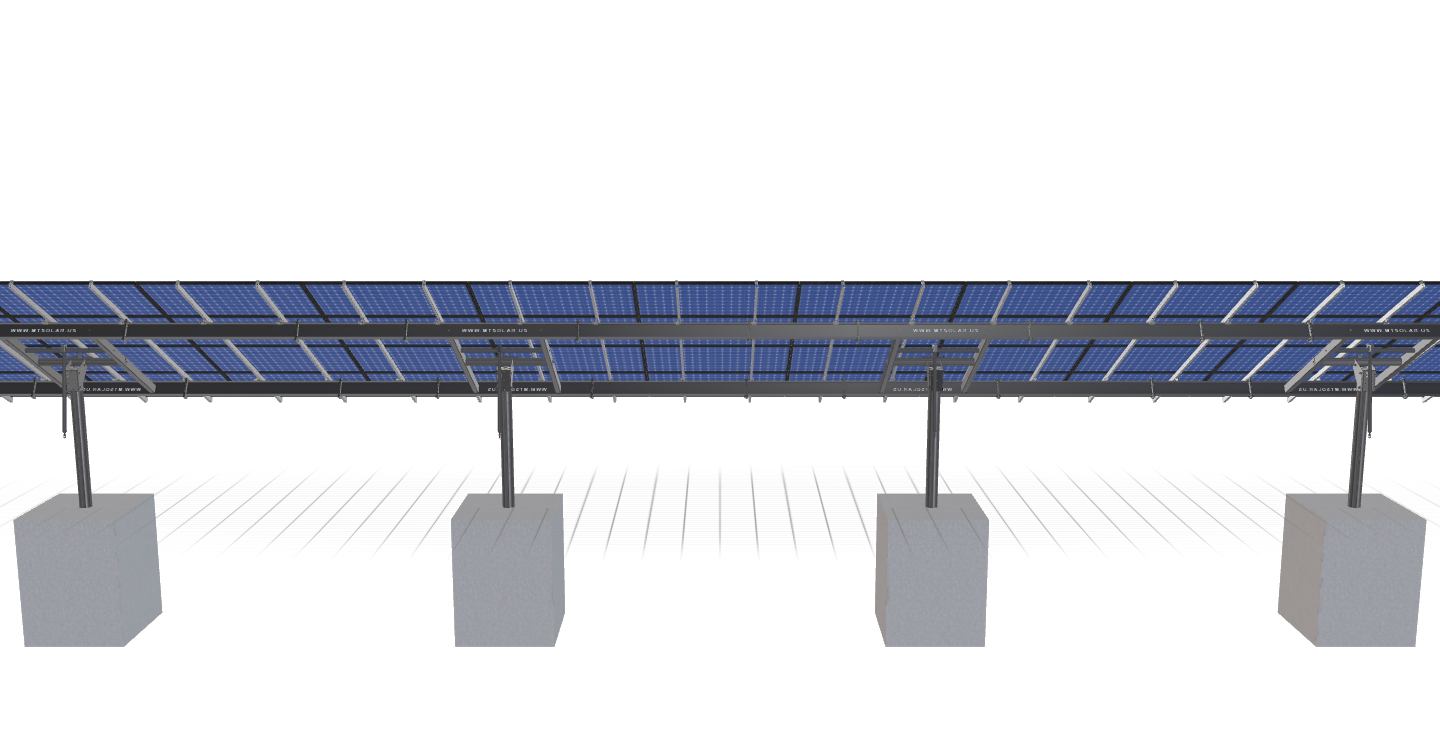

See 3D Model Here
LorenzFarm-JB-RevB
$22,412.02
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.6 inches by 44.6 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4026.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-XD-57-L-4HX11W-7LKD |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 6.76 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 915.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1152.05 |
| ARRAY WIDTH | 76.63 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 82.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 76.25 |
| GROUND TO TOP | 10.47 |
| PROJECTED PANEL HEIGHT | 7.43 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | LORENZFARM-JB-REVB |
| SITE ADDRESS | 16387, MN-22, WELLS, MN, 56097, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 21344.78 |
| TOTAL WEIGHT | 4026.42 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/9adeaa41-d2df-4ebd-b5fe-1099ec1973f4.pdf |
|
| ID | 1041.00 |
| 3D Solar link |
