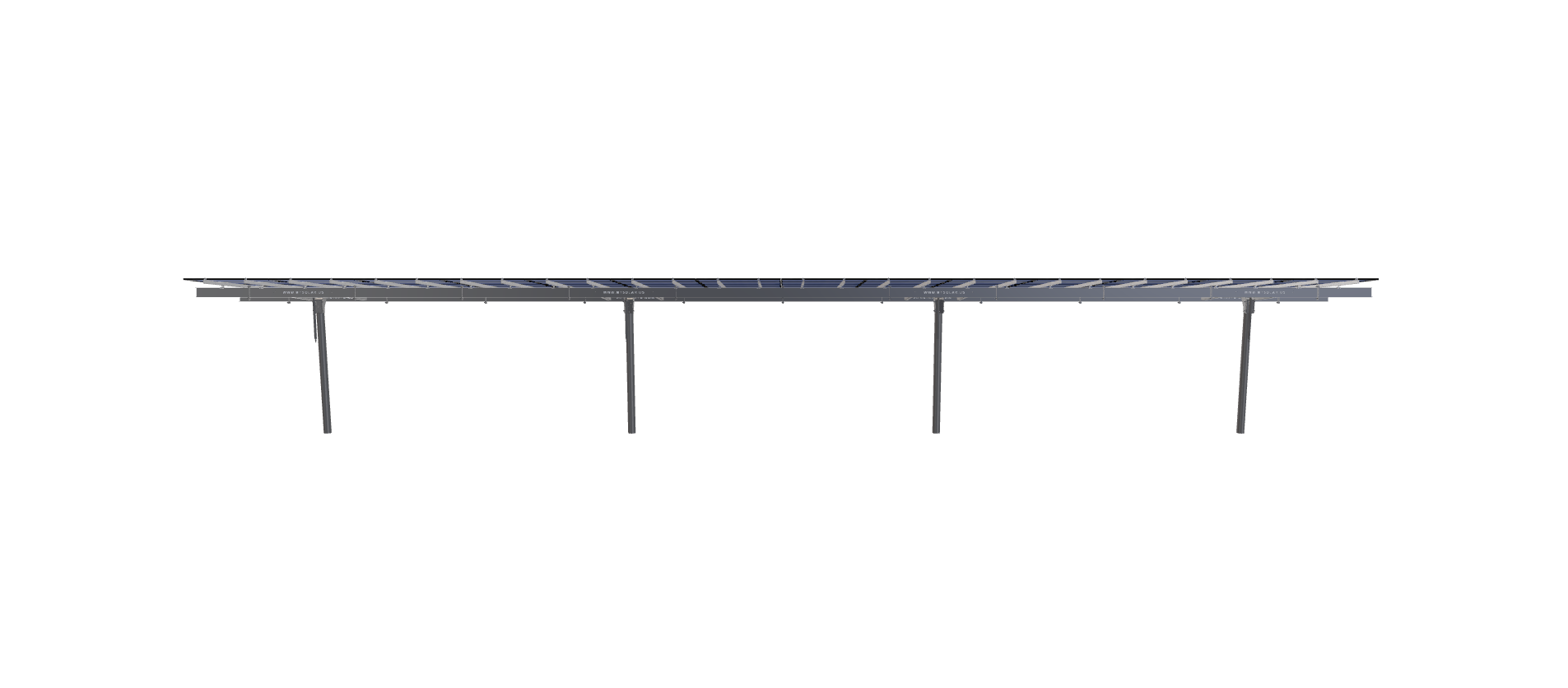

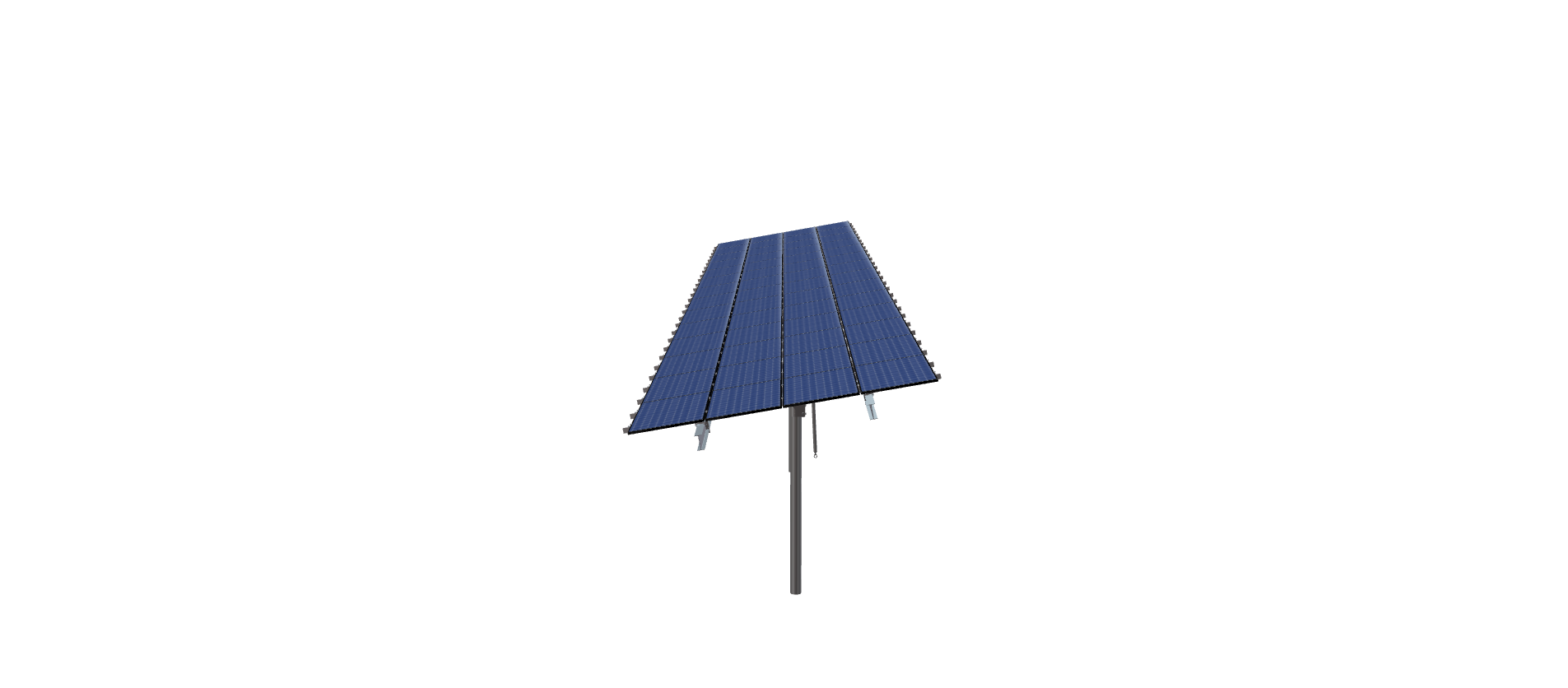

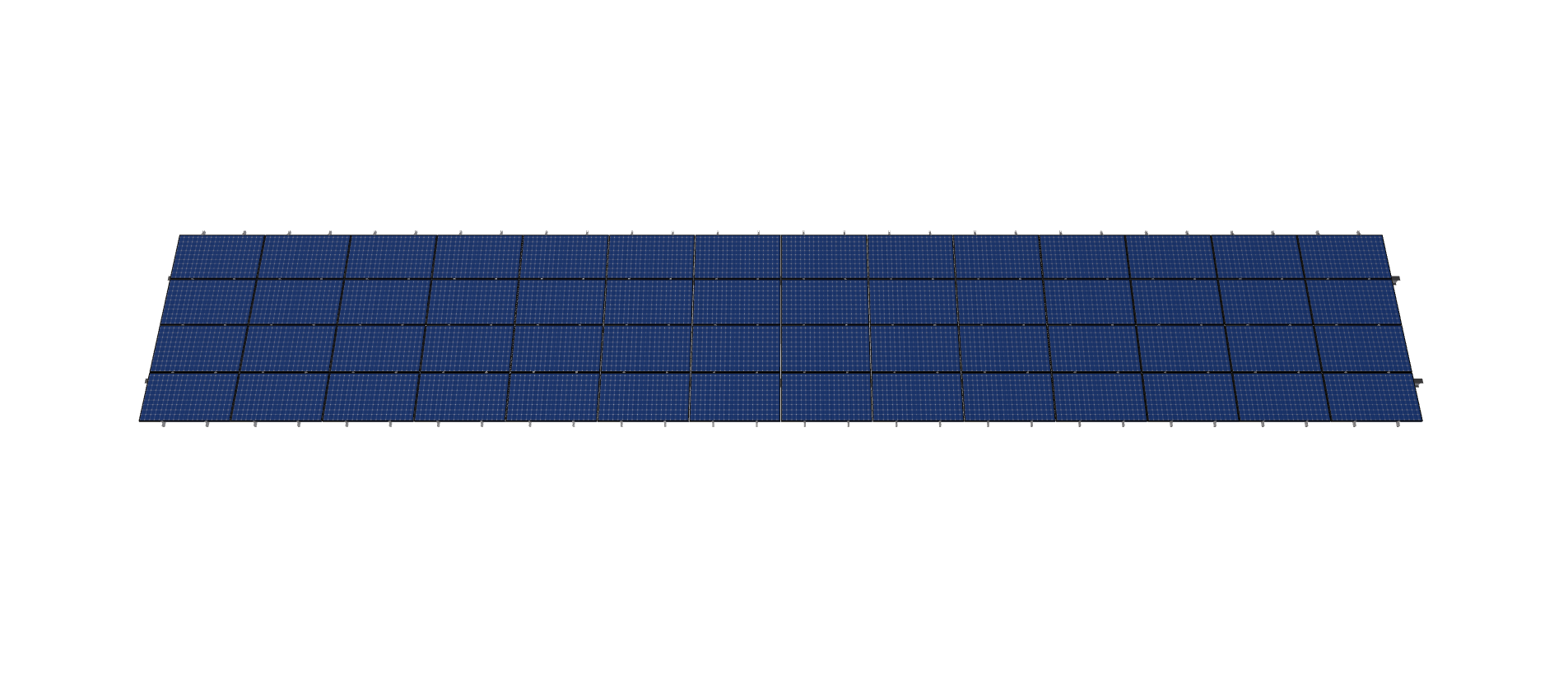

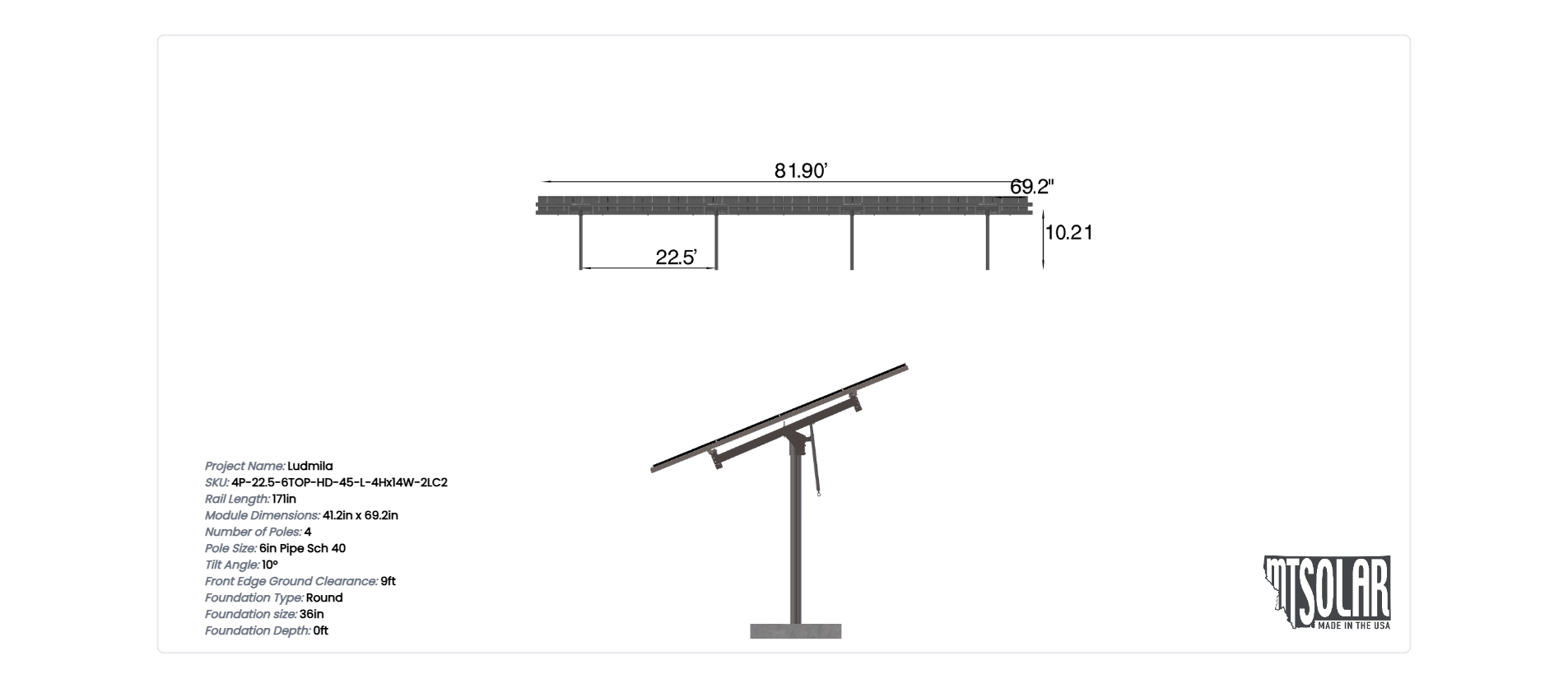

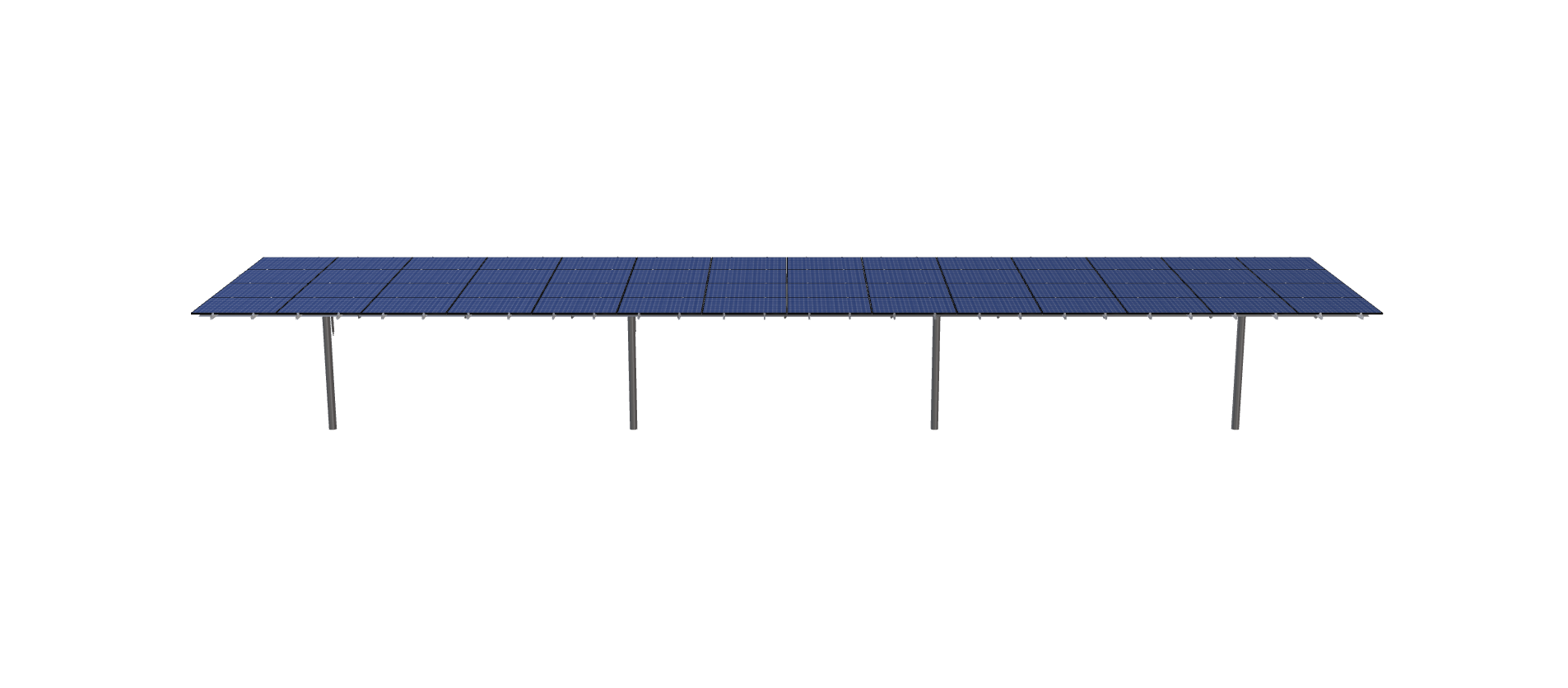

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.2 inches by 41.2 inches and an array layout of 14 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Ludmila
$21,732.43
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.2 inches by 41.2 inches and an array layout of 14 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3814.44 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-6TOP-HD-45-L-4HX14W-2LC2 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.21 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 990.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1138.41 |
| ARRAY WIDTH | 81.90 |
| ARRAY HEIGHT | 13.90 |
| RAIL LENGTH | 171.00 |
| MODULE LENGTH | 69.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 82.50 |
| GROUND TO TOP | 11.41 |
| PROJECTED PANEL HEIGHT | 2.41 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | RINAT, YAGUDIN |
| DESIGNER EMAIL | ALEX, K@KBELECTRIC.US |
| DESIGNER PHONE | |
| PROJECT ID | LUDMILA |
| SITE ADDRESS | 918, SETTLE, RD, INMAN, SC, 29349, USA |
| MODULE INFO | KB, SOLAR, 375W |
| MODULE WIDTH | 41.20 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 21732.43 |
| TOTAL WEIGHT | 3814.44 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/d87dff67-feab-41dc-9269-efbb28726758.pdf |
|
| ID | 13970.00 |
| 3D Solar link |
