This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67 inches by 44 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

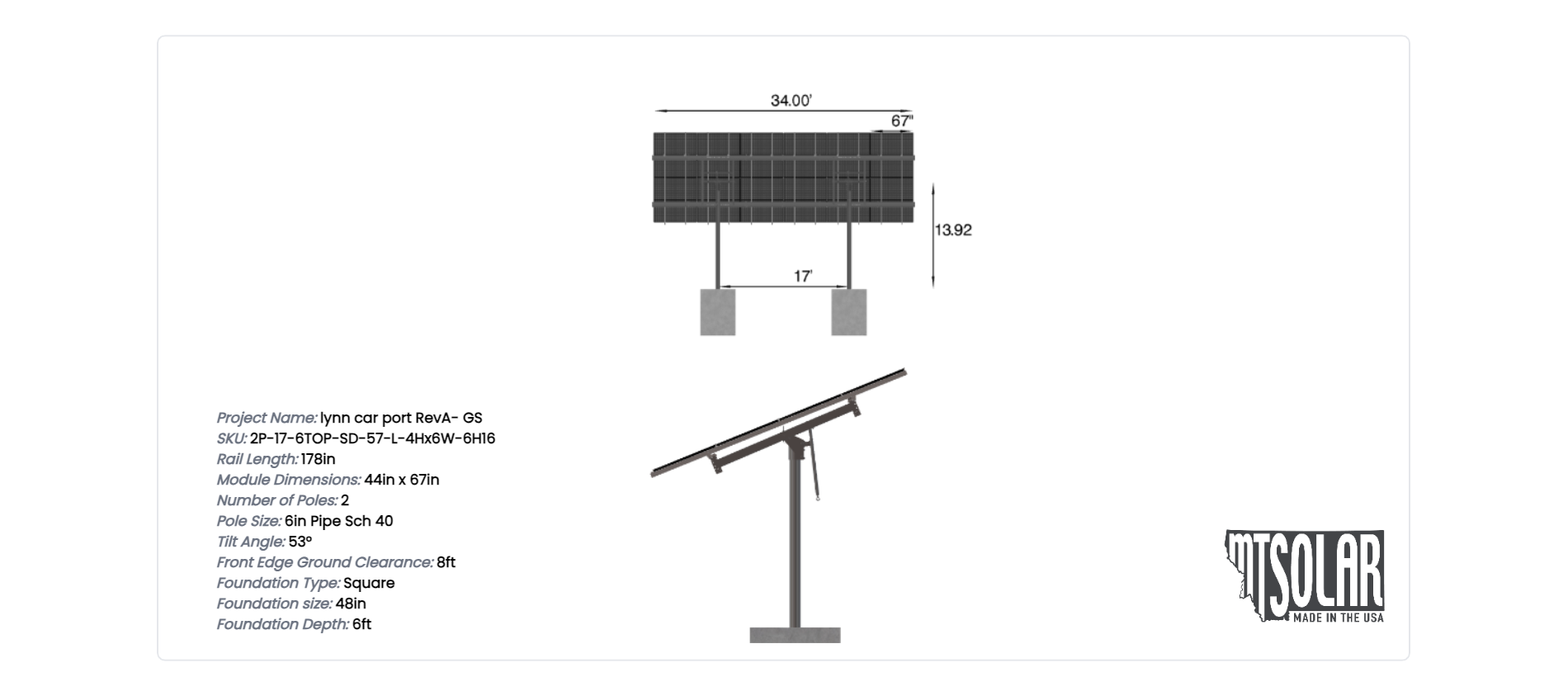

lynn car port RevA- GS
$8,511.86
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67 inches by 44 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1423.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-57-L-4HX6W-6H16 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 13.92 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 53.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 504.33 |
| ARRAY WIDTH | 34.00 |
| ARRAY HEIGHT | 14.83 |
| RAIL LENGTH | 178.00 |
| MODULE LENGTH | 67.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 19.78 |
| PROJECTED PANEL HEIGHT | 11.71 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | LYNN, CAR, PORT, REVA-, GS |
| SITE ADDRESS | 1628, ROYAL, CREST, DR, ELKO, NV, 89801, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 8106.53 |
| TOTAL WEIGHT | 1423.32 |
| TOTAL PALLETS | 2.00 |
