MARCI Cleaver – Round – V1Jb

$5,121.06

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.5 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

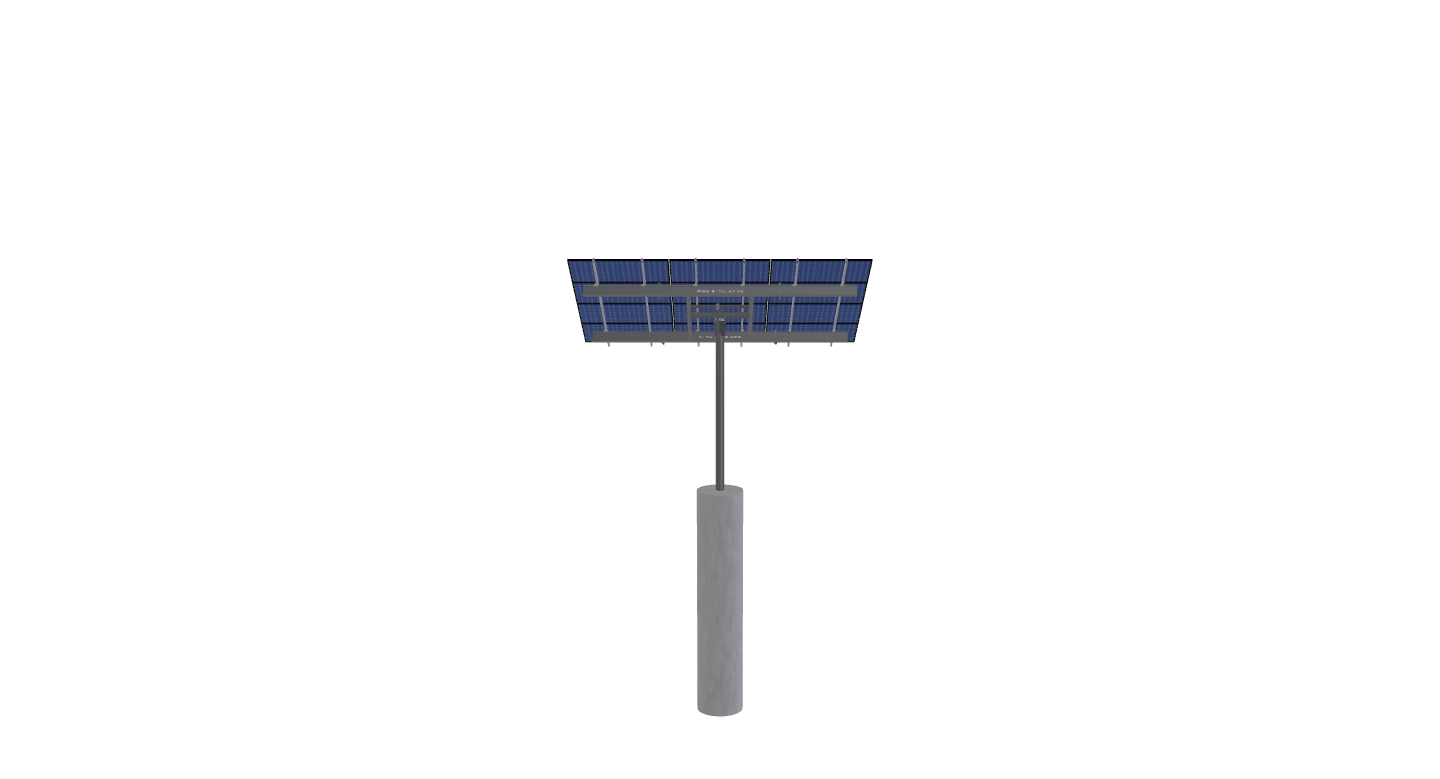

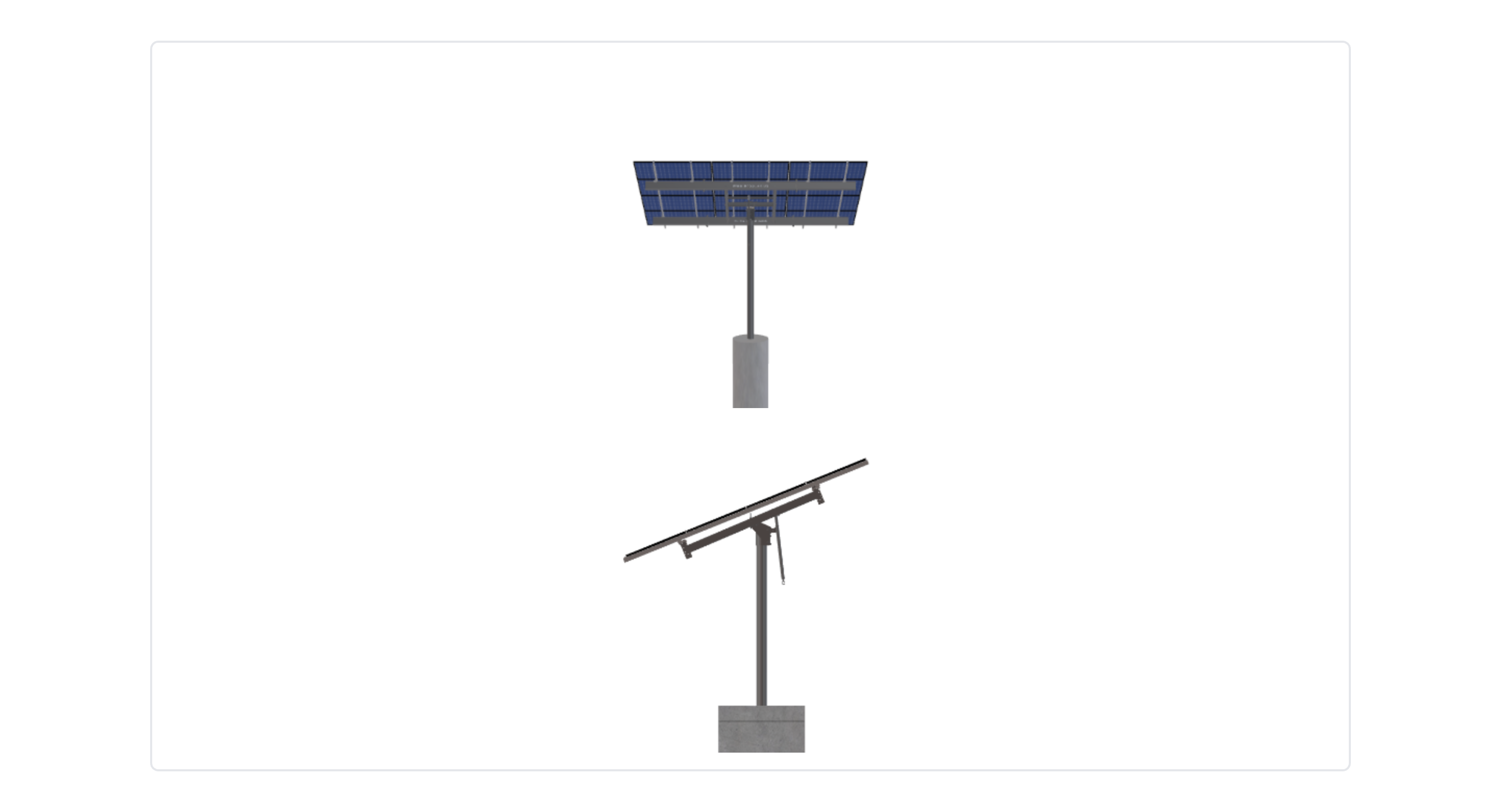

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-XD-57-L-4Hx3W-STRUTS-BG2D Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.5 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 941.21 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-XD-57-L-4HX3W-STRUTS-BG2D

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.42

WING SPAN

57.00

MAX FOUNDATION DEPTH

15.00

TILT ANGLE

30.00

CANTILEVER

204.00

GROUND CLEARANCE

8.00

NO POLES

1.00

MODULE AREA

254.20

ARRAY WIDTH

18.60

ARRAY HEIGHT

13.67

RAIL LENGTH

164.00

MODULE LENGTH

73.40

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

14.79

PROJECTED PANEL HEIGHT

6.75

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

40.00

DIRECT SNOW LOAD

TRUE

ADD ANGLE BRACE

TRUE

PROJECT ID

MARCI, CLEAVER, -, ROUND, -, V1JB

SITE ADDRESS

3415, QUAIL, CREEK, LN, NE, OLYMPIA, WA, 98516, USA

MODULE WIDTH

40.50

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

30.00

CHECK RAILS

FALSE

TOTAL PRICE

5121.06

TOTAL WEIGHT

941.21

TOTAL PALLETS

1.00
