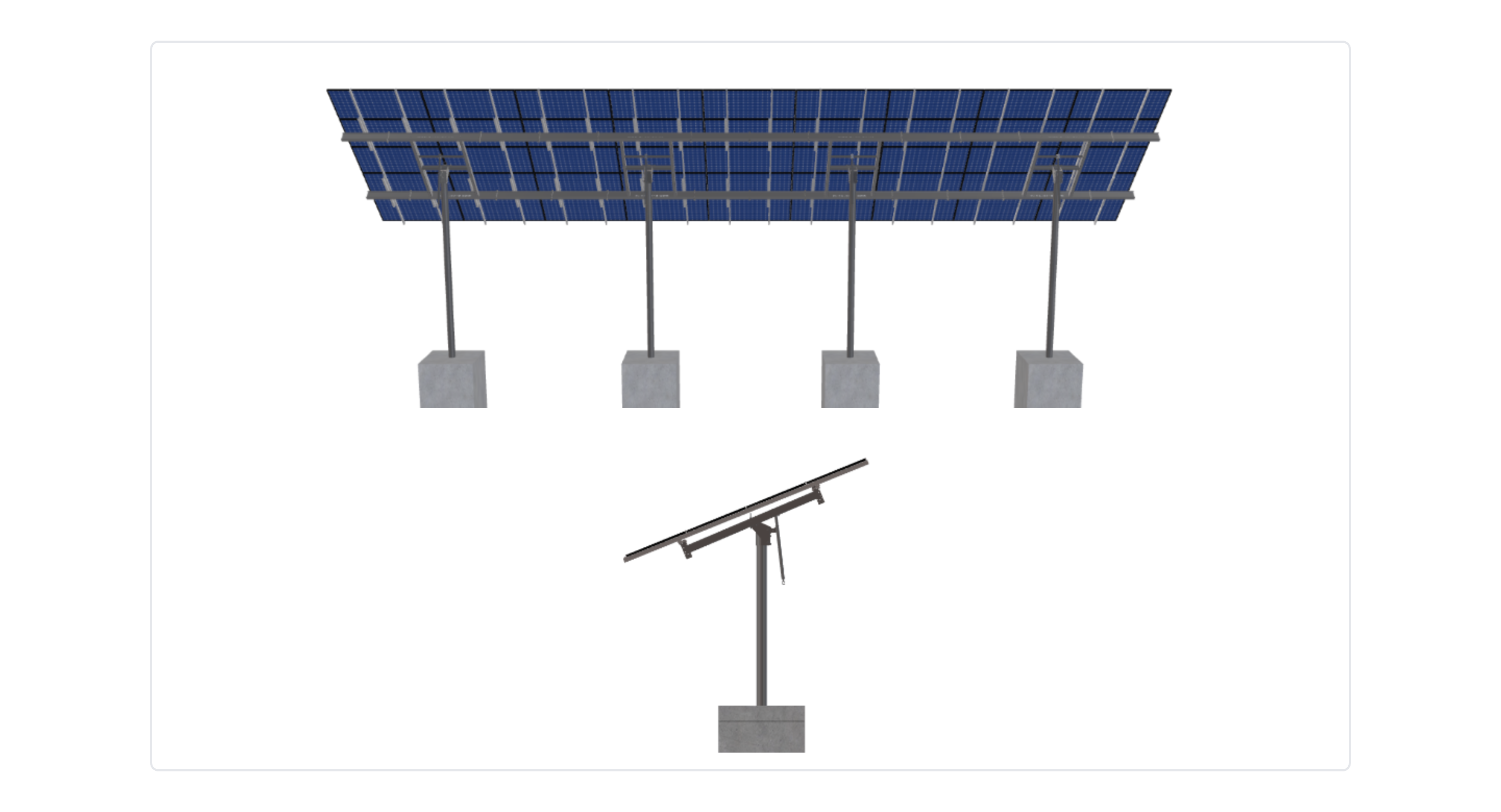

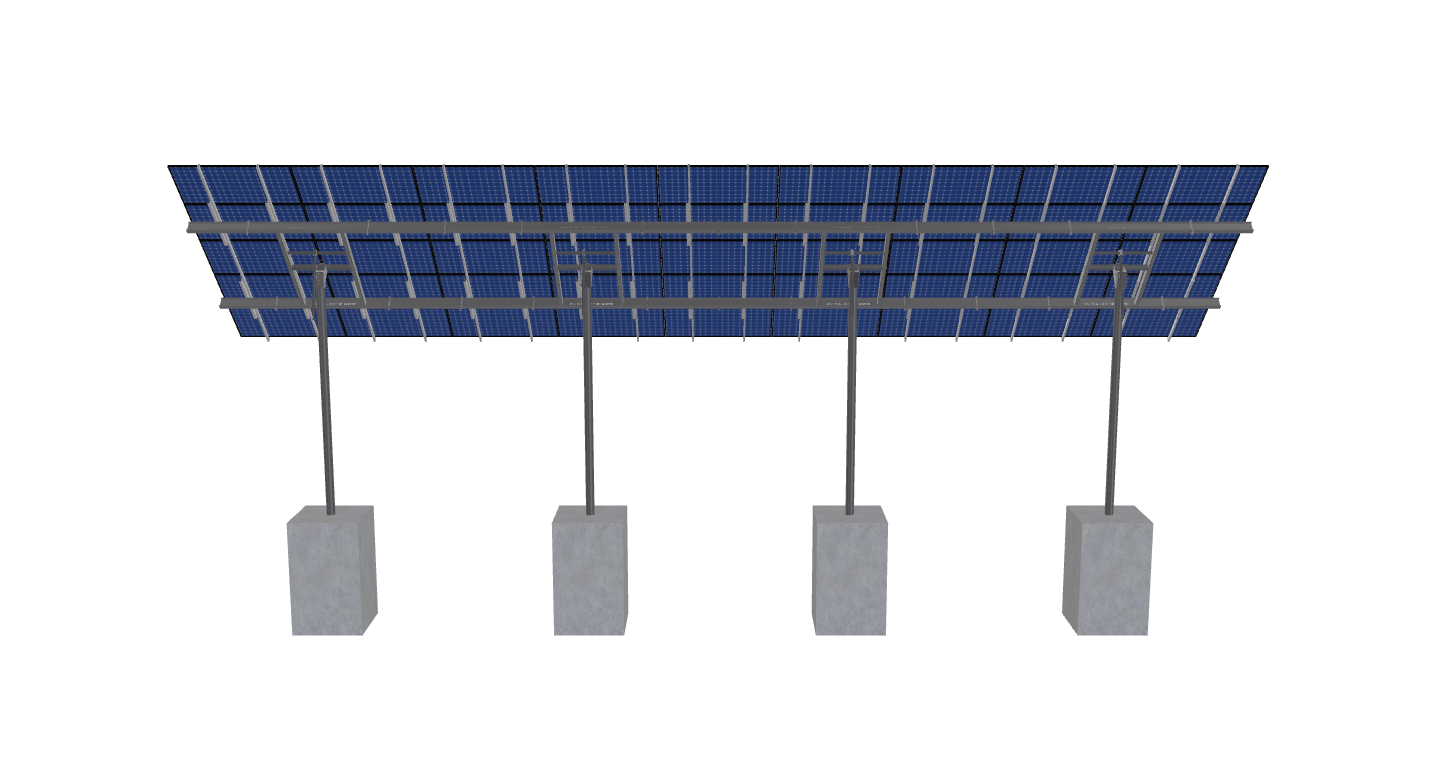

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.3 inches by 41.2 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Sch 40 steel poles with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MARTA – Structure 1 – 5×9 – RevA – Jb
$19,183.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.3 inches by 41.2 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Sch 40 steel poles with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3850.2000000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-8TOP-HD-45-L-5HX9W-2ED7 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 16.14 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 792.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1150.66 |
| ARRAY WIDTH | 66.22 |
| ARRAY HEIGHT | 17.38 |
| RAIL LENGTH | 208.50 |
| MODULE LENGTH | 87.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 66.00 |
| GROUND TO TOP | 22.21 |
| PROJECTED PANEL HEIGHT | 12.14 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MARTA, -, STRUCTURE, 1, -, 5X9, -, REVA, -, JB |
| SITE ADDRESS | 170, BUSINESS, CENTER, DR, BIG, BEAR, LAKE, CA, 92315, USA |
| MODULE WIDTH | 41.20 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 19315.83 |
| TOTAL WEIGHT | 3850.20 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/2a5b3ee7-09ad-45e7-bc13-4b29b9346261.pdf |
|
| ID | 5919.00 |
| 3D Solar link |
