This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.14 inches and an array layout of 5 wide by 5 high.

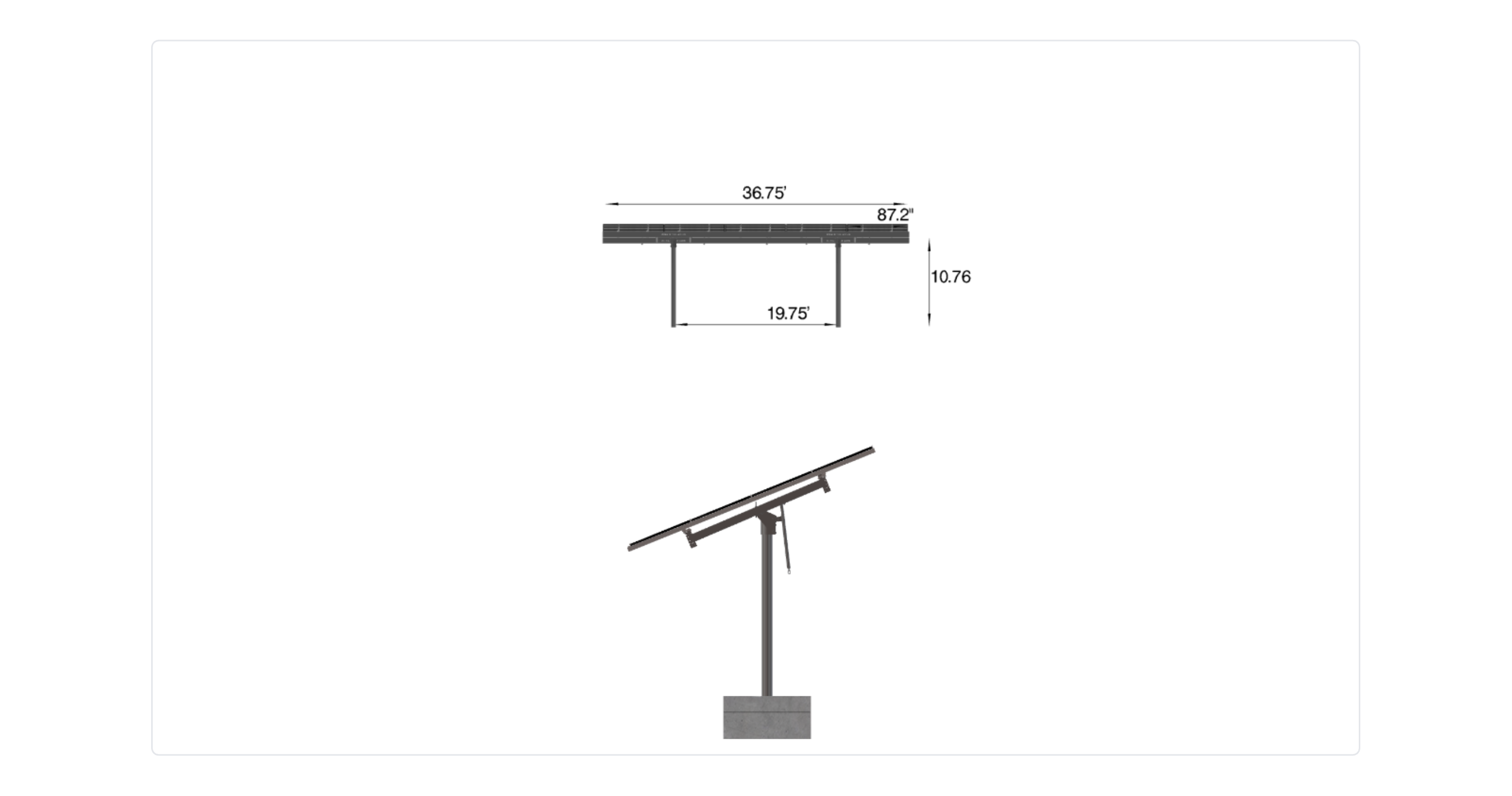

This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

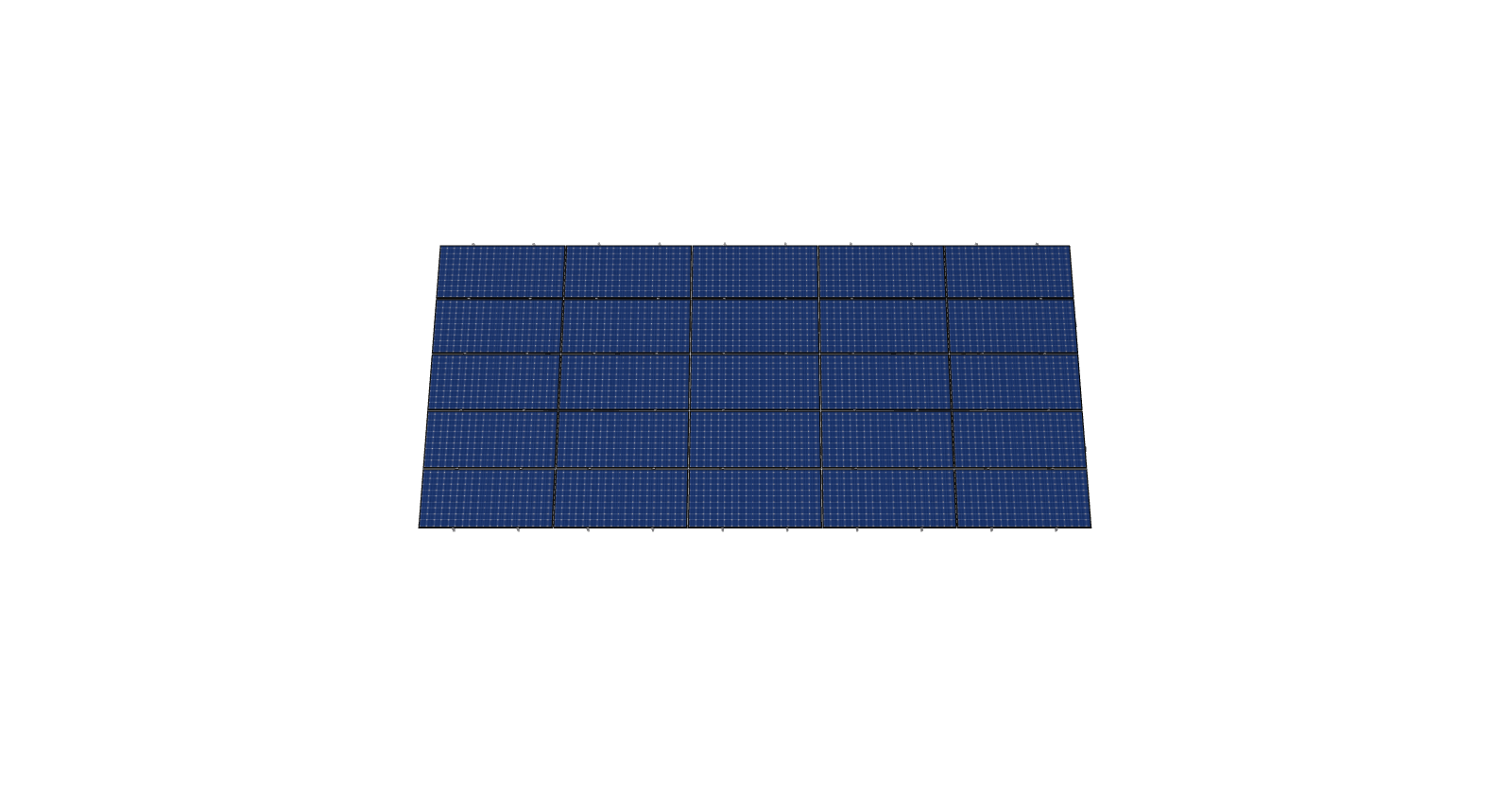

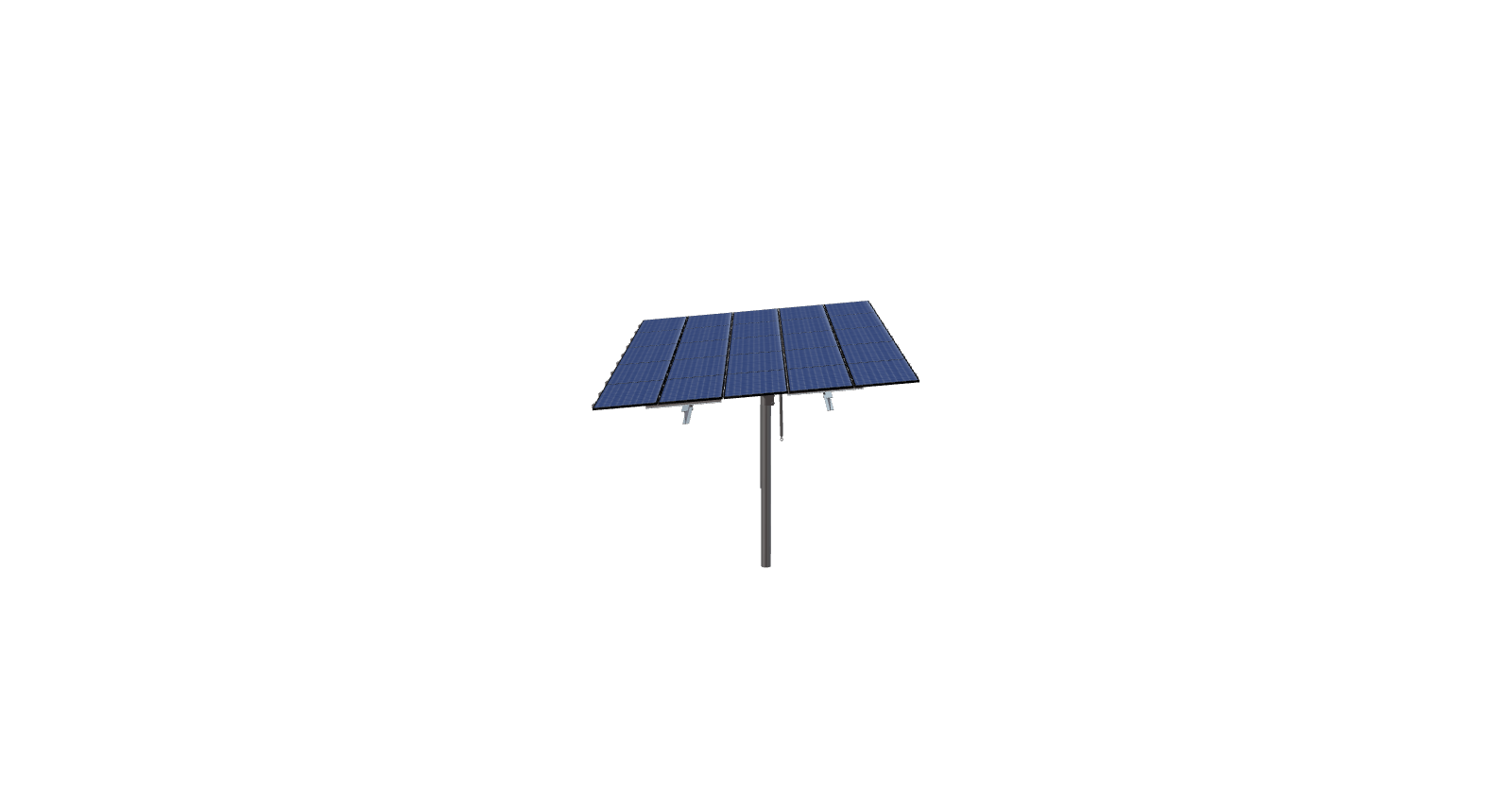

See 3D Model Here
Maryland Welcom Center – CU – 5X5A
$10,477.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.14 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2006.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-HD-57-L-5HX5W-9F55 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.76 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 2.00 |
| MODULE AREA | 637.61 |
| ARRAY WIDTH | 36.75 |
| ARRAY HEIGHT | 17.35 |
| RAIL LENGTH | 208.20 |
| MODULE LENGTH | 87.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 11.50 |
| PROJECTED PANEL HEIGHT | 1.49 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MARYLAND, WELCOM, CENTER, -, CU, -, 5X5A |
| SITE ADDRESS | 14645, ROTHGEB, DR, ROCKVILLE, MD, 20850, USA |
| MODULE WIDTH | 41.14 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | II |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9978.75 |
| TOTAL WEIGHT | 2006.40 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/86045c9d-3539-4b8b-823d-eda3eed5e3b2.pdf |
|
| ID | 3946.00 |
| 3D Solar link |
