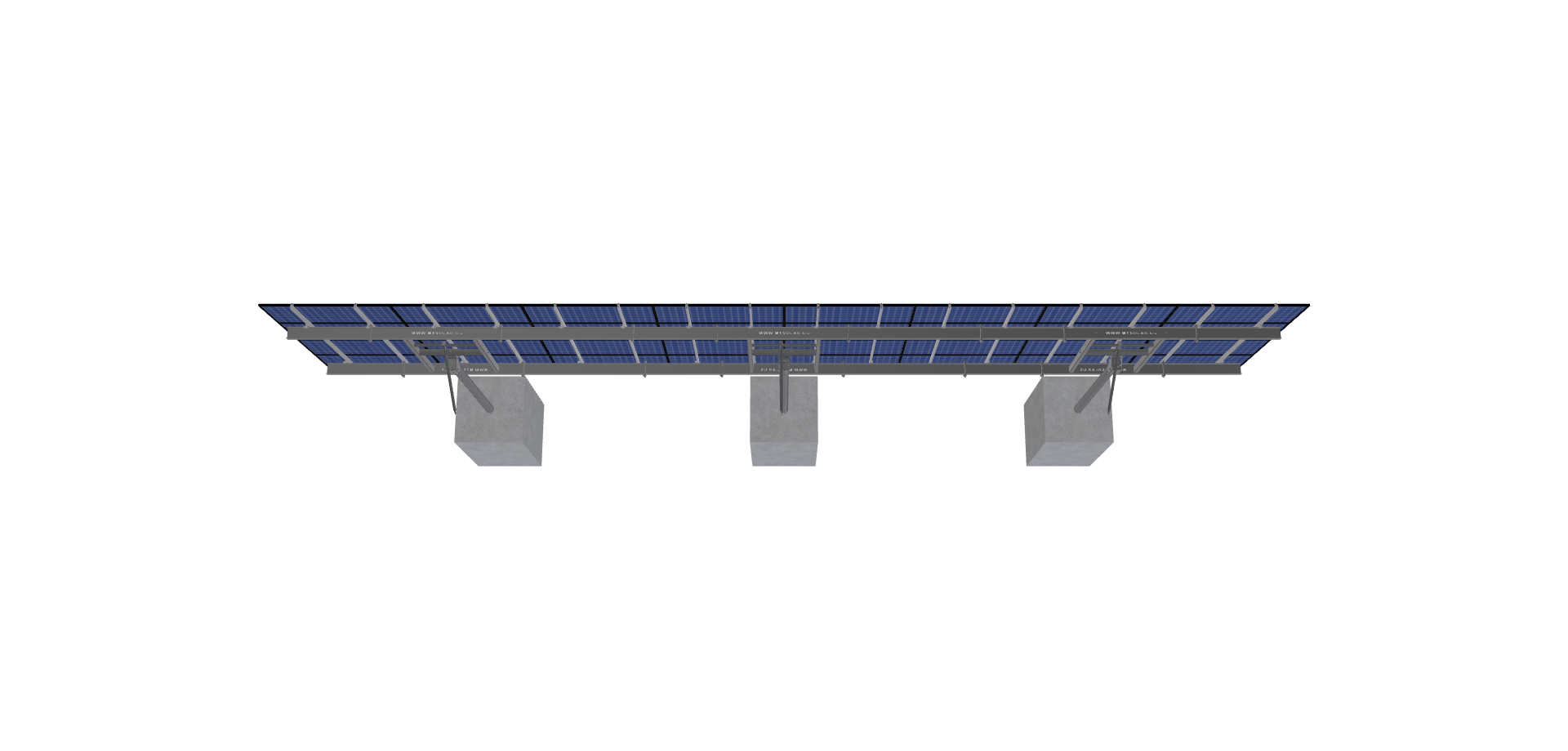

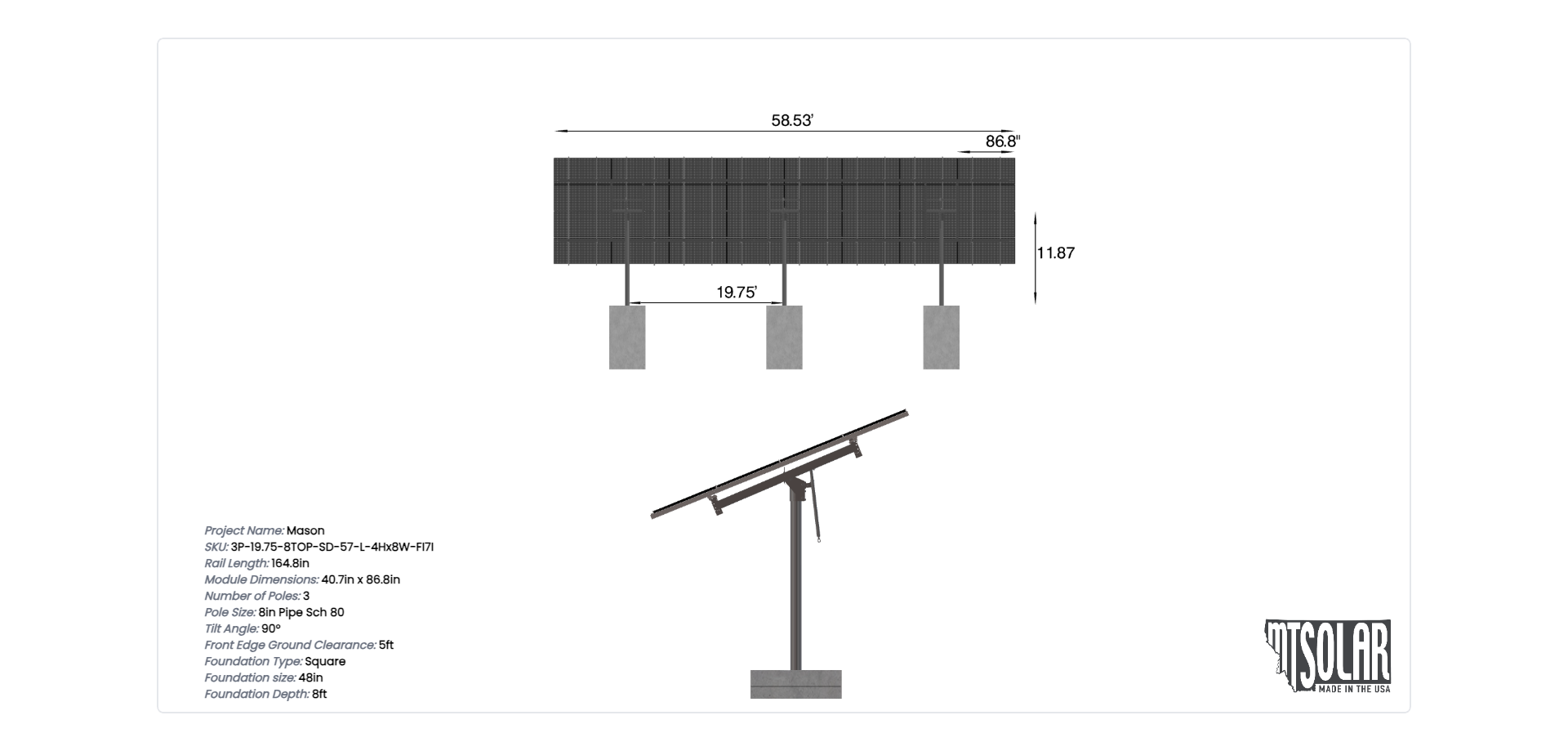

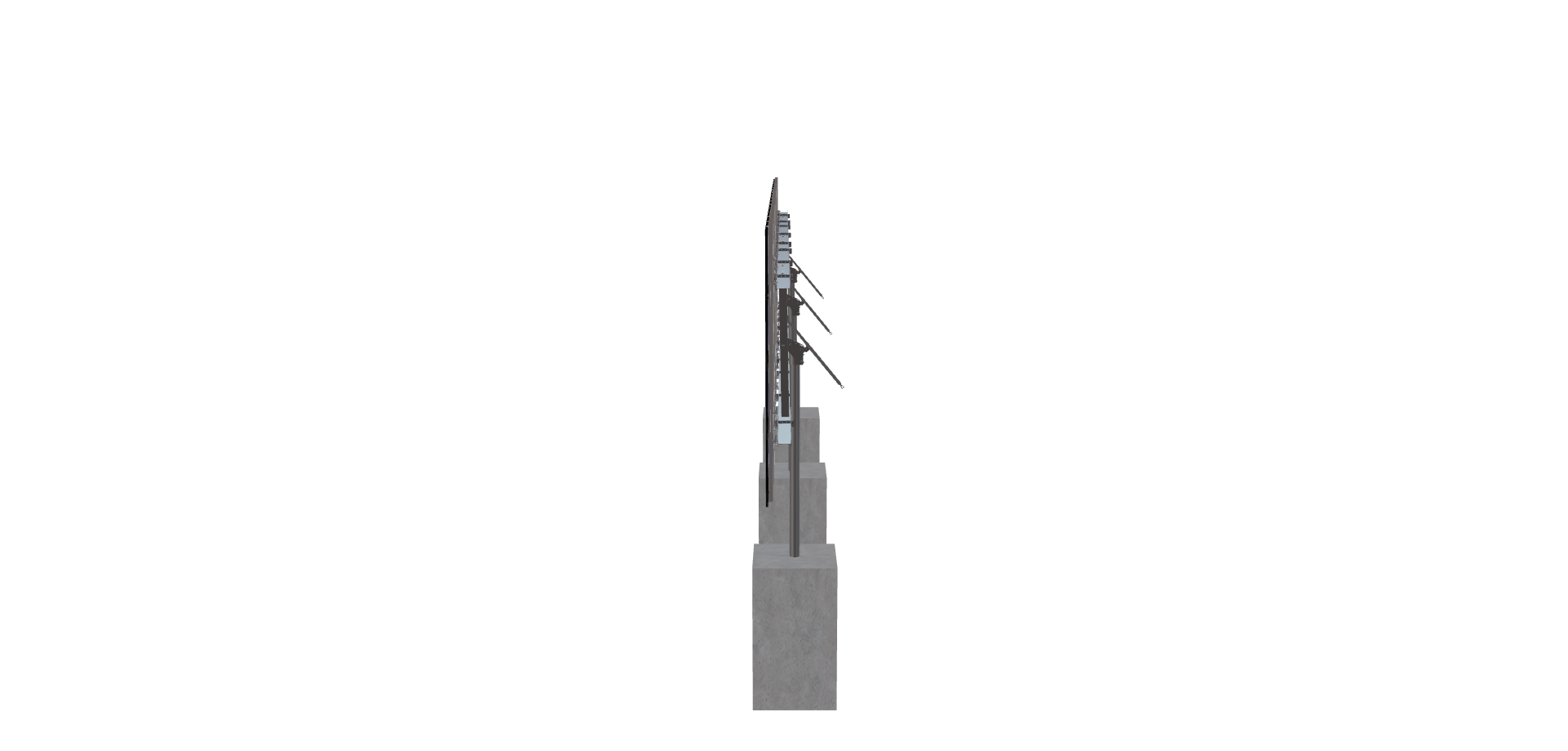

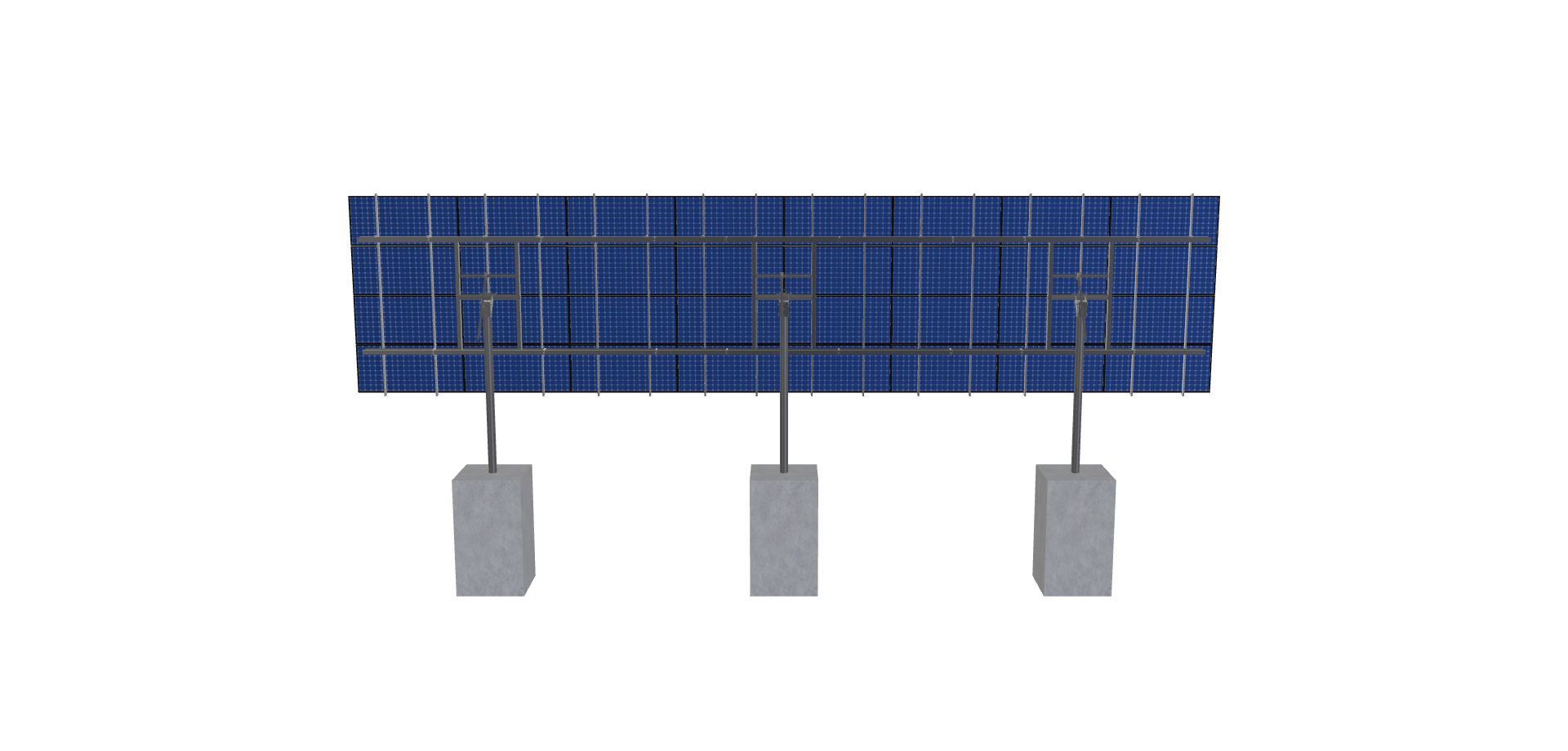

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.8 inches by 40.7 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Mason
$12,513.85
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.8 inches by 40.7 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2253.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-SD-57-L-4HX8W-FI7I |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.87 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 90.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 803.86 |
| ARRAY WIDTH | 58.53 |
| ARRAY HEIGHT | 13.73 |
| RAIL LENGTH | 164.80 |
| MODULE LENGTH | 86.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 18.65 |
| PROJECTED PANEL HEIGHT | 13.57 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MASON |
| SITE ADDRESS | 808, W, CEDARVILLE, RD, FREEPORT, IL, 61032, USA |
| MODULE WIDTH | 40.70 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 12513.85 |
| TOTAL WEIGHT | 2253.76 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/b7bf4d82-0022-44cc-9748-d36b1c967200.pdf |
|
| ID | 4806.00 |
| 3D Solar link |
